230
v Drum Driving Section
chap.4
Item
Master attachment
position
Master detachment
position
Shade plate
Shade plate
Set screw
Master detachment
position edge
Advances the stop position
Sets back the stop position
Master
detachment
position edge
Master
attachment
position edge
Open/close lever
Open/close lever
Open/close arm
Open/close arm
1mm
+
-
1mm
(2)

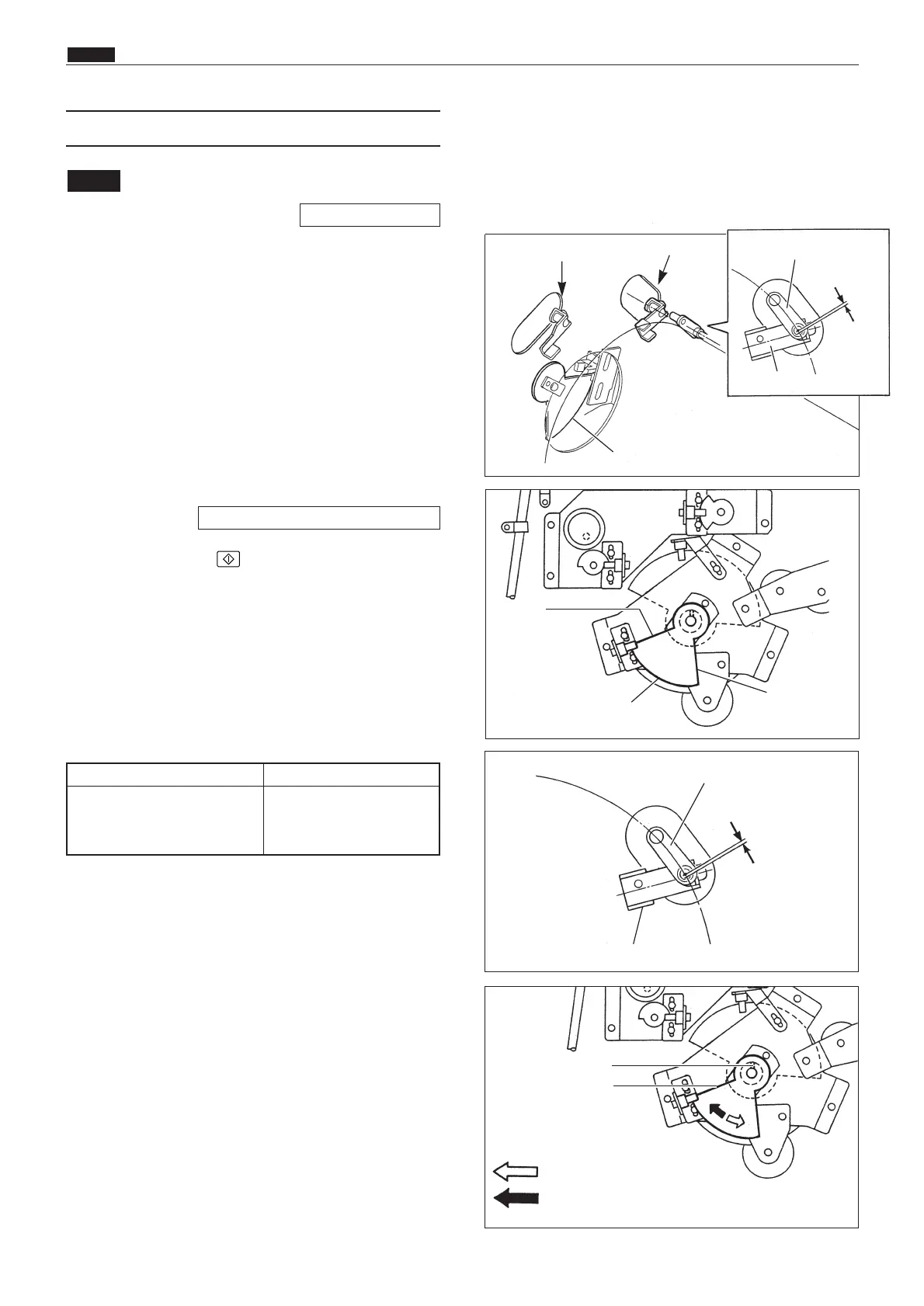

Adjusting the Master Attachment/Detachment Position
¡For description of operation.
1. Master detachment position
¡The correct position for stopping of the drum
(position for master detachment) is when the cen-
ter axis of the master clump open/close arm and
the center axis of the master clump open/close
lever are aligned in a straight line. Adjust so that
the offset of the alignment of these two center
axes is ±1mm (gauge this value visually).
Adjustment procedure
1) Access HELP mode H-09, the drum position
check mode.
2) Press the PRINT key several times, to move
the drum and stop it in the position where the
master attachment/detachment sensor senses
that the shade plate's master detachment posi-
tion edge.
3) Adjust the offset in the alignment of the center
axis of the master clump open/close arm and the
center axis of the master clump open/close lever.
NOTE
4) Loosen the set screw indicated, turn the master
attachment/detachment sensor shade plate a lit-
tle in the direction of the arrows, and provision-
ally tighten the set screw.
5) Repeat step 2), and check the center axis align-
ment offset.
6) If necessary, repeat steps 2) through 5) until the
center axis alignment offset is within ±1mm.
7) Properly tighten the set screw, and check 6)
again.
2. Master attachment position
¡Perform adjustment of master attachment posi-
tion at the same time as that of master detach-
ment position. Adjust both positions to an accura-
cy of ±1mm.
Standard value
Offset in alignment of center
axes of master clump
open/close arm and master
clump open/close lever
±1mm
\See page 131
HELP mode H-09 \ see p.307
