184
c Platemaking/Master Feed and Ejection Section
chap.3

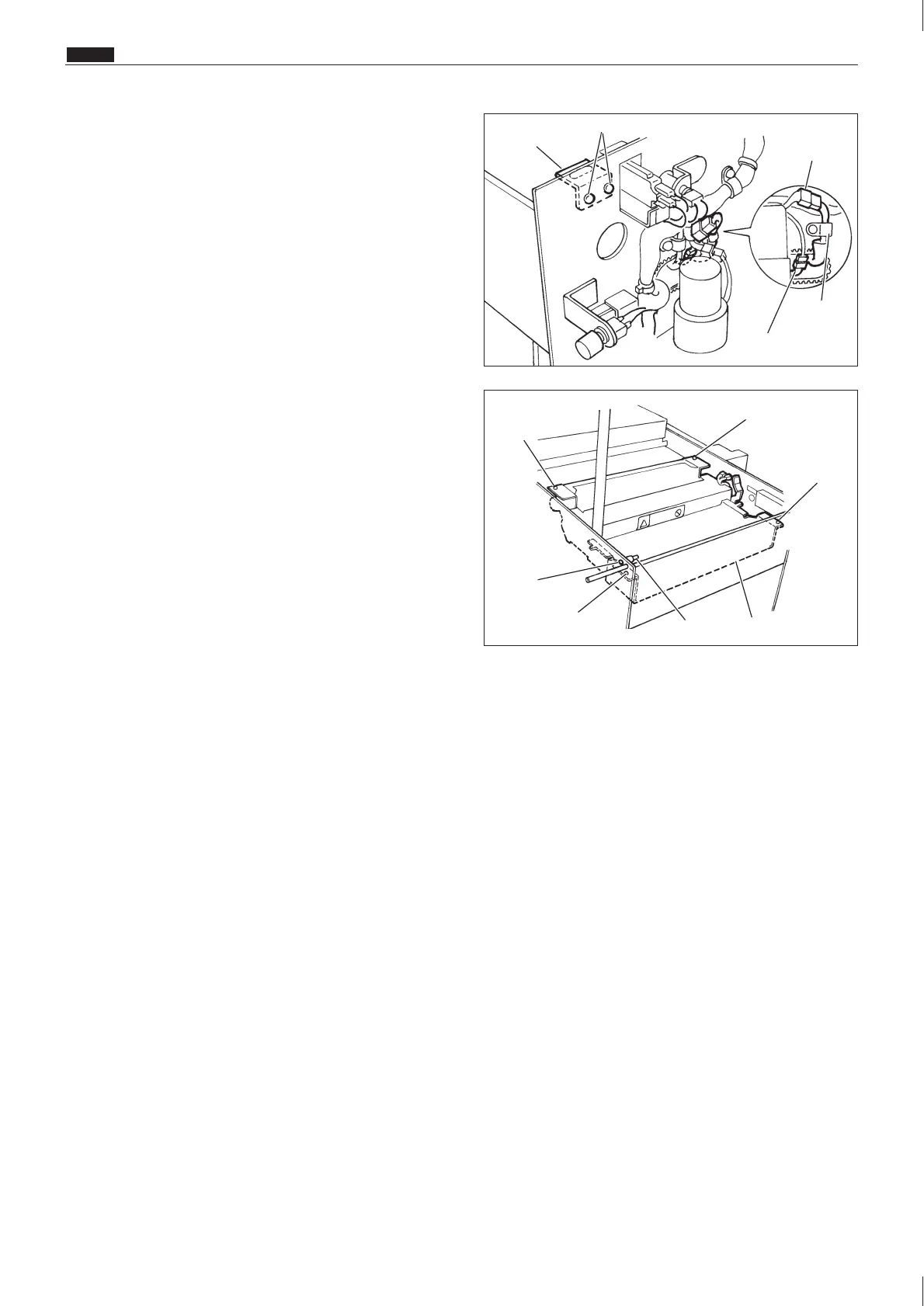

9)Remove the 2 screws from the cover, and remove
the cover.
10) Remove the 2 connectors, and remove the cord
band.
11) Remove the screw securing the spindle, and
remove the spindle.
12) Remove the 4 mounting screws from the master
feed unit, and remove the unit.
Screws
Screw
Screw
Screw
Screw
Screw
Spindle
Cover
Connector
Connector
Cord band
Master feed unit
To Next Page
