2. Replacement and adjustment of parts
26710
26710
Laser unit

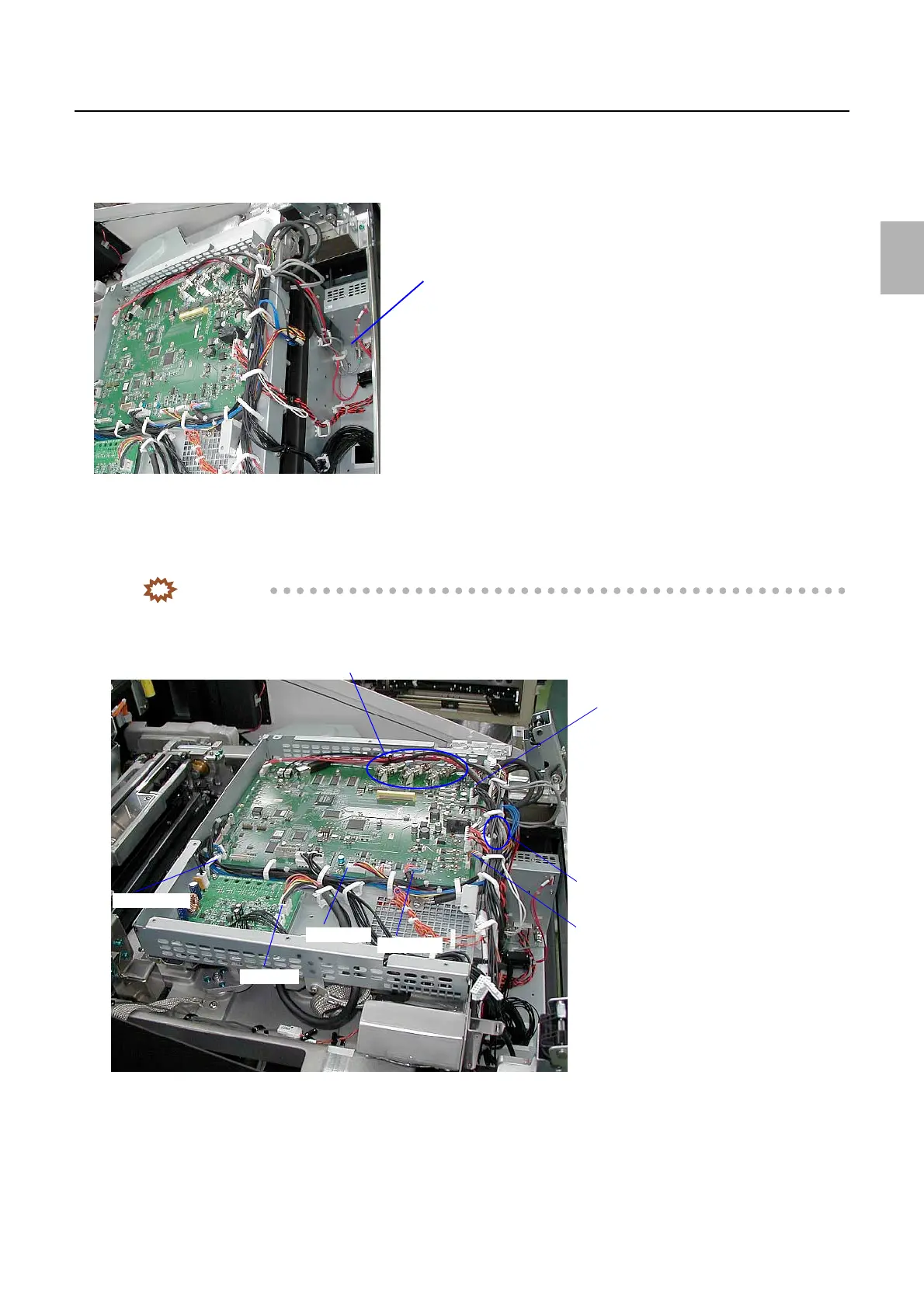

9. Disconnect the connector(s).
J/P1637 (G-AOM driver)
10. Disconnect the connector(s). (one screw)
J/P1663 (G laser driver)
J/P1501, J/P1502, J/P1503, J/P1504, J/P1505, J/P1509, J/P1515, J/P1532 (laser control PCB)
J/P1525, J/P1526 (relay connector)
IMPORTANT
• The positions of the relay connector(s) may be changed.
• Remove the cable clamp(s) if it is attached to the connector(s).
J/P1637 (G-AOM driver)
G085234
J/P1501, J/P1502, J/P1503
J/P1515
J/P1509
J/P1663
J/P1532
J/P1505
J/P1504
J/P1525, J/P1526 (relay connector)
G085237
