2. Replacement and adjustment of parts
27501-5
2/2
27501-5

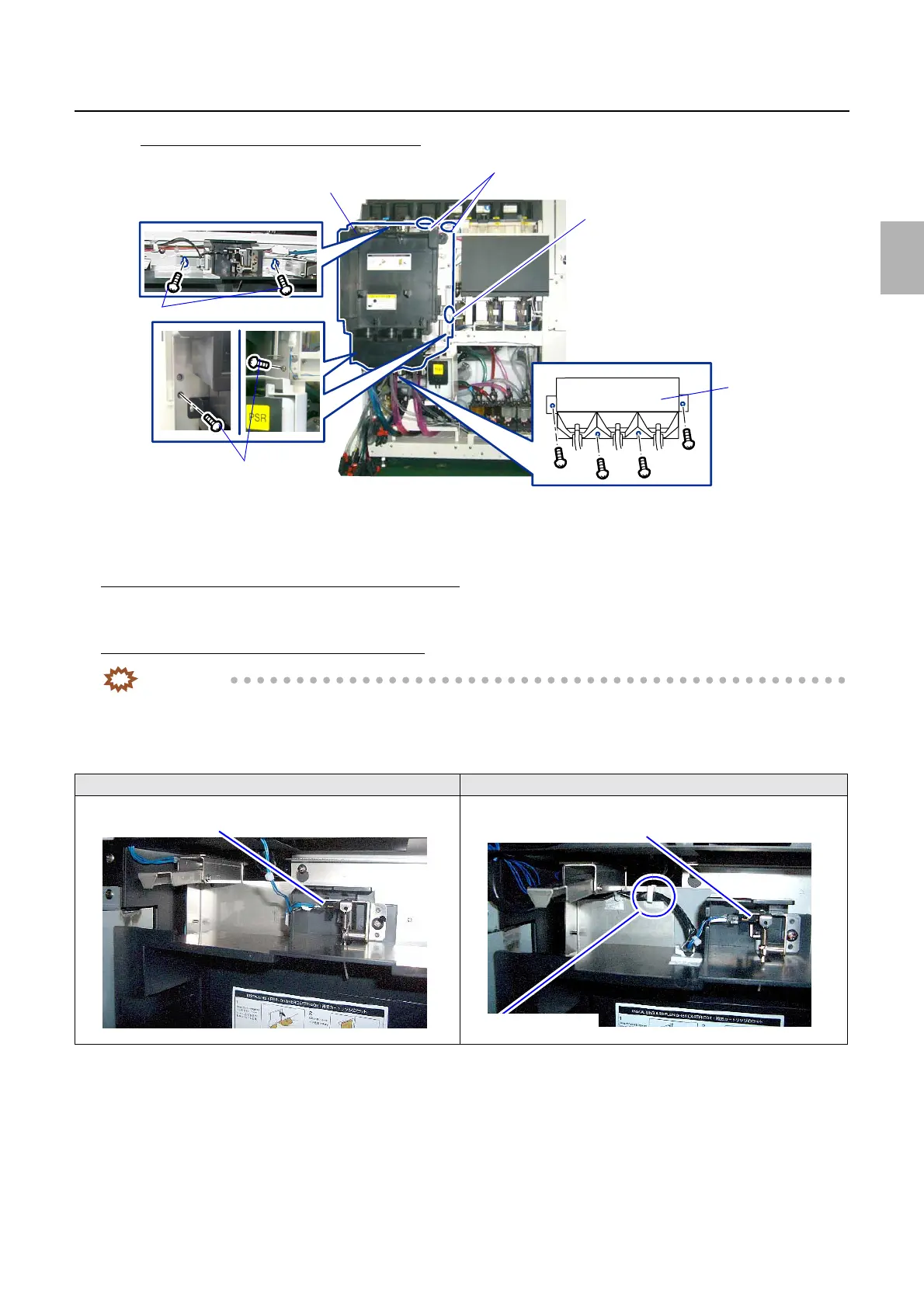

F replenishment unit [F]
If removing the F replenishment unit only
!
!!
! Adjustment after replacement
When the original F replenishment unit is reattached
1. Confirm that the F replenishment unit works normally using the output check.
When the new F replenishment unit is attached
IMPORTANT
• There are two types of F replenishment unit: one has no clamp and the other has a clamp.
• If the F replenishment unit with no clamp is to be replaced with the F replenishment unit with a clamp, be sure to
remove the clamp.
If the clamp is not removed, the F replenishment unit is not normally installed.
1. Confirm that the F replenishment unit works normally using the output check.
F replenishment unit with no clamp F replenishment unit with a clamp
J/P632, J/P637
J/P639
F replenishment unit
Replenisher section
lower part of the F
replenishment unit
Loosen these screws.
Remove these screws.
G085401
Cartridge set sensor
Clamp
Cartridge set sensor
