F replenishment unit [F]
1/2
2. Replacement and adjustment of parts
27501-5
27501-5

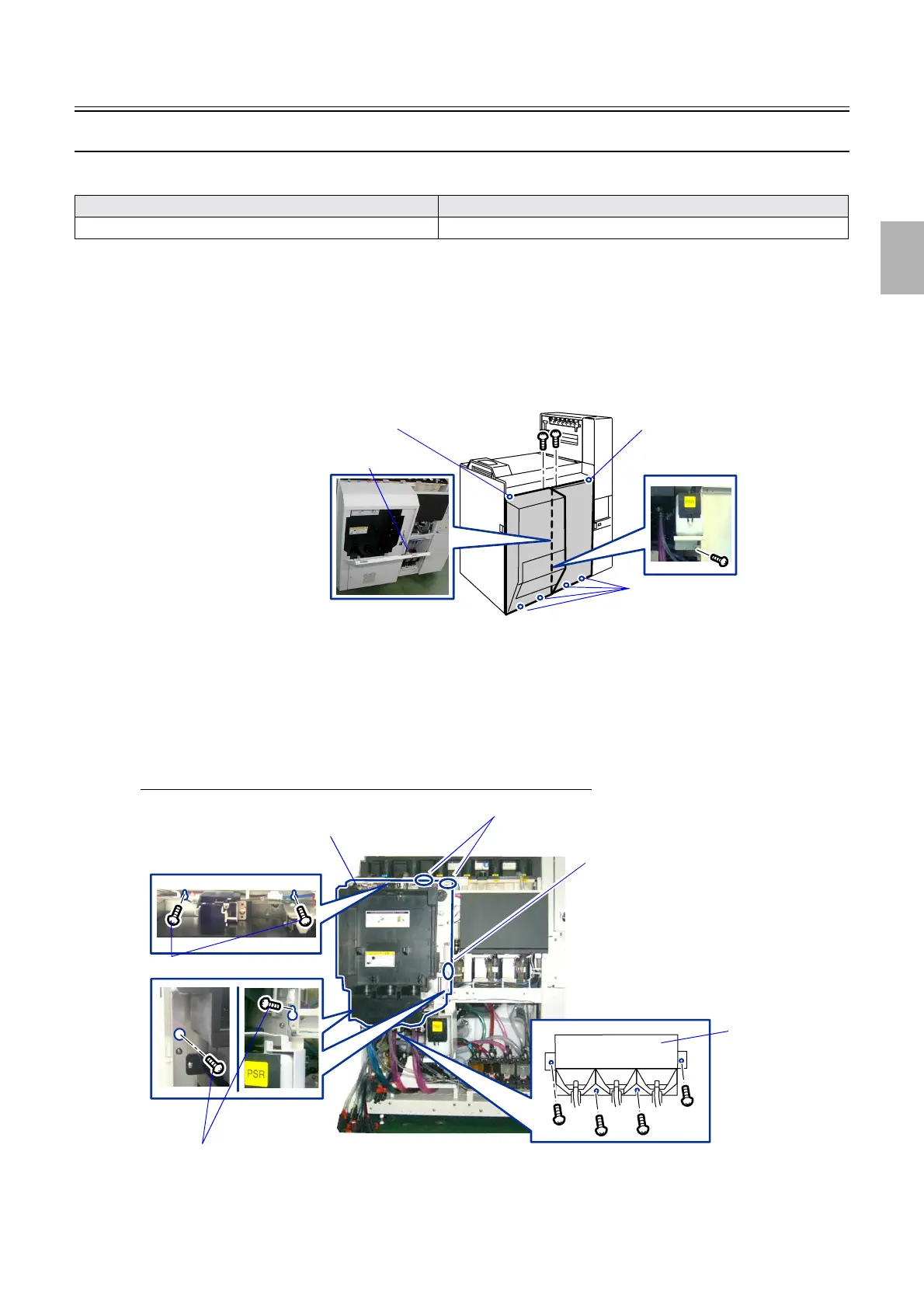

Removing F replenishment unit (QSS-3704/3705/LP7700/LP7900) [F]
This item varies depending on the model. See the references below.
!
!!
! Procedure
1. Remove the replenisher cartridge.
2. Remove processor cover 1. (four screws)
3. Remove the bar which supports the replenisher section door, then remove the replenisher section
cover. (five screws)
4. Disconnect the connector(s).
J/P632: Replenishment cartridge opening motor
J/P637: Relay connector
J/P639: Interlock Switch (Replenisher Section Door)
5. Remove the replenisher section lower part from the F replenishment unit. (four screws)
6. Remove the F replenishment unit. (four screws)
If removing the F replenishment unit with the base frame attached
Model Reference
QSS-3701/3702/3703/LP7500/LP7600
☞27500
Loosen this screw.
Loosen this screw.
Loosen these screws.
Bar
G085400
J/P632, J/P637
J/P639
F replenishment unit
Replenisher section
lower part of the F
replenishment unit
Loosen these screws.
Loosen these screws.
G085402
