2. Replacement and adjustment of parts
22000
22000
Magazine section

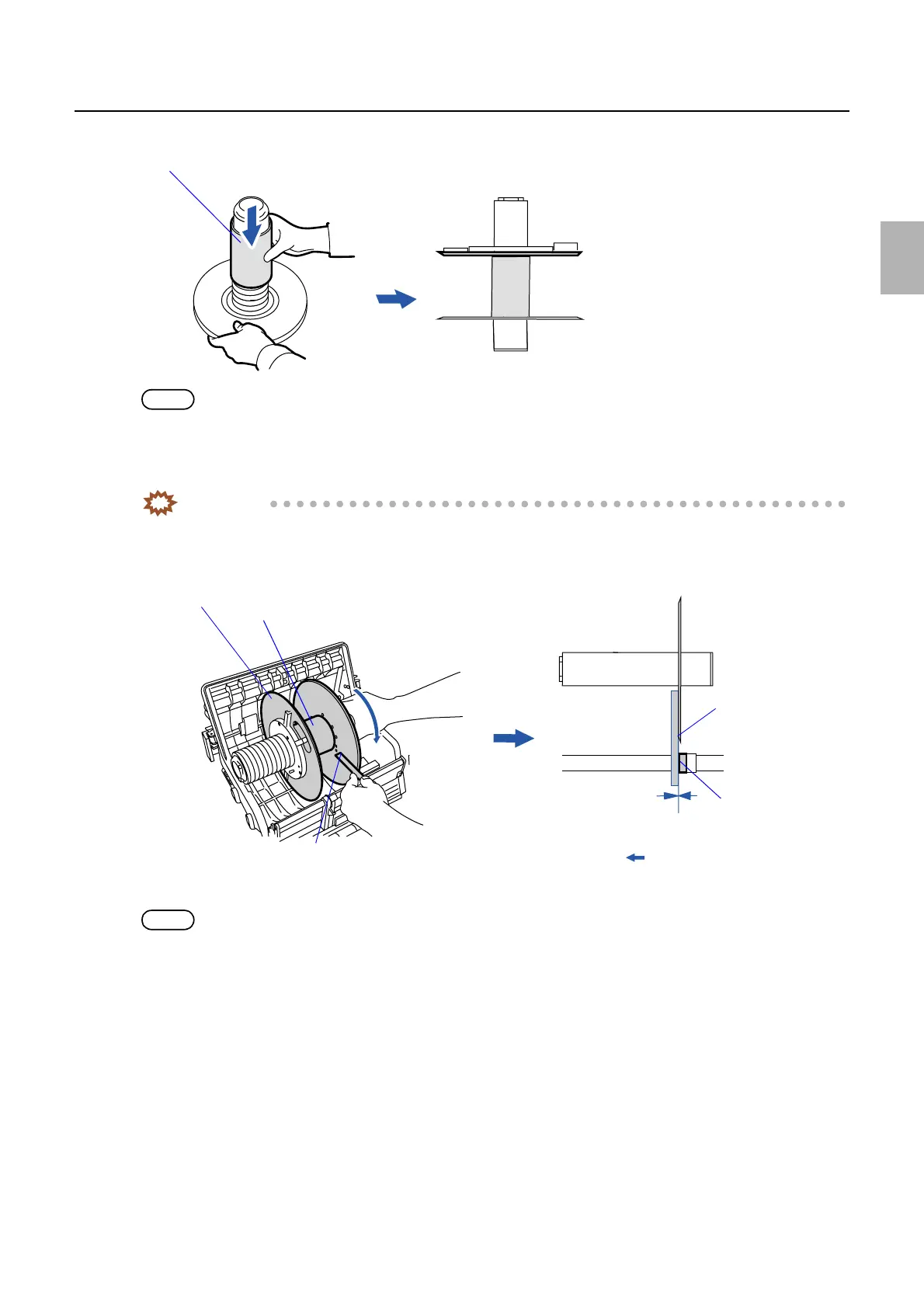

4. Set the paper tube onto the spindle.
NOTE
• Use the paper tube that corresponds to the paper width that is set to the paper magazine.
5. Set the spindle to the paper magazine.
6. Check that the deformation of the magazine reel plate is within 0.3 mm inside from the paper guide.
IMPORTANT
• Put a ruler against the reel plate and turn the spindle to check the deformation of the reel plate.
• When the deflection of paper magazine reel plate is 0.3 mm or more, check the condition of the reel plate and
nut plate. See Step 7.
7. Check the condition of reel plate and nut plate.
NOTE
• Do not loosen or tighten the screws at the side with the dents since they are fixed.
Paper tube
G072371
Paper tube
Ruler
Reel plate
Ruler
0.3 mm
Paper guide face
Inside
G072370
