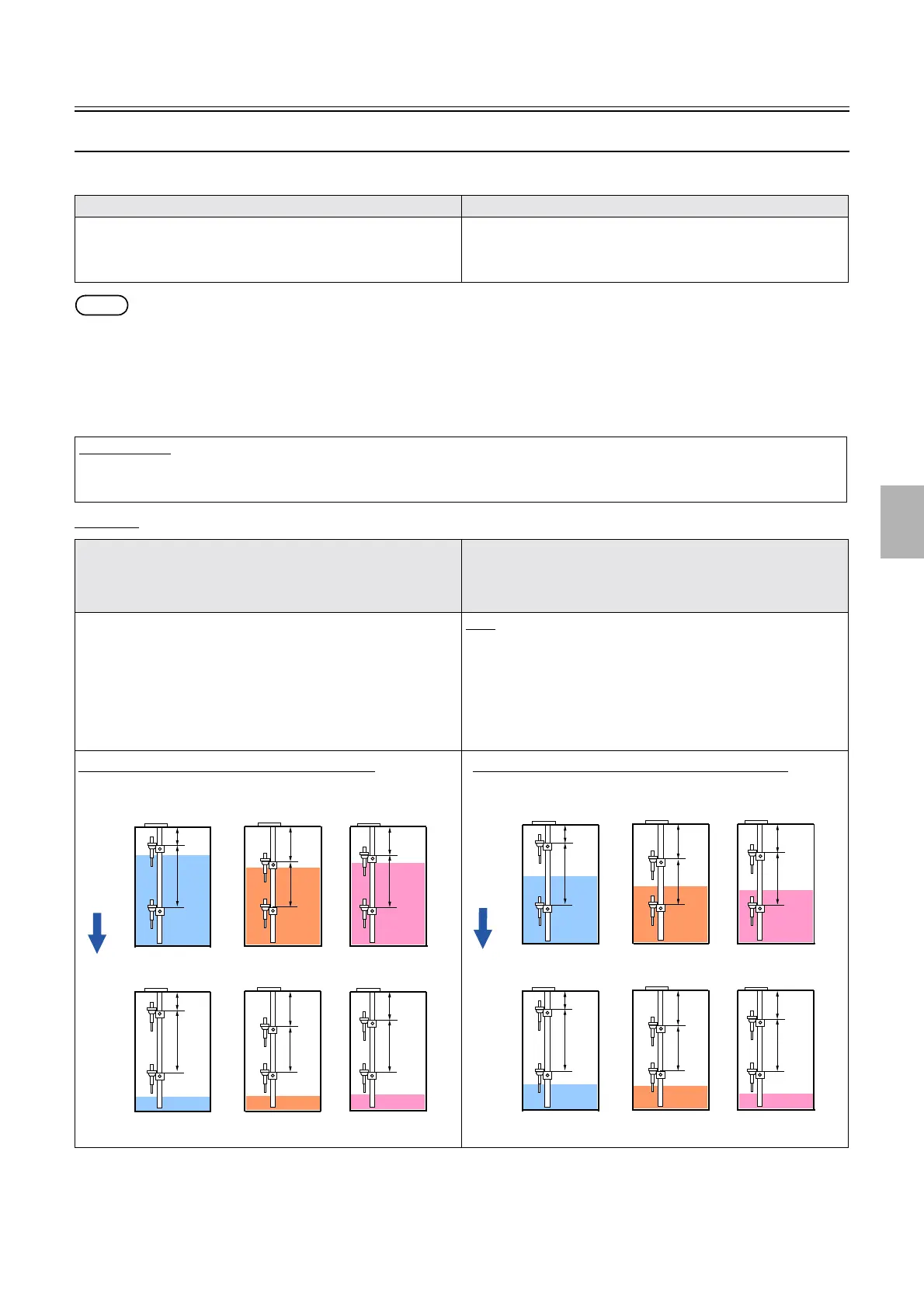

Replenishment operation sequence [F]
1/2
5. Operation sequence
57020
57020
Replenishment operation sequence [F]
• Only for F specification, the error message may be shown when both condition 1 and 2 are fulfilled.
NOTE
• The error occurs if both condition 1 and 2 are fulfilled, because the number of replenishment pump revolution is stored in the
processor control PCB.
• When initializing a data or replacing the processor control PCB, the number of pump revolution stored in the processor control PCB is
initialized.
• The number of pump revolution is not backed up in Reading and Writing Data. Therefore, the error may occur only when both
condition 1 and 2 are fulfilled.
Example:
Condition 1 Condition 2
• When the remaining amount of P1R replenishment solution is
3034.8 or less, or the remaining amount of P2RA/P2RB
replenishment solutions are 1168.8 or less.
1. The processor control PCB is replaced.
2. A data is initialized.
3.
☞No. 05538 Backup data error. Processor occurs.
Countermeasure
1. Drain all replenishment solution in the replenishment tank (P1R/P2RA/P2RB). ☞27550
2. Carry out Mixing Replenisher in F: Functions of Pump Output Amount Setting.
• When the remaining amount of P1R replenishment solution is
3034.9 ml to 3756 ml or more, or the remaining amount of
P2RA/P2RB replenishment solution is 1168.9 ml to 1461 ml
or more.
• When the remaining amount of P1R replenishment solution is
3034.8 or less, or the remaining amount of P2RA/P2RB
replenishment solutions are 1168.8 or less.
• The mixing replenisher is correctly completed. Error
• ☞No. 05905[F]−00002 P1R replenishment solution output
amount/replenishment solution level management is abnormal.
•
☞No. 05906[F]−00002 P2RA replenishment solution output
amount/replenishment solution level management is abnormal.
•
☞No. 05907[F]−00002 P2RA replenishment solution output
amount/replenishment solution level management is abnormal.
SE66
SE65
SE64
SE63
3756ml
12mm
77.2mm
P1R
1461ml
22.4mm
65.9mm
P2RA
SE68
SE67
SE66
SE65
SE64
SE63
12mm
77.2mm
P1R
22.4mm
65.9mm
P2RA
SE68
SE67
18.7mm
65.9mm
P2RB
1461ml
18.7mm
65.9mm
P2RB
T
he replenisher tank when the condition 2 occurs.
Example 1: If the mixing replenisher is correctly completed
The replenisher tank when the replenishment solution runs out
SE66
SE65
SE64
SE63
3000ml
12mm
77.2mm
P1R
1000ml
22.4mm
65.9mm
P2RA
SE68
SE67
SE66
SE65
SE64
SE63
12mm
77.2mm
P1R
22.4mm
65.9mm
P2RA
SE68
SE67
18.7mm
65.9mm
P2RB
1000ml
18.7mm
65.9mm
P2RB
Example 2: If the mixing replenisher is not correctly completed
The replenisher tank when the condition 1 or 2 occurs.
The replenisher tank when the replenishment solution runs out
