6. Electrical parts
63311
63311

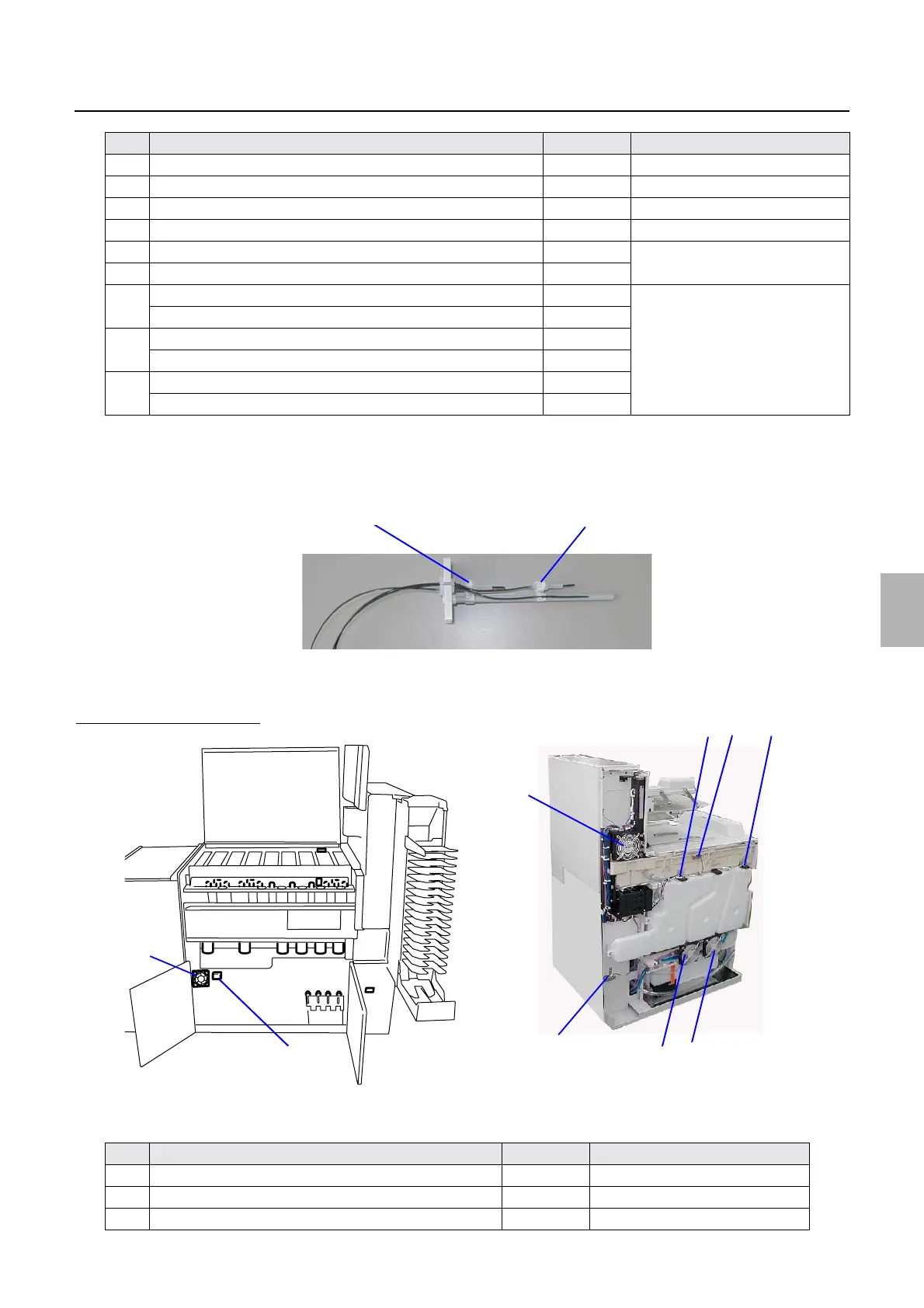

Positions of electrical parts (Processor section)
*1. For details about processor section fan operation specification, see ☞63321.
*2. After replacing each electrical part, see Processor section (List of adjustment after electrical parts replacement)
☞63312.
*3. For details about # # # replenishment solution level sensors, see the following image.
For replacing the replenishment solution level sensor, see
☞27530.
!
!!
! Layout diagram
Processor section (back face)
44 Replenisher cartridge cleaning pump P17
45 PSR (Upper) Replenishment Solution Level Sensor LSE7
46 PSR (Lower) Replenishment Solution Level Sensor LSE8
47 Interlock Switch (Replenisher Section Door) LS8
48 Replenisher Cartridge Position Sensor (Upper) SE61
*2
49 Replenisher Cartridge Position Sensor (Lower) SE62
50 P1R (Upper) Replenishment Solution Level Sensor SE63
*2*3
P1R (Lower) Replenishment Solution Level Sensor SE64
51 P2RA (Upper) Replenishment Solution Level Sensor SE65
P2RA (Lower) Replenishment Solution Level Sensor SE66
52 P2RB (Upper) Replenishment Solution Level Sensor SE67
P2RB (Lower) Replenishment Solution Level Sensor SE68
No. Name Symbol Remarks
1 Tank cooling fan 1 FAN10 Intake
*1
2 CD digital flowmeter FLS1 Option
3 Temperature and humidity sensor SE69
No. Name Symbol Remarks
# # #(Lower) replenishment solution level sensor
# # #(Upper) replenishment solution level sensor
G085370
1
3
2
4
5
6
8
7
9
QSS-3704/3705/LP7700/LP7900 [F]
G085380
