FSC A320 - ATA CHAPTER Tab; ALPHABETICAL (a - Z) Tab

A320 Neo Instructor Operating Station
Instructor User Guide
AIRCRAFT Tab
13 Oct 2017
Page 88

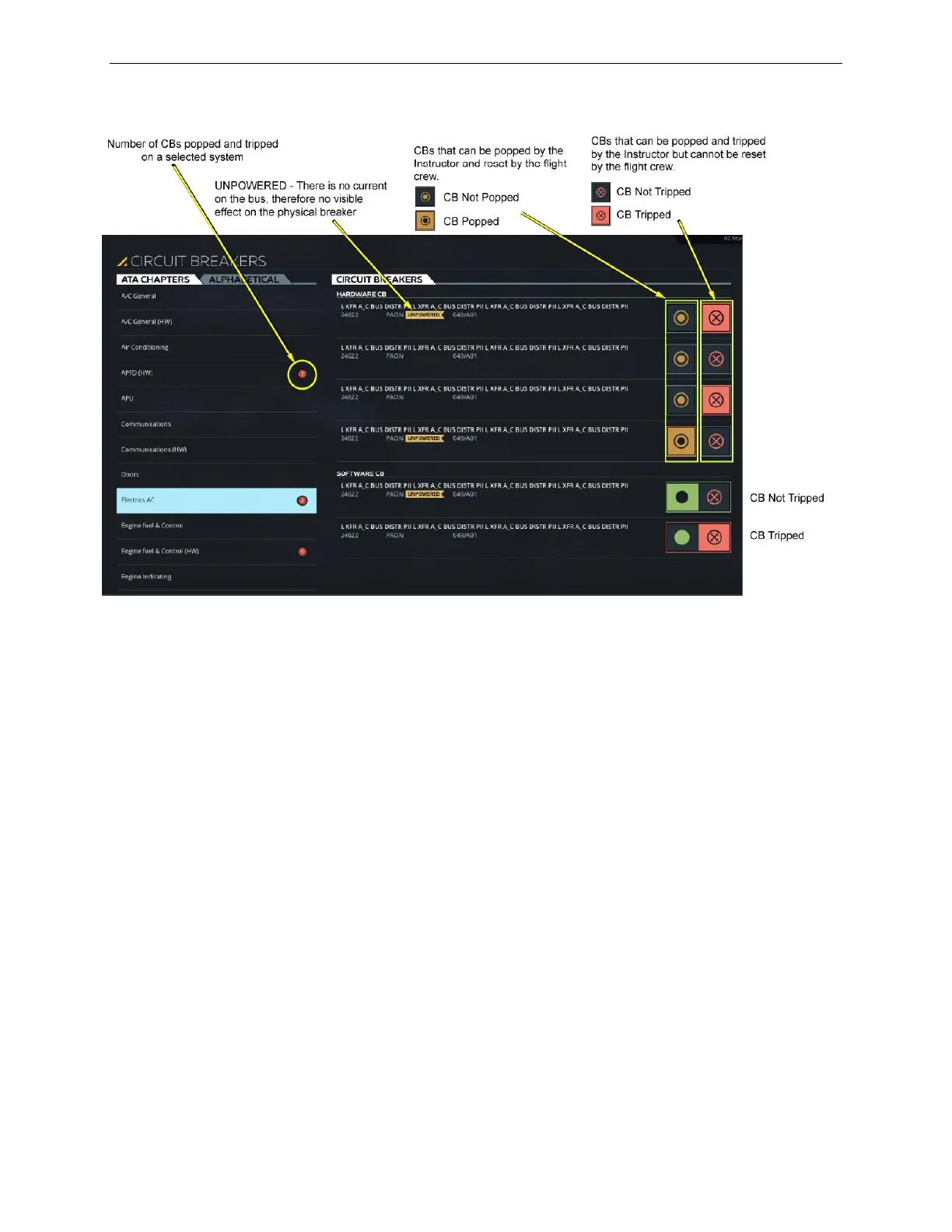

Figure 49 Circuit Breakers - Definitions
8.13.1 ATA CHAPTER Tab
The ATA CHAPTER tab provides a list of aircraft systems sorted by the ATA
Chapter number. The instructor can then, from this tab view all available Circuit
Breakers (CBs) on the IOS on a per system basis.
A red badge displayed next to a system indicates the number of circuit breakers that
are tripped/popped on that system.
8.13.2 ALPHABETICAL (A - Z) Tab
The ALPHABETICAL (A - Z) tab provides a list of aircraft systems sorted
alphabetically. The instructor can then, from this tab view all available Circuit
Breakers (CBs) on the IOS on a per system basis.
A red badge displayed next to a system indicates the number of circuit breakers that
are tripped/popped on that system.
