A320 Neo Instructor Operating Station
Instructor User Guide
REFERENCE AIRPORT Tab
13 Oct 2017
Page 128
9.5.2 WIND COMPASS Tab
The WIND COMPASS tab features a wind compass indicator that provides a quick
overall status of the runway wind condition.
This wind compass indicator consists of a runway and vectors with associated labels
representing the current surface wind speed and direction.
The wind speed is represented by the length of the wind vector and the wind direction
is represented by the direction of the vector.
The wind compass indicator is interactive as it allows the instructor to quickly adjust
the wind direction by touching the vector arrow and moving it slowly on the wind
compass.

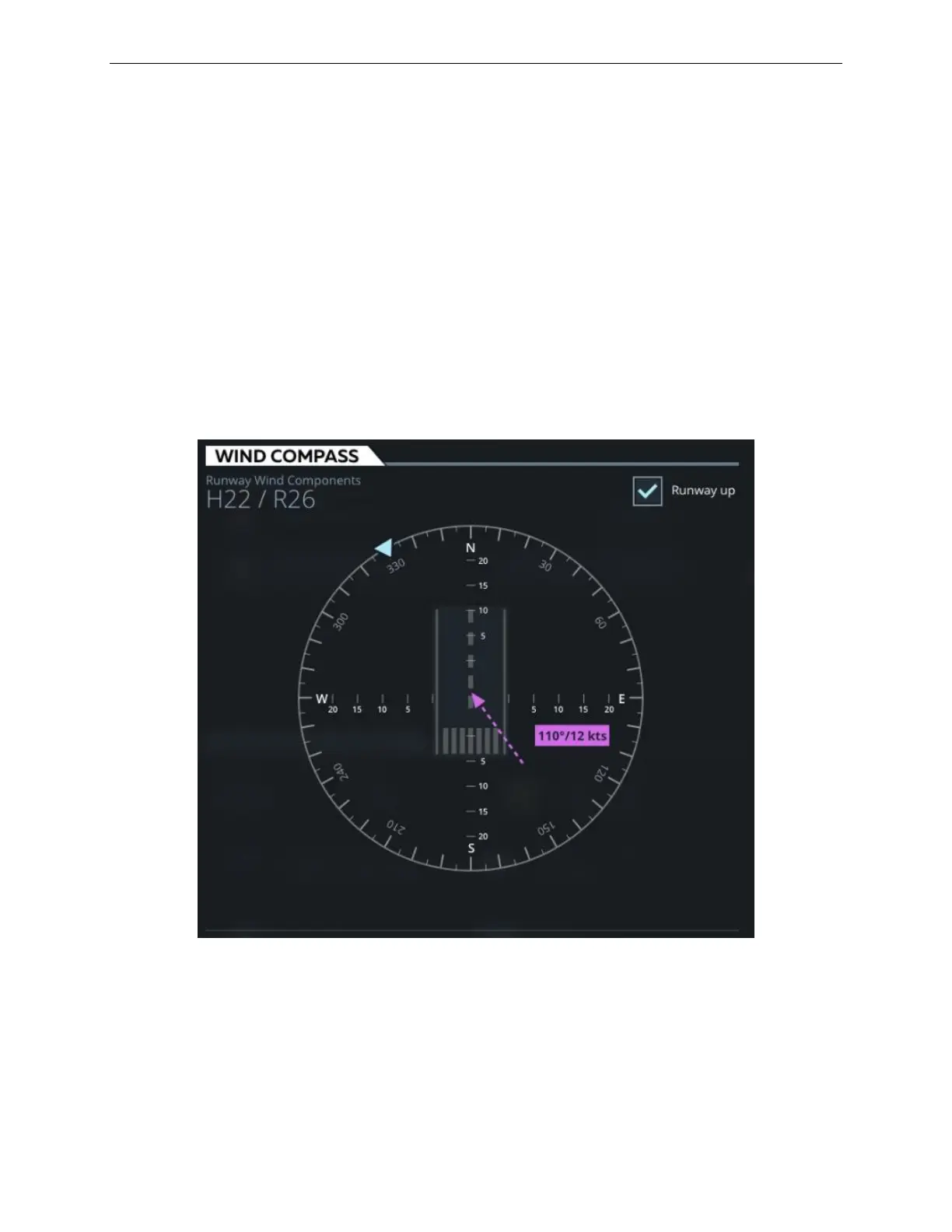

Figure 68 WIND COMPASS Tab
