FSC A320 - Takeoff

A320 Neo Instructor Operating Station
Instructor User Guide
Map Workspace
13 Oct 2017
Page 226
15.4.1.2.3 Takeoff
The Takeoff graphs allow the instructor to evaluate and assess the performance of the
flight crew by monitoring the actual position of the aircraft on three Takeoff graphs:
• Height Above Terrain (HAT) vs Distance to Takeoff
• Center Line Deviation
• Speed Deviation

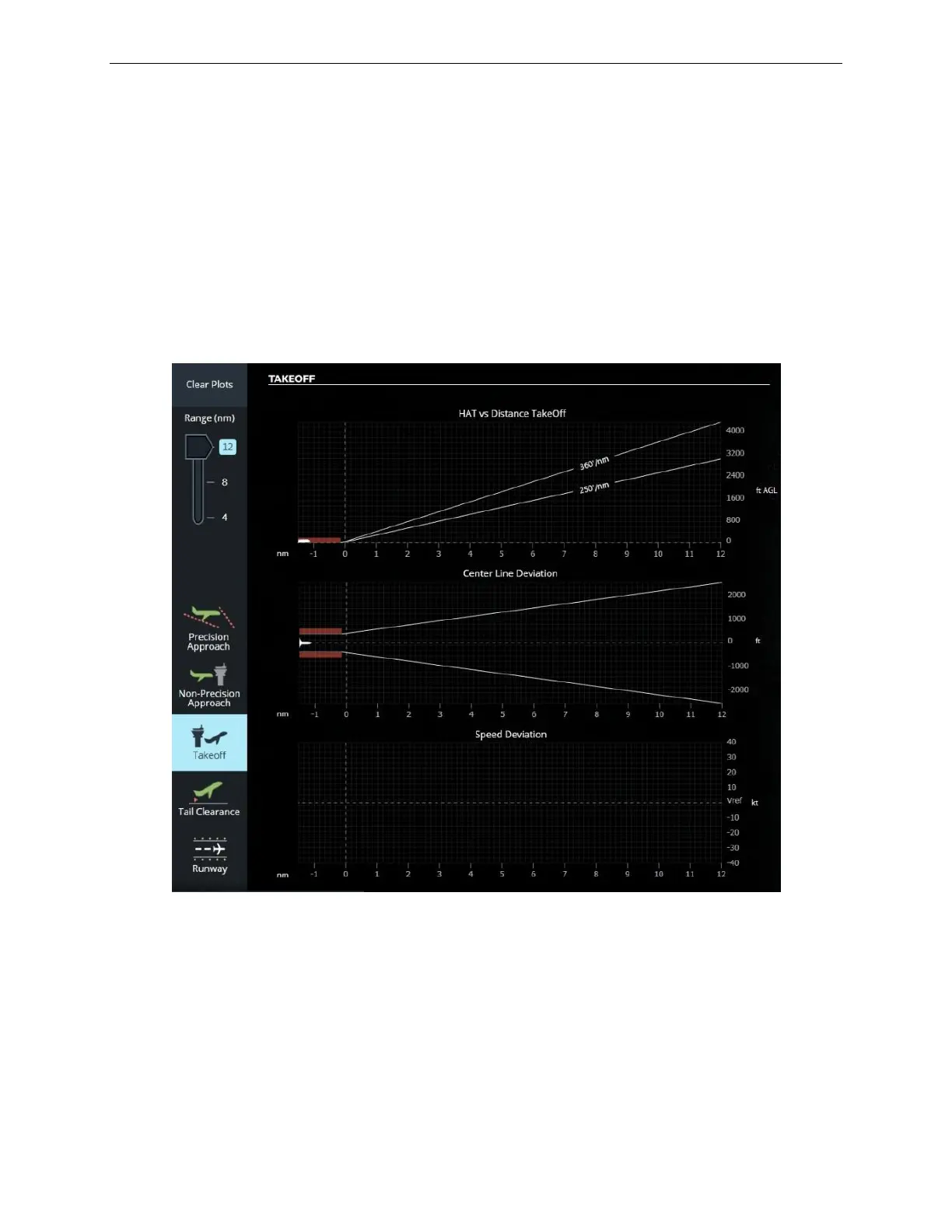

Figure 134 Takeoff Graphs (Typical)
