A320 Neo Instructor Operating Station
Instructor User Guide
REFERENCE AIRPORT Tab
13 Oct 2017
Page 146
9.13.2 PREDICTIVE WINDSHEAR Tab
The PREDICTIVE WINDSHEAR tab includes TAKEOFF PROFILES and
LANDING PROFILES radio buttons that allow the instructor to choose only one
windshear profile at time as radio profile buttons are mutually exclusive.
This sliding panel also offers controls to adjust certain windshear parameters.
The selected windshear profile is shown on a map to visualize the situation.

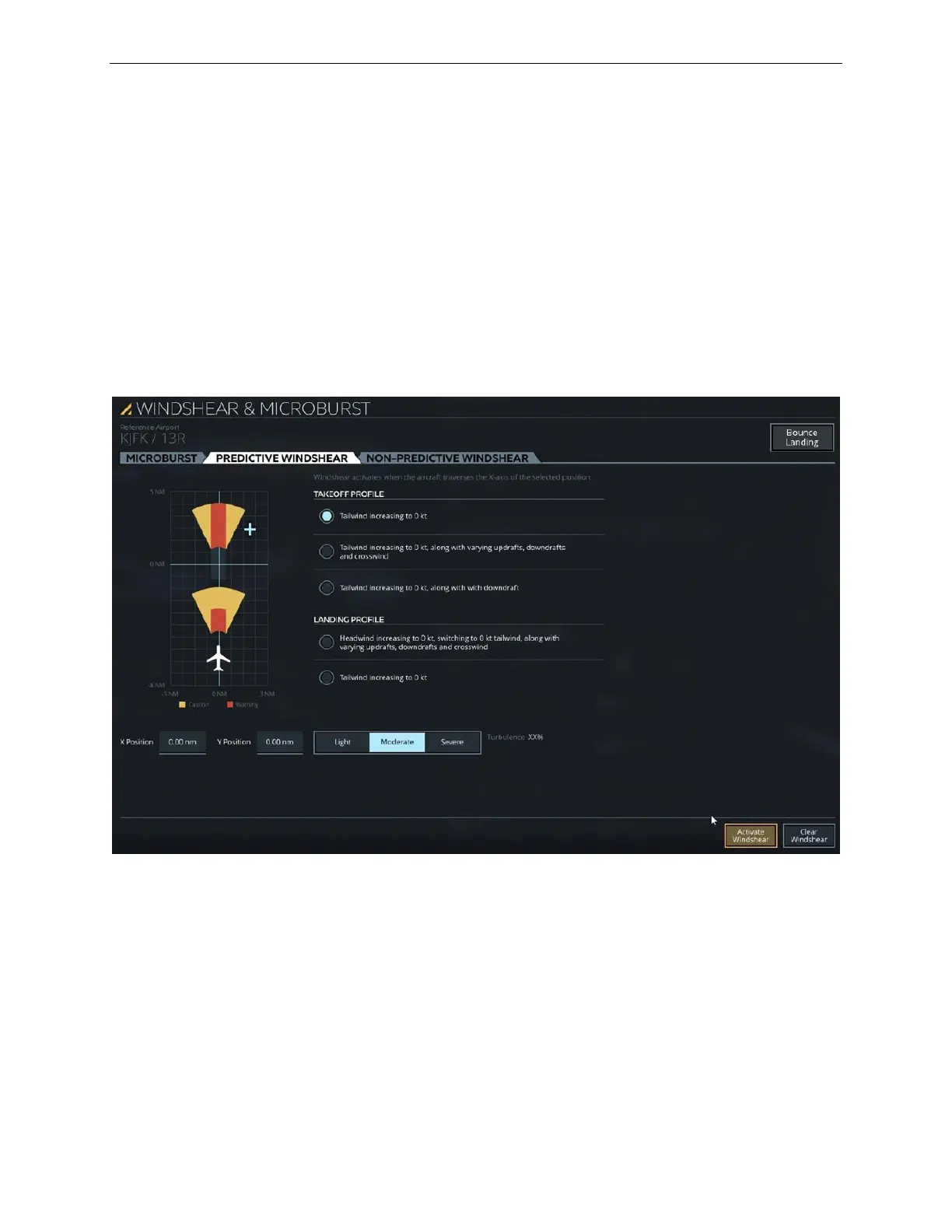

Figure 76 PREDICTIVE WINDSHEAR Tab
