15.4.1.2.5 Runway
The Runway graph allows the instructor to evaluate and assess the performance of the
flight crew by monitoring the actual position of the aircraft on the runway.

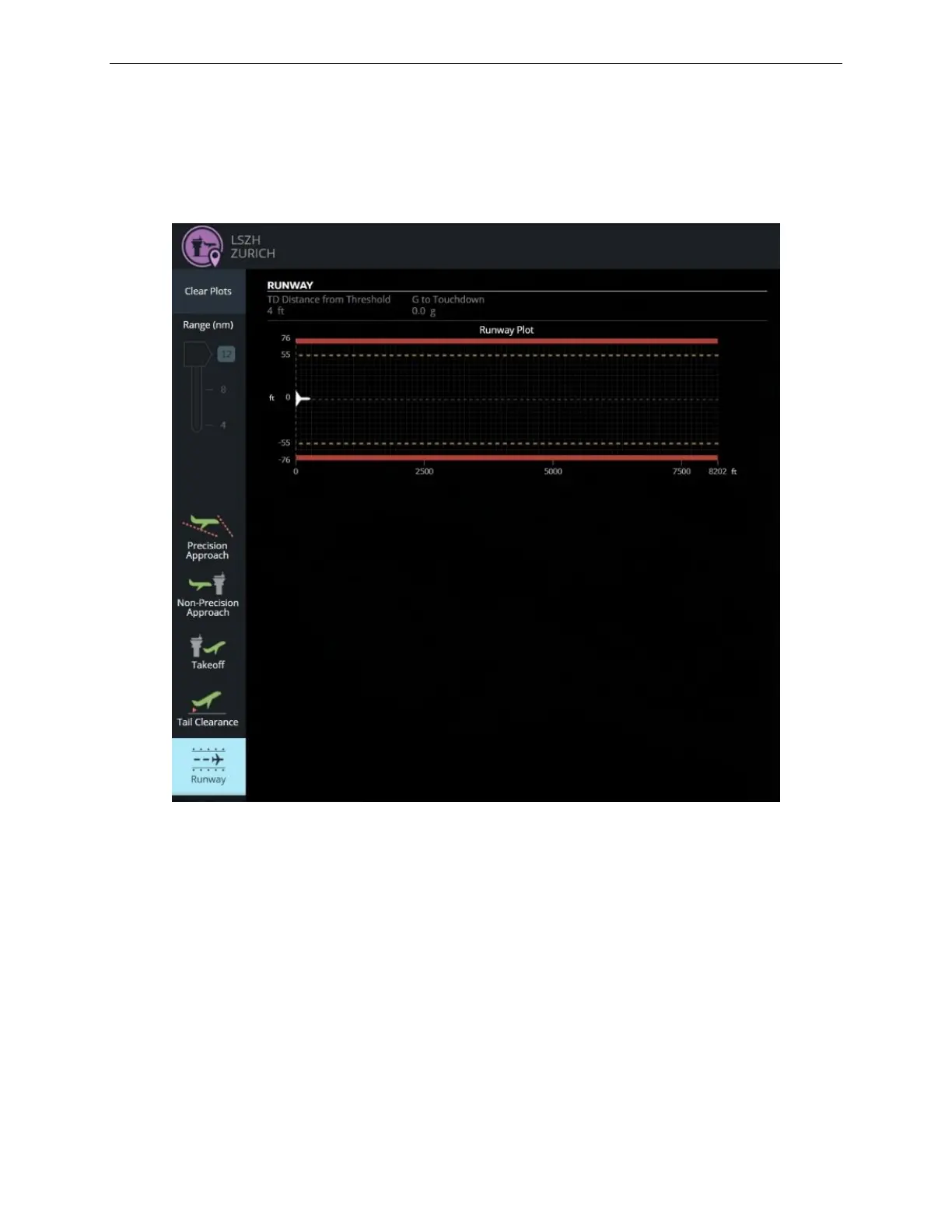

Figure 136 Runway Graph (Typical)
15.4.1.2.6 Clear Plots
Tap the Clear Plots button clears the plots on display.
15.4.1.2.7 Range (nm)
The Range (nm) slider allows the adjust the scale of the graphs.
