FSC A320 - Zoom; Auto Range; Scales

Instructor User Guide
Map Workspace
Map Workspace
13 Oct 2017
Page 217
15.3.1 Zoom +/-
Tap the + or - buttons to zoom in and out on the map.
15.3.2 Auto Range
Tap this button to ensure the aircraft and reference runway are always both visible on
the map.
15.3.3 Scales
Tap this button to display the available map scales ranging from 5nm to 350nm.
Scales allows the user to change the map range in nautical miles. The range
represents the range across the x-axis of the display in nautical miles.

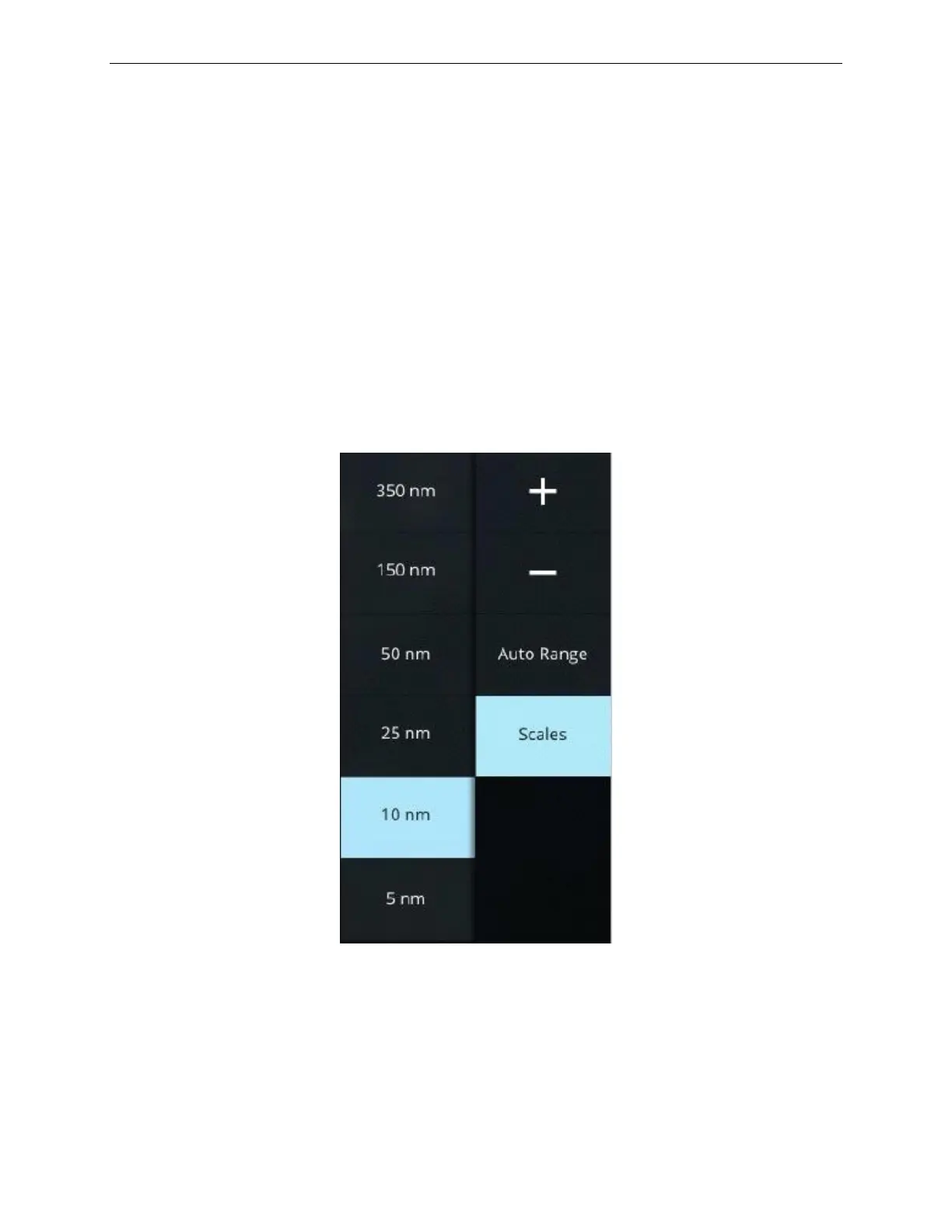

Figure 124 Scales
