228 Upgrade and Maintenance Manual RX2530 M4
Expansion cards and backup units

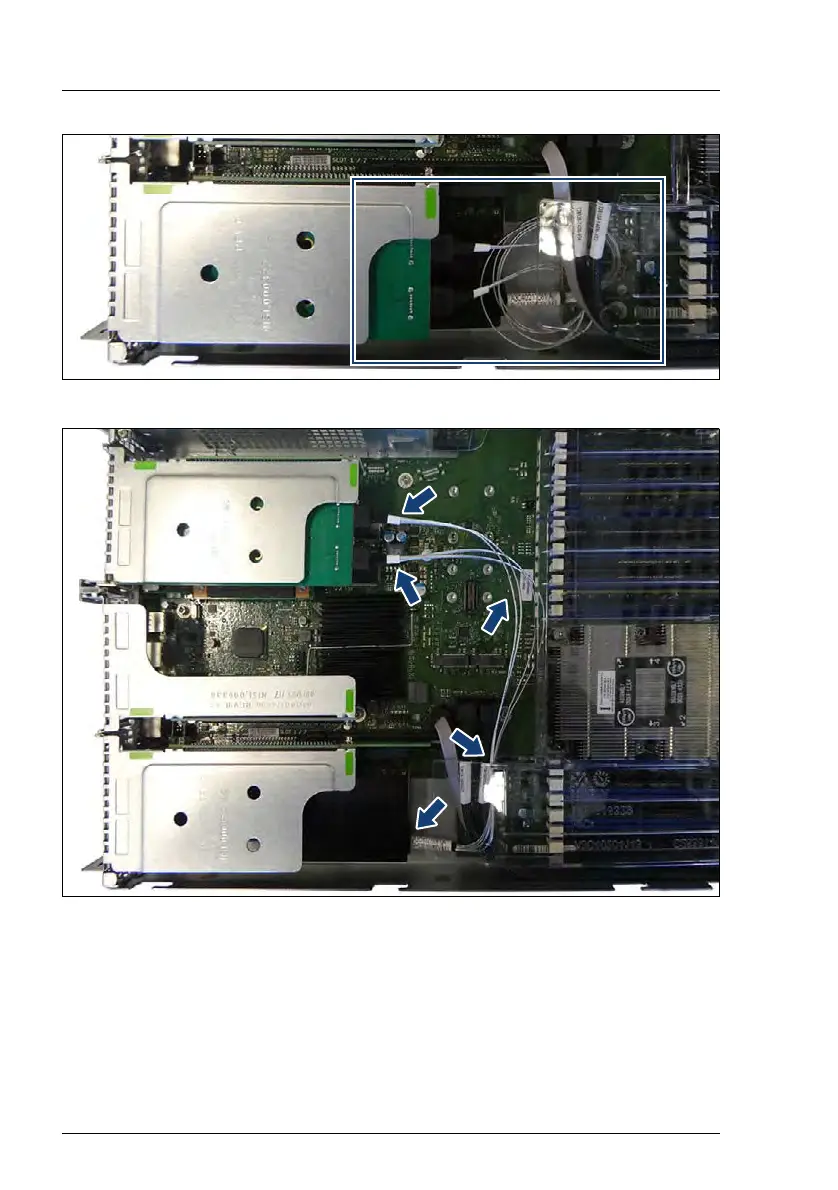

Figure 144: Example routing cables - PSAS CP400i installed in slot 1, PDUAL AP200 in slot 2
Figure 145: Example routing cables - PSAS CP400i installed in slot 1, PDUAL AP200 in slot 4
Ê Install the PSAS CP400i in slot 1.
Ê Install the PDUAL AP200 in a free slot.
I Figure 144 shows example for routing cables with PSAS CP400i
installed in slot 1 and PDUAL AP200 installed in slot 2.
Figure 145 shows example for routing cables with PSAS CP400i
installed in slot 1 and PDUAL AP200 installed in slot 4.
