190-01263-01 Rev. A
Garmin G2000 Pilot’s Guide for the Cessna T240
311
Flight ManageMent
SYSteM
OVeRVieW
Flight
inStRUMentS
eiS
aUDiO Panel
& CnS
Flight
ManageMent
haZaRD
aVOiDanCe
aFCS
aDDitiOnal
FeatUReS
aPPenDiCeS inDeX

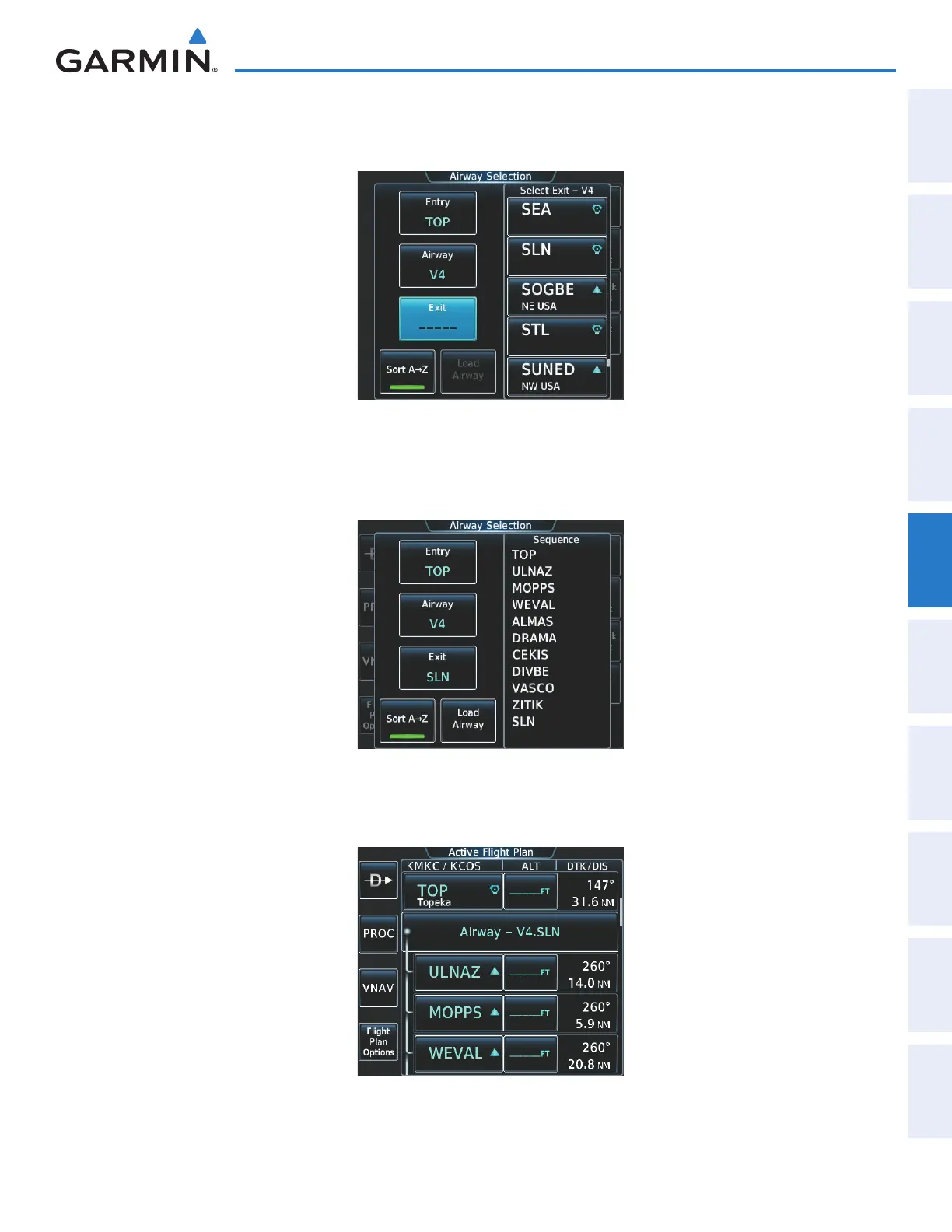

h) Touch the V4 Button to select the airway, and to display the list of available exit points for V4. Scroll the list to
find SLN (Figure 5-165).
Figure 5-165 List of Available Exits for V4
h) Touch the SLN Button to select the Salina VOR (SLN). The selected airway entry, exit, and waypoint sequence
are displayed as shown in Figure 5-166.
Figure 5-166 Ready to Load V4
i) Touch the Load Airway Button. V4 is loaded into the Active Flight Plan.
Figure 5-167 V4 Loaded
