Garmin G2000 - Page 376

Garmin G2000 Pilot’s Guide for the Cessna T240
190-01263-01 Rev. A
362
Hazard avoidance
SYSTeM
overvieW
FLiGHT
inSTrUMenTS
eiS
aUdio & cnS
FLiGHT
ManaGeMenT
Hazard
avoidance
aFcS
addiTionaL
FeaTUreS
aPPendiceSindeX

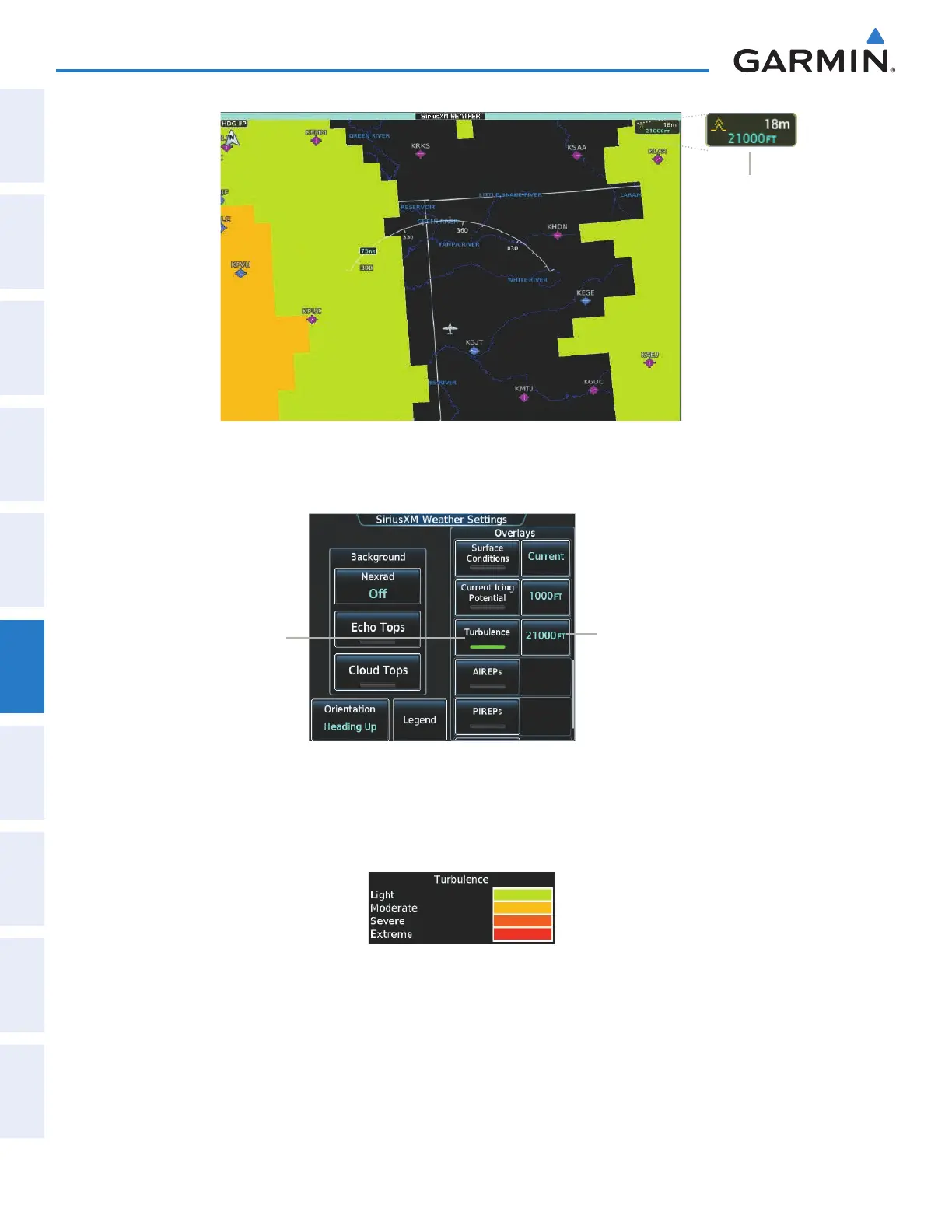

Figure 6-36 Turbulence Weather Product at 21,000 Feet
Selected
Turbulence
Altitude
SiriusXM Weather Settings Screen
Touch to Enable/
Disable Overlay
Selects Turbulence
Altitude (21,000 FT
Currently Selected)
Figure 6-37 Displaying the Turbulence Weather Products
Touch the Legend Button on the SiriusXM Weather Settings Screen to display weather legend(s) for enabled
weather product(s). Scroll as necessary to view the information, then touch Back or Home.
Figure 6-38 Turbulence Legend
