190-01263-01 Rev. A
Garmin G2000 Pilot’s Guide for the Cessna T240
383
Hazard avoidance
SYSTeM
overvieW
FLiGHT
inSTrUMenTS
eiS aUdio & cnS
FLiGHT
ManaGeMenT
Hazard
avoidance
aFcS
addiTionaL
FeaTUreS
aPPendiceS indeX
SIGMETS AND AIRMETS
SIGMETs (SIGnificant METeorological Information) and AIRMETs (AIRmen’s METeorological Information)
are issued for potentially hazardous weather. A Convective SIGMET is issued for hazardous convective
weather such as severe or widespread thunderstorms. A localized SIGMET can be displayed when significant
weather conditions are not widespread.
The entire SIGMET or AIRMET is displayed as long as any portion of it is occurs within the boundaries
defined during the weather data request.

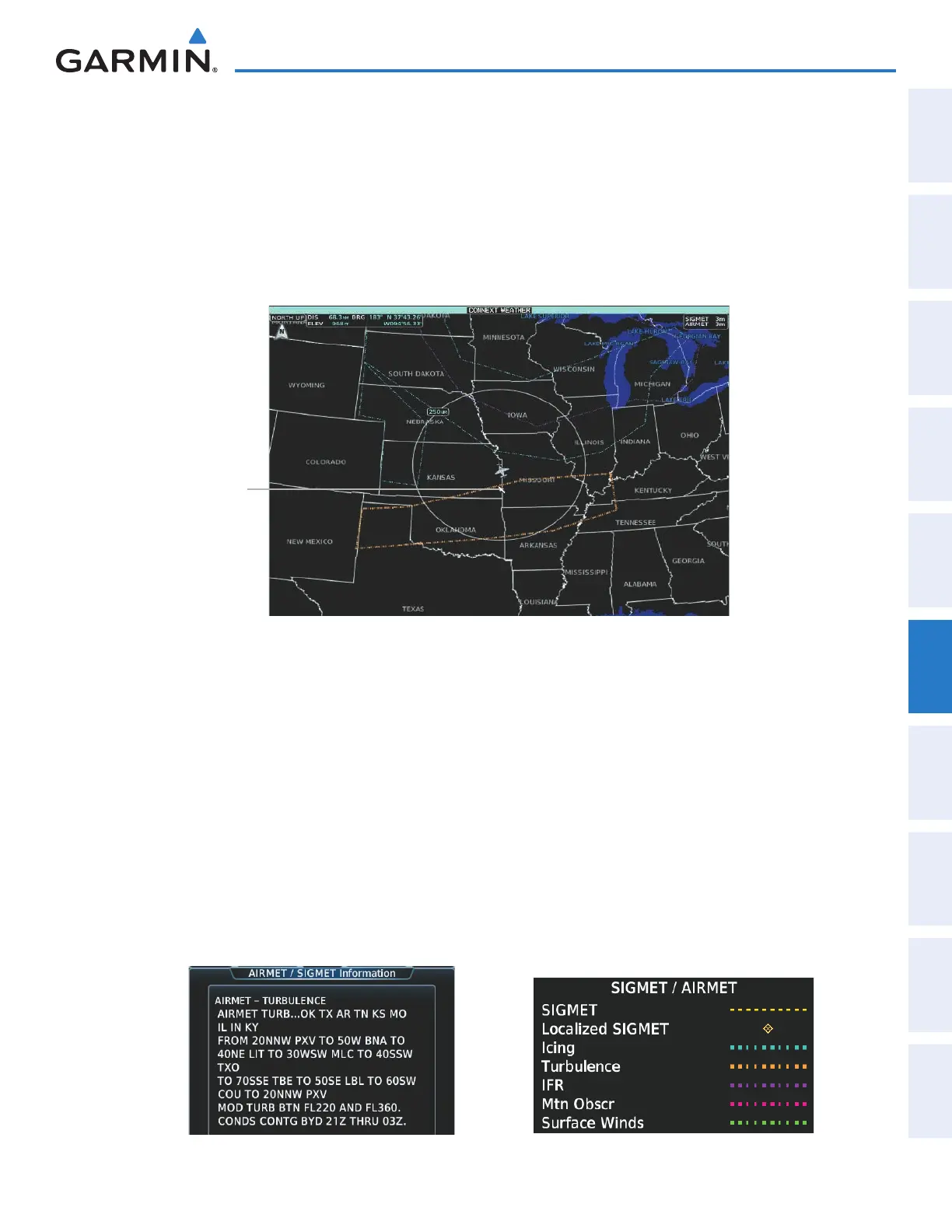

Figure 6-61 SIGMETs/AIRMETs Enabled on the Connext Weather Pane
Turbulence AIRMET
Selected with Map
Pointer
Enabling/Disabling SIGMETs and AIRMETs (Connext Weather Pane):
1) From Home, touch Weather > Weather Selection > Connext Weather > Connext Settings.
2) Scroll in the Overlays window and touch the SIGMETs and/or AIRMETs Buttons.
3) To view the text of a AIRMET or SIGMET, press the Joystick and move the map pointer with the Joystick over
the SIGMET or AIRMET border or icon until it is highlighted.
4) Touch the AIRMET/SIGMET Button to show the AIRMET / SIGMET Information Screen with the selected
AIRMET or SIGMET.
5) Scroll as needed to view full text of the report, then touch the Back or Home buttons.
To display the SIGMET / AIRMET legend (Figure 6-63), touch the Legend Button on the Connext Weather
Settings Screen when either product is enabled for display. Scroll as needed to view the legend, then touch
Back or Home.
Figure 6-62 AIRMET/SIGMET Information Screen
Figure 6-63 SIGMET/AIRMET Legend
