5-40
F650 Digital Bay Controller
GE Multilin
5.4 PROTECTION ELEMENTS
5 SETPOINTS
5
The following diag
ram shows the logic scheme fo
llowed by high
range a
nd low range time
overcurrent elements (51PH and
51PL) in the following figure.

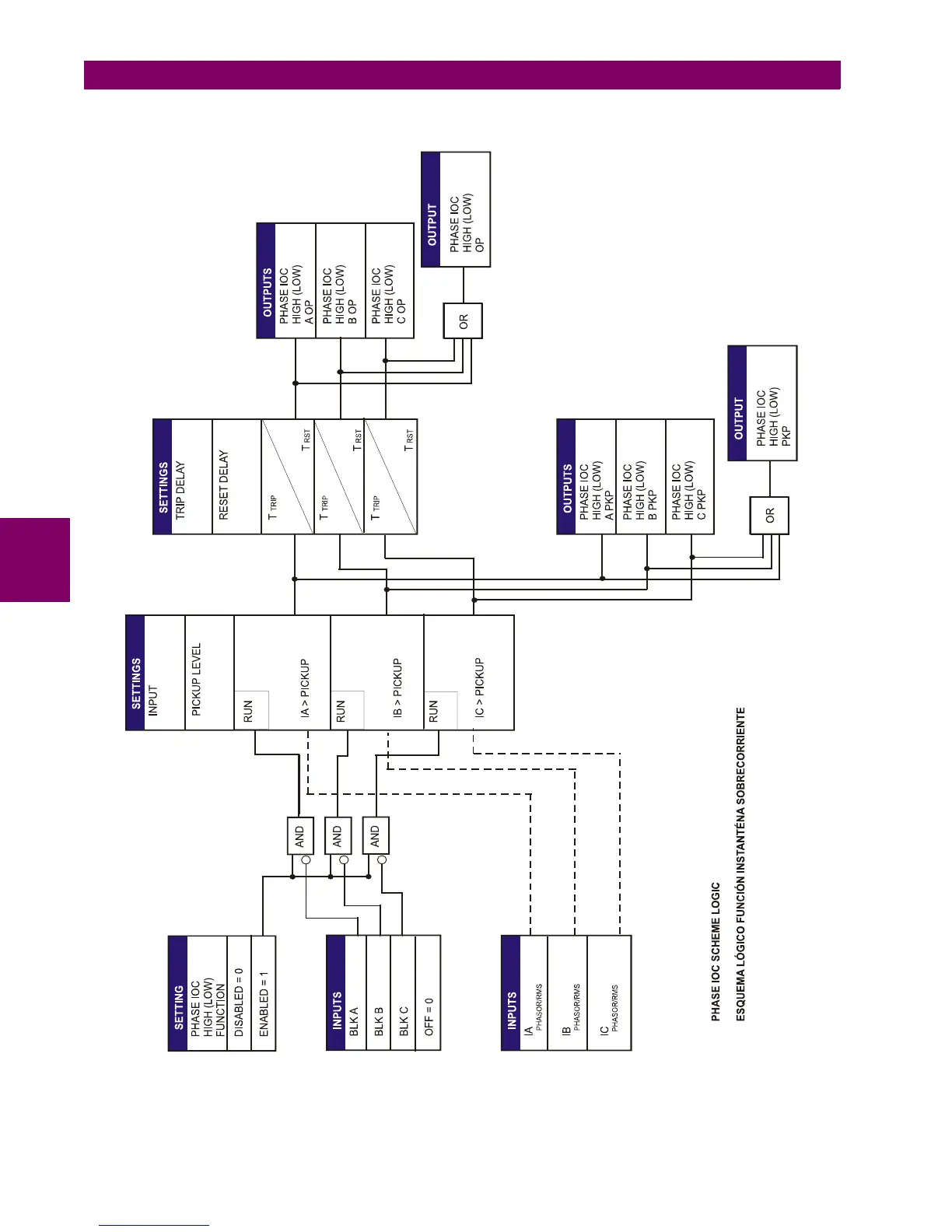

Figure 5–5: FIGURE 5-5. TO
C UNIT LOGIC SCHEME (A6632F2)
180
182
