4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
4
4.1.6.2 CONFIG FILE (*650) CONVERTER

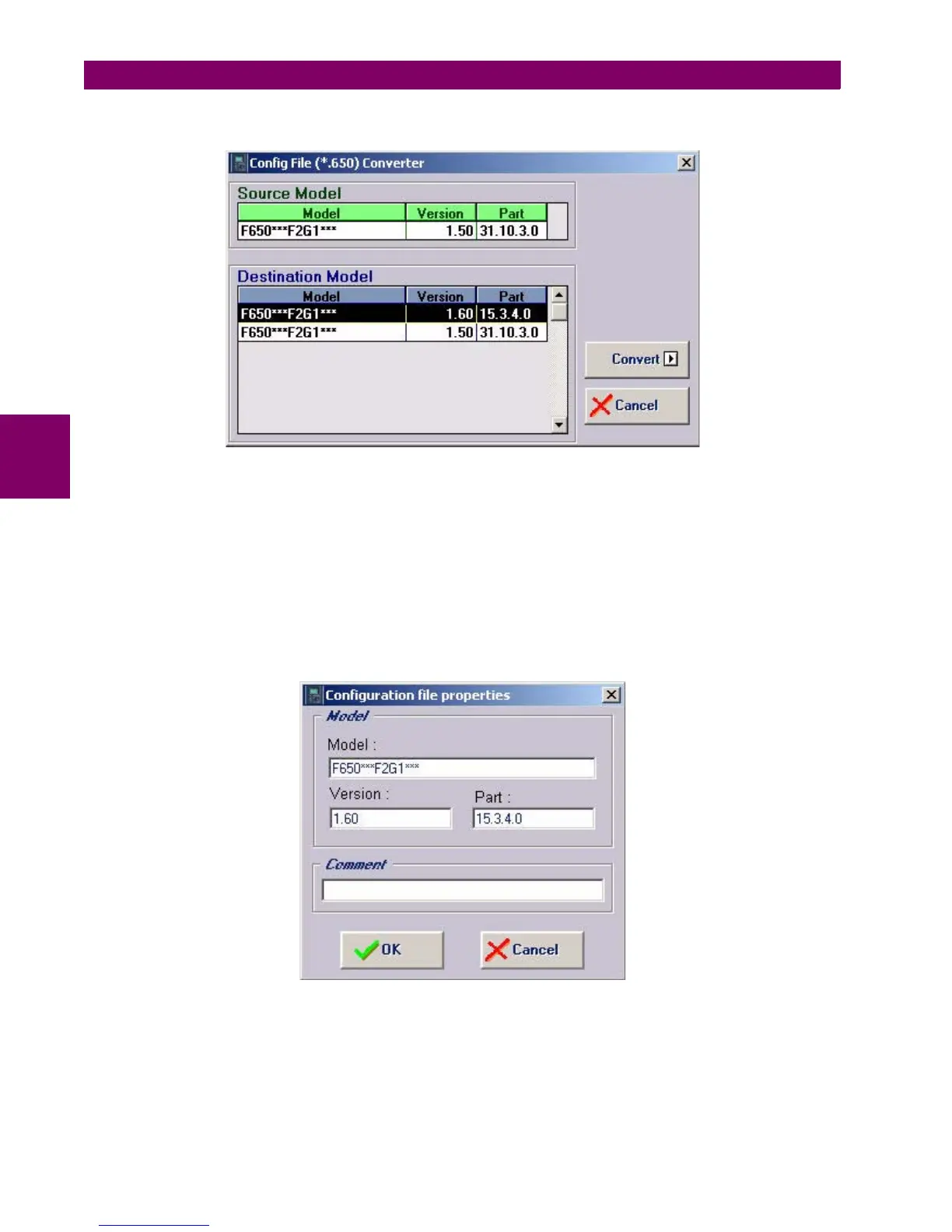

Figure 4–7: CONFIG FILE (*650) CONVERTER MENU
This tool provides automatic conversion of configuration files from a firmware version to a previous or later version.
Open the source *.650 file and select the version and model to be converted to.
It is possible to change the model type (FXGX) using the conversion tool. It must be taken into account that part of the logic
can be readjusted to fit the new input and output boards selection. Notice also that the external wiring of inputs and outputs
board are different for type 1, 2, 4 and 5.
4.1.6.3 PROPERTIES
When this option is selected, the program will show a screen including the relay model information, firmware version, etc. of
the file being edited, as shown on Figure 4–8:
Figure 4–8: FILE PROPERTIES MENU
4.1.6.4 PRINTING OPTIONS (PRINT SETUP/PRINT PREVIEW/PRINT/PRINT TO FILE)
The printing options are active only in off-line mode, in “File edition”, and not in on-line mode, connected with the relay.
