GE Multilin F650 User Manual

C-12 F650 Digital Bay Controller GE Multilin
C.1 DNP 3.0 PROTOCOL FOR F650 APPENDIX C
C

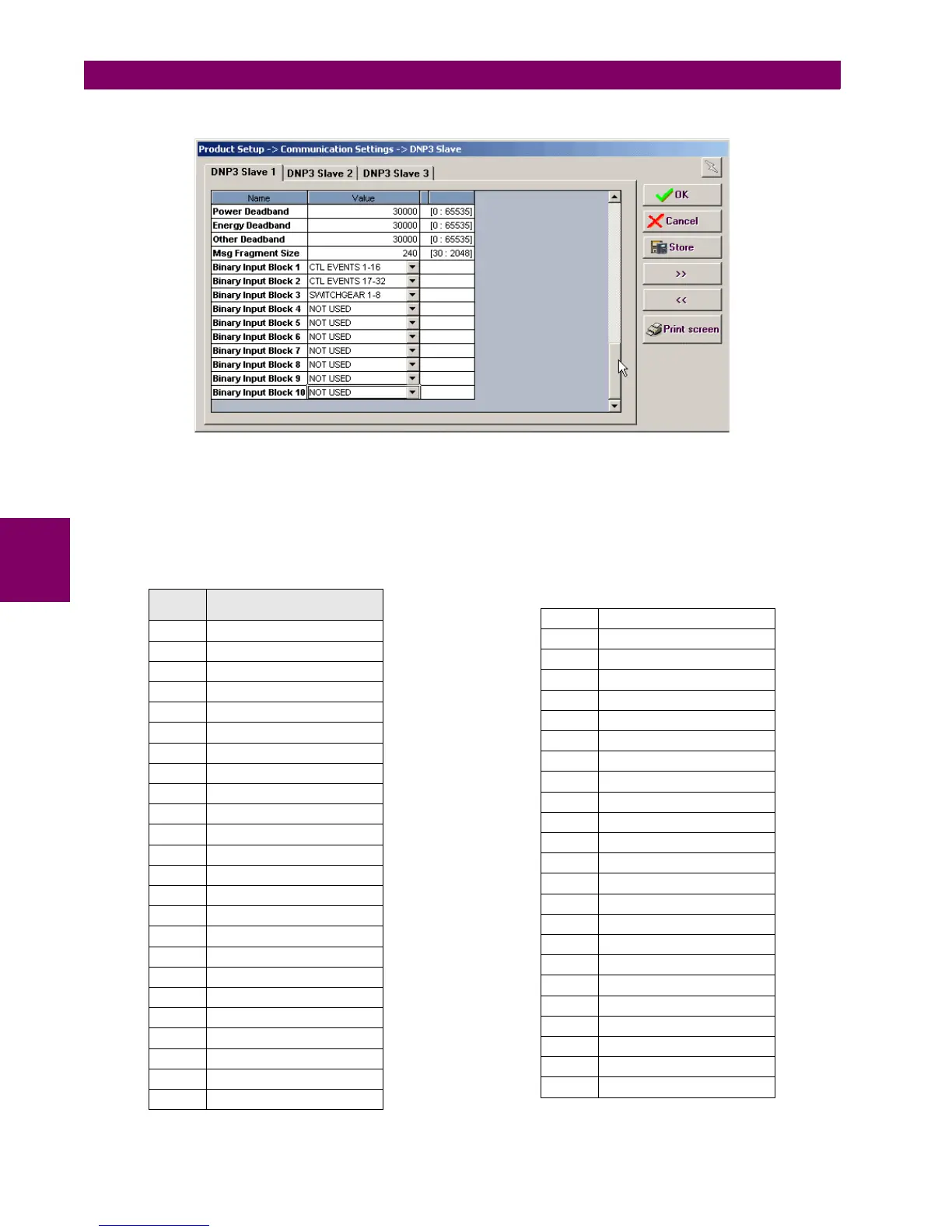

Figure C–3: CONFIGURATION OF DNP BINARY INPUT BLOCKS
In the example presented in this chapter the F650 relay has 48 Binary Input points, as shown in the table below.
C.1.5.2 EXAMPLE OF CUSTOM BINARY INPUT POINTS MAP
POINT
INDEX
NAME/DESCRIPTION
0 CONT_IP_F_CC1(CC1)
1 CONT_IP_F_CC2(CC2)
2 CONT_IP_F_CC3(CC3)
3 CONT_IP_F_CC4(CC4)
4 CONT_IP_F_CC5(CC5)
5 CONT_IP_F_CC6(CC6)
6 CONT_IP_F_CC7(CC7)
7 CONT_IP_F_CC8(CC8)
8 PH IOC1 HIGH A PKP
9 PH IOC1 HIGH B PKP
10 PH IOC1 HIGH C PKP
11 PH IOC1 LOW A PKP
12 PH IOC1 LOW B PKP
13 PH IOC1 LOW C PKP
14 GROUND IOC1 PKP
15 NEUTRAL IOC1 PKP
16 CONT OP_F_01
17 CONT OP_F_02
18 CONT OP_F_03
19 CONT OP_F_04
20 CONT OP_F_05
21 CONT OP_F_06
22 CONT OP_F_07
23 CONT OP_F_08
24 Not Configured
25 Not Configured
26 Not Configured
27 Not Configured
28 Not Configured
29 Not Configured
30 Not Configured
31 Not Configured
32 CONT_IP_F_CC13 (CC13)
33 CONT_IP_F_CC14(CC14)
34 CONT_IP_F_CC15(CC15)
35 CONT_IP_F_CC16(CC16)
36 Not Configured
37 Not Configured
38 Not Configured
39 Not Configured
40 Not Configured
41 Not Configured
42 Not Configured
43 Not Configured
44 Not Configured
45 Not Configured
46 Not Configured
47 Not Configured
