5-1
10
F650 Digital Bay Controller
GE Multilin
5.6 INPUTS/OUTPUTS
5 SETPOINTS
5
b) WITHOUT SUPERVISION
This is a very frequent common case, a
nd we must only wir
e the tripping circu
it to terminals F35 and F
36, leaving unused
terminals F34, F15, F16, F17, F18.

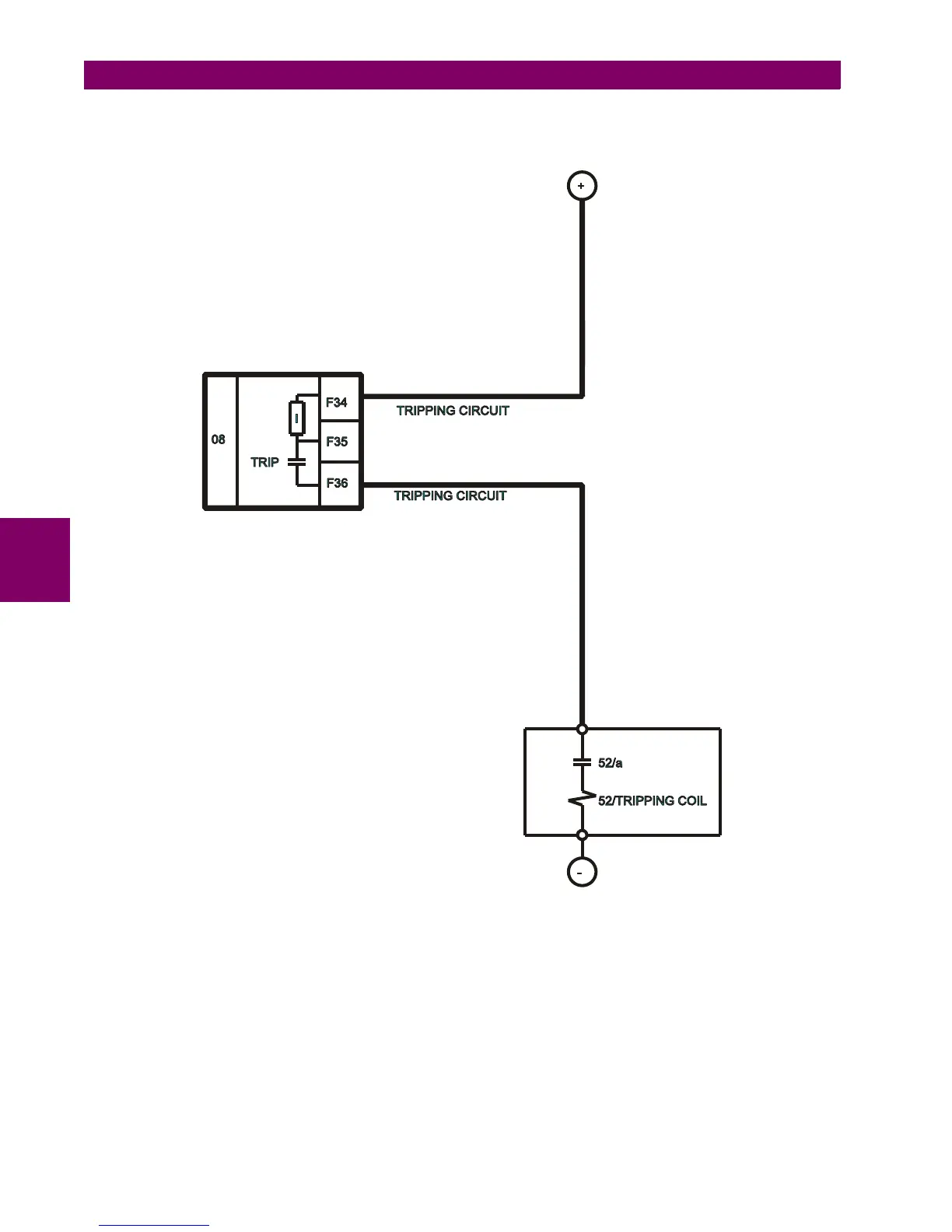

Figure 5–32: CIRCUIT WITHOUT
TRI
PPING CIRCUIT SUPERVISION (A6631F1)
250
252
