6.4.4 DATA LOGGER
The access menu is Actual > Records > Data Logger. Once open, this menu will show a screen containing the
information monitored by the relay according to the settings adjusted at “Setpoint > Product Setup > Data Logger”, where
the user can select which analog channels will be recorded, as well as the sampling rate.
It must be taken into account that any settings change in the data logger will produce the removal of all the information
stored up to that moment.
The data logger screen diagram shows the time during which the displayed values have been obtained.
The upper part of the window shows the time when the oldest sample was taken, as well as the time when the most recent
value was taken.

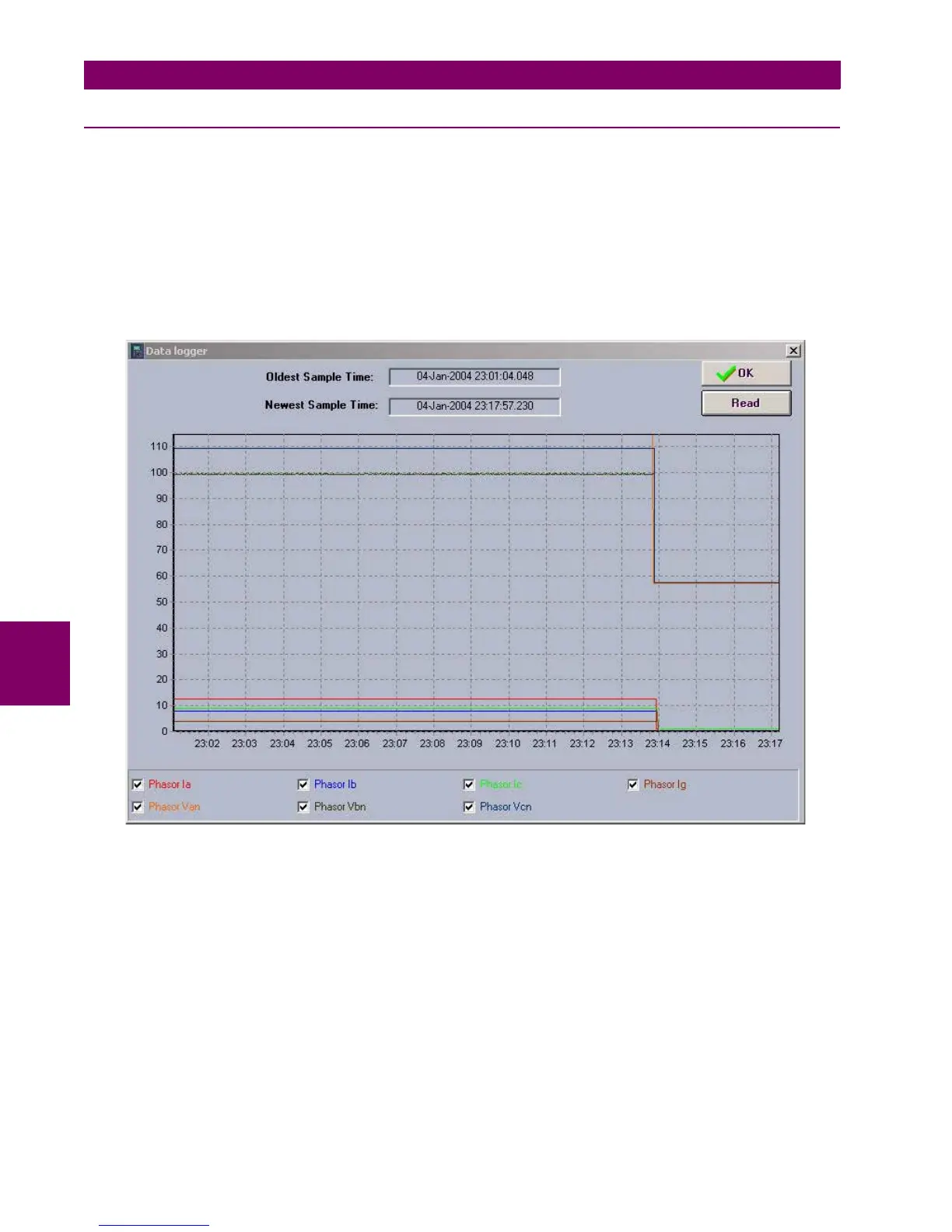

Figure 6–11: DATA LOGGER
This screen offers the possibility of storing the data logger record obtained for a further analysis, in COMTRADE format.
Data Logger file retrieval can be performed only via Ethernet communications.
