2.5 EXTERNAL CONNECTIONS 2 PRODUCT DESCRIPTION
2
2.5EXTERNAL CONNECTIONS
F650 units can hold two different options for F module:
Option 1:Board with 16 inputs and 8 outputs.
Option 2: Board with 8 digital inputs, 4 circuit supervision outputs, 6 conventional outputs, and two current sensing outputs
Each model has a different wiring diagram, as follows:

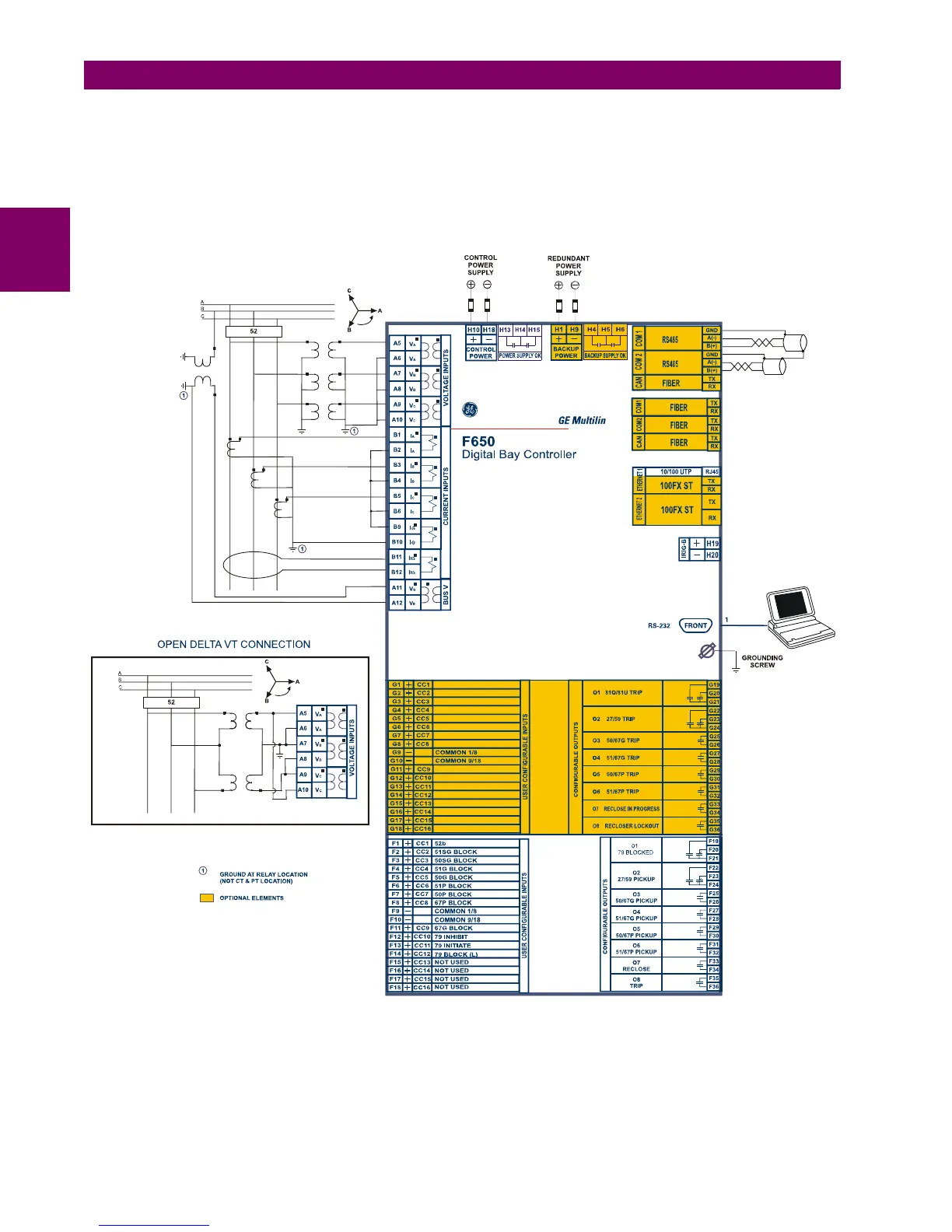

Figure 2–2: WIRING DIAGRAM FOR MODELS WITH OPTION 1 (189C4216H3)
