5-128 F650 Digital Bay Controller GE Multilin
5.8 RELAY CONFIGURATION 5 SETPOINTS
5
5.8.6 CONTROL EVENTS
This menu is used for defining the CONTROL EVENTS, up to 128 user programmable events.
A control event is a logic signal associated to an operand or combination of operands which monitories the change of status
of the logic operand. The relay shows which events are active each time, as well as their date and time of activation.
There are 128 user programmable events and 64 pre-established events for switchgear, which correspond to opening,
closing, Error00 and Error11 of the 16 programmable switchgear elements. (Please refer to section for more detailed
information).
As for the rest of previous setpoints, the source selection can be made between:
• An operand, selecting it directly on this screen.
•An OR of several operands, selecting directly the OR column in this same menu.
• A logic combination of operands, by selecting a VIRTUAL OUTPUT as trigger source, and using the logic configuration
available in the relay, graphical PLC, that allows to design logic circuits and to assign their outputs to internal variables,
called VIRTUAL OUTPUT.
Available setpoints are as follows:
• Select checkbox: enables or disables the generation of each event.
• Name setpoint: defines the text for each control event.
• Source setpoint defines the source that will trigger the event. The source is chosen from the list that shows all the
operands available in the unit.
• NOT checkbox inverts the selected signal.
• OR checkbox to select a group of operands instead of a single one. The relay performs an OR of the signals, and its
output produces operation.
• Alarm checkbox: allows treating the event as an alarm and making the event activation to be reported on the alarm
panel.

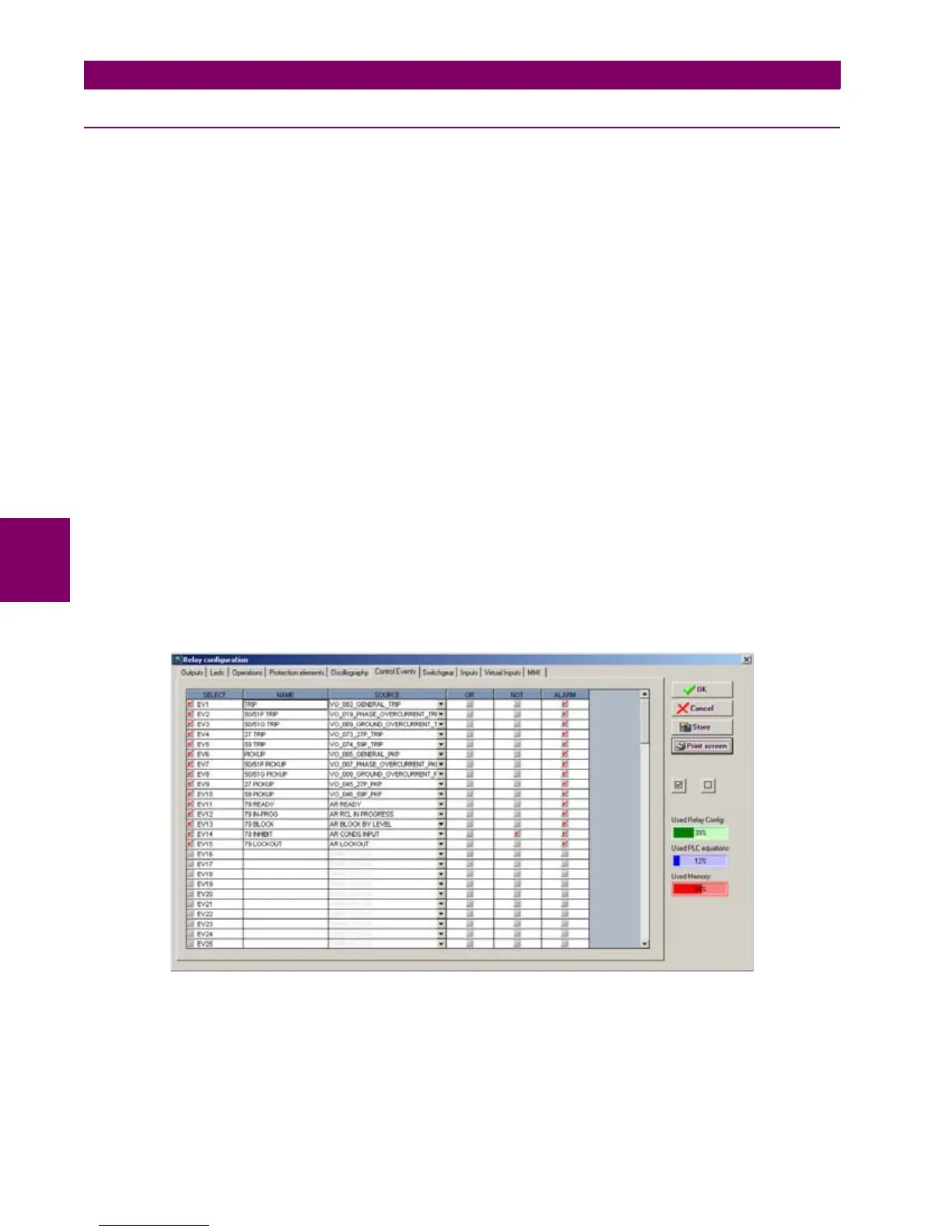

Figure 5–47: CONTROL EVENTS CONFIGURATION
