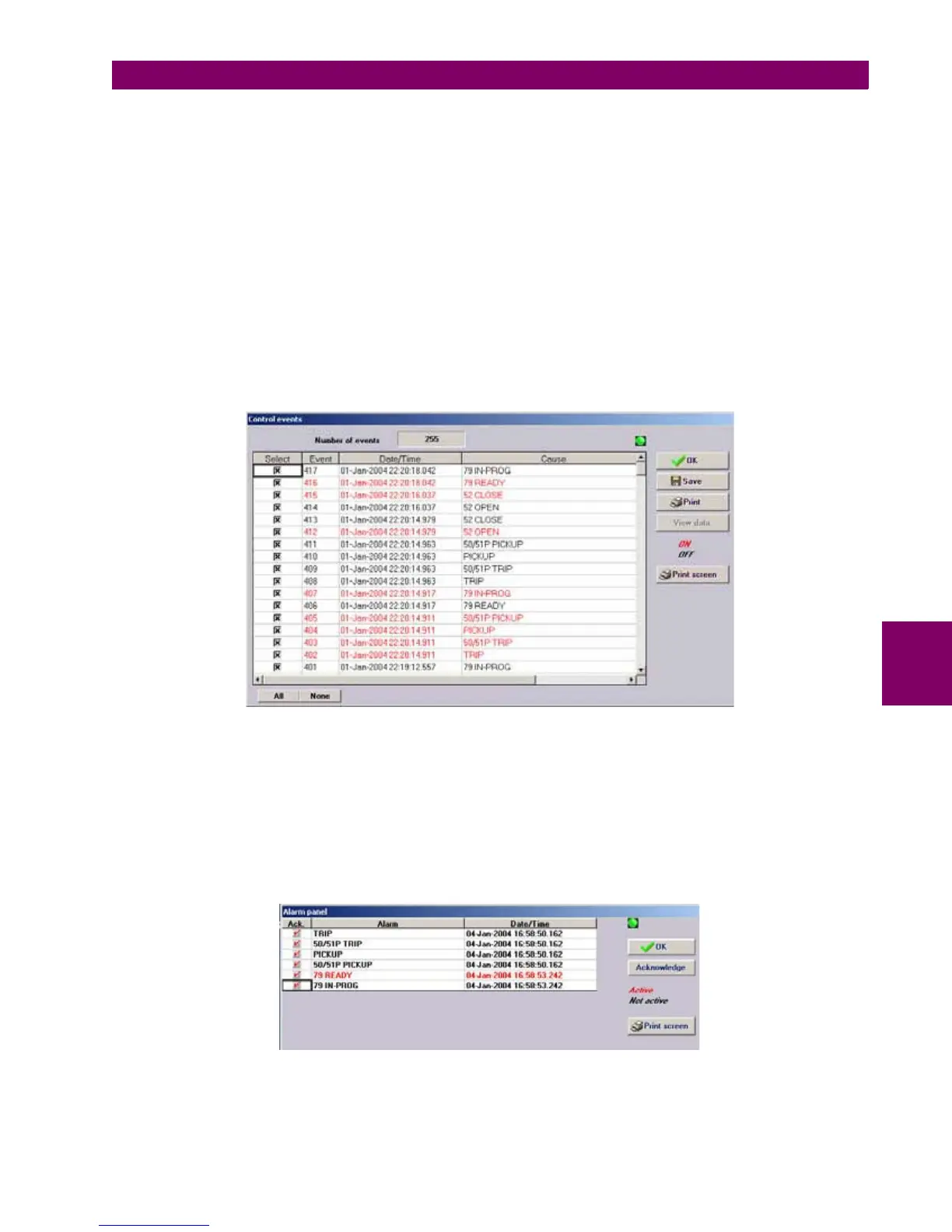

GE Multilin F650 Digital Bay Controller 6-33
6 ACTUAL VALUES 6.4 RECORDS
6
6.4.1.2 NEW SNAPSHOT EVENTS
Actual > Records > Event Recorder > New Snapshot Events
This screen shows new Snapshot events, updated since the last time that this menu was accessed; there are three
possible ways to access new events; in local mode (COM2-HMI), remote mode (COM1) and via Ethernet (COM3).
It is the same type of screen as shown on all snapshot event retrieval.
6.4.1.3 CONTROL EVENTS
Actual > Records > Event Recorder > Control Events
This screen is identical to the previous ones. The difference is that this screen will display only control events, i.e., those
events configured in section Setpoint > Relay Configuration > Events. There are a total of 128 configurable events and
64 non-configurable switchgear events.
In this screen, red or black color for a specific event indicates whether it is activated (to 1) or in standby (to 0)
Figure 6–6: CONTROL EVENTS
6.4.1.4 ALARM PANEL
The alarm panel can be accessed at Actual > Records > Event Recorder > Alarm Panel.
The following screen provides information about the issued alarms. The screen shows information about their status: active
not acknowledged, active acknowledged and not active. The user can either acknowledge all alarms at the same time, or
do it partially by selecting the alarms to be acknowledged.
Figure 6–7: ALARM PANEL
