ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
3-144 Section 3-4 - Preparing for Installation
PRELIMINARY
The Search/Create Patient dialog box opens.
2.) Type the patient’s Last Name and ID in the appropriate fields (see Figure 3-165).
3.) Select the Dataflow you intend to use for this patient’s information (in this case, select Local
Archive – Int HD/eVue as shown in Figure 3-165).
4.) Using the soft key buttons, select NEW PATIENT
.
5.) Now start scanning. Each image you would like to store press the STORE
button.
A few seconds after the Store button is pressed, images will be transferred into the remote
computer (which was previously set as the destination - refer to Figure 3-164 on page 3-142).
6.) To proceed, follow to the instructions as described for ‘Using MPEGVue Viewer on a Remote PC”
on page 3-161.

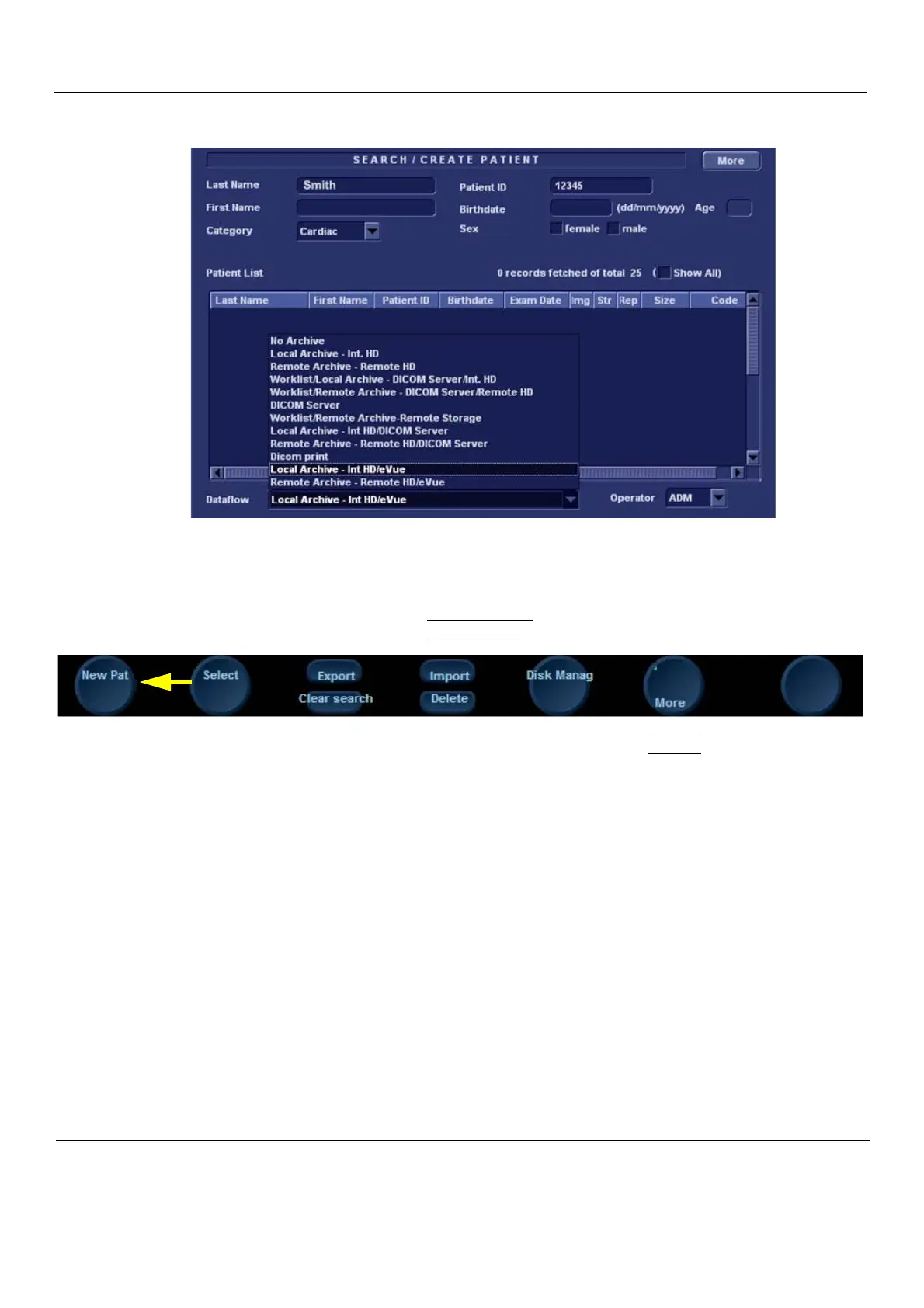

Figure 3-165 Search/Create Patient Dialog Box
