ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
Chapter 7 - Diagnostics/Troubleshooting 7-85
PRELIMINARY
7-4-6 Probe Select Board Diagnostic Tests (cont’d)
4.) Trackball to the Start button and press Set.
The ACW HPF Test commences. While the test proceeds, the name of the test currently in progress
(ACW HPF Test) is displayed in the Execute field and the current Loop # and specific test are shown
below. The messages Init Done and Please Wait are displayed beside the progress bar in the
Status area.
As the testing sequence progresses, the progress bar will advance to reflect the test progress.
Status indicators in the Data Flow map corresponding to the various system components will be
highlighted in the appropriate color to indicate the current test status, as follows:
• Green: All recommended tests for these components have been completed and no problems
were identified.
• Red: Problems were identified in these components during the performance of the test.
• Yellow: The tests executed so far on these components have passed, but not all
recommended tests have been performed.
5.) At any stage, trackball to the Pause button and press Set, if required.
6.) To resume testing (from the point where you paused), trackball to the Start button and press Set.
When the ACW HPF Test sequence is complete:
- the Diagnostic Test window displays the Finished message
- the View Test Log window opens automatically, listing all tests performed and showing details
of which tests passed or failed, as shown in the example in Figure 7-54 "View Test Log - ACW
HPF Test - 300" on page 7-85.
NOTE: The ACW HPF Test has two test reports (HPF300 and HPF600) which are listed in the Reports
window on the right. By default, the HPF300 report is displayed in the Reports window below
(Figure 7-54 "View Test Log - ACW HPF Test - 300" on page 7-85).

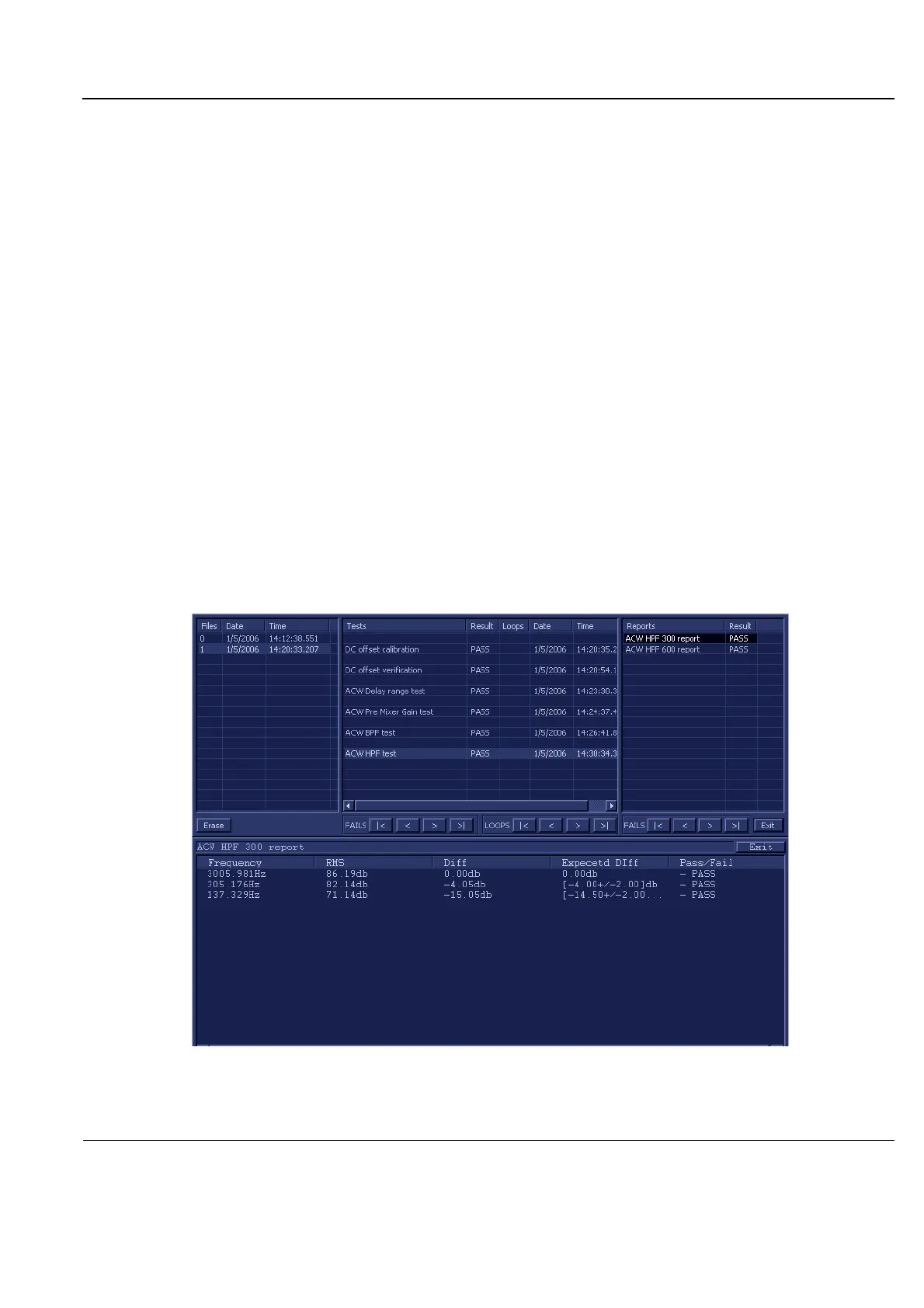

Figure 7-54 View Test Log - ACW HPF Test - 300
