GE
P
ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
8-14 Section 8-2 - Cover Replacement Procedures
PRELIMINARY
8-2-5 Left Rear Cover Replacement Procedures (cont’d)
4) Pull the cover upwards to release the two securing hooks (located on the inner right side of the
cover) from the main assembly frame - see Figure 8-16.
5) Carefully lift the cover upwards sufficiently to clear the portions of the cover that overlap the system
chassis (shown in Figure 8-17).

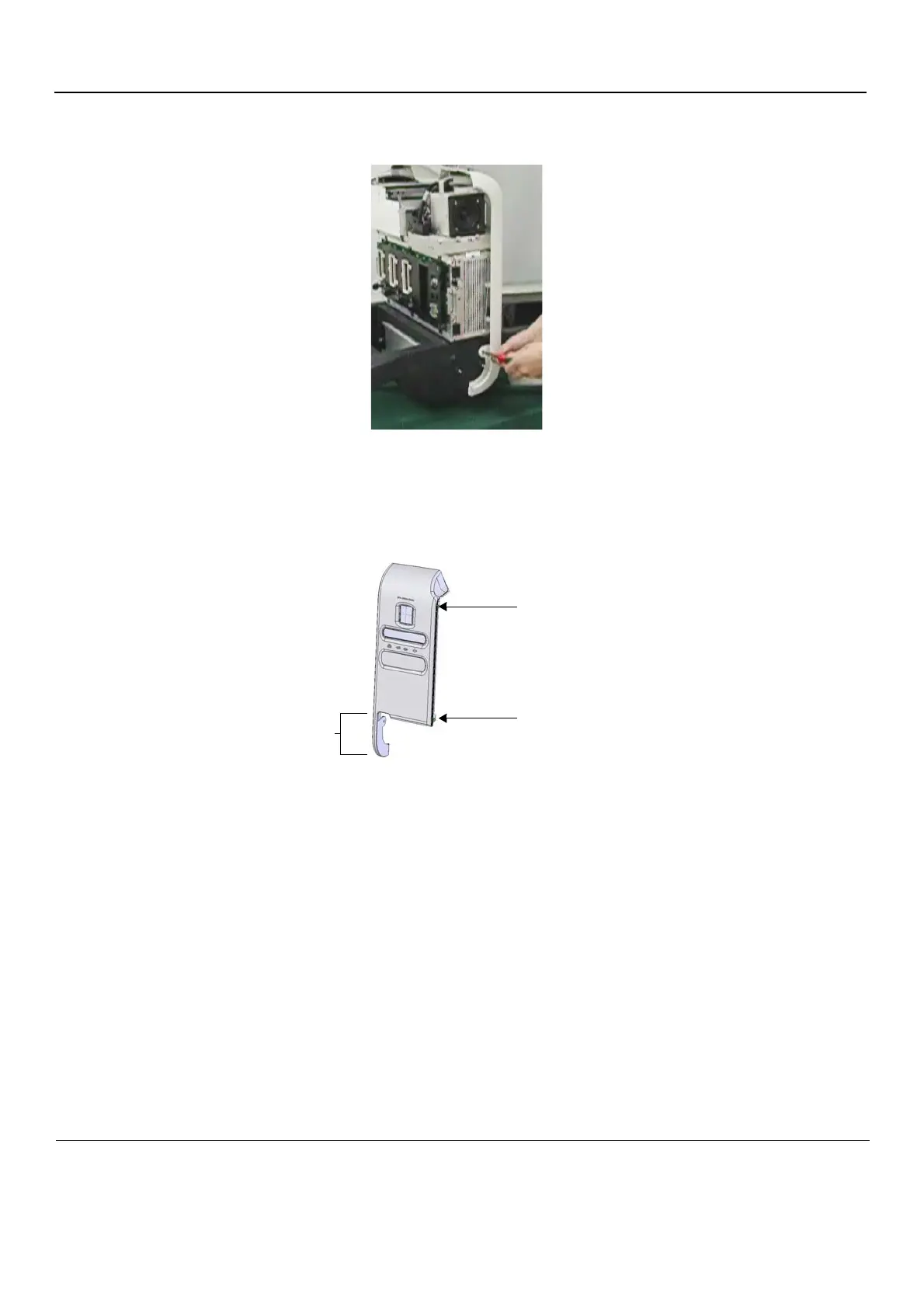

Figure 8-15 Loosening the Securing Screw
Figure 8-16 Left Rear Cover - Position of Securing Hooks
Securing Hook
Securing Hook
Portion Overlapping
System Chassis
To Next Page
