8-112 Section 8-6 - Lower Section Components Replacement Procedures
PRELIMINARY
10.)Disconnect the VGA cable from the Back End (use a flat screwdriver to release the two screws on
the connector).
11.)Pull down the spring latch to release the cage door from its securing hinge - see Figure 8-138.
12.)Carefully lift the cage upwards to free it from the securing hinge (see Figure 8-139) and place it on
a clean, stable surface.

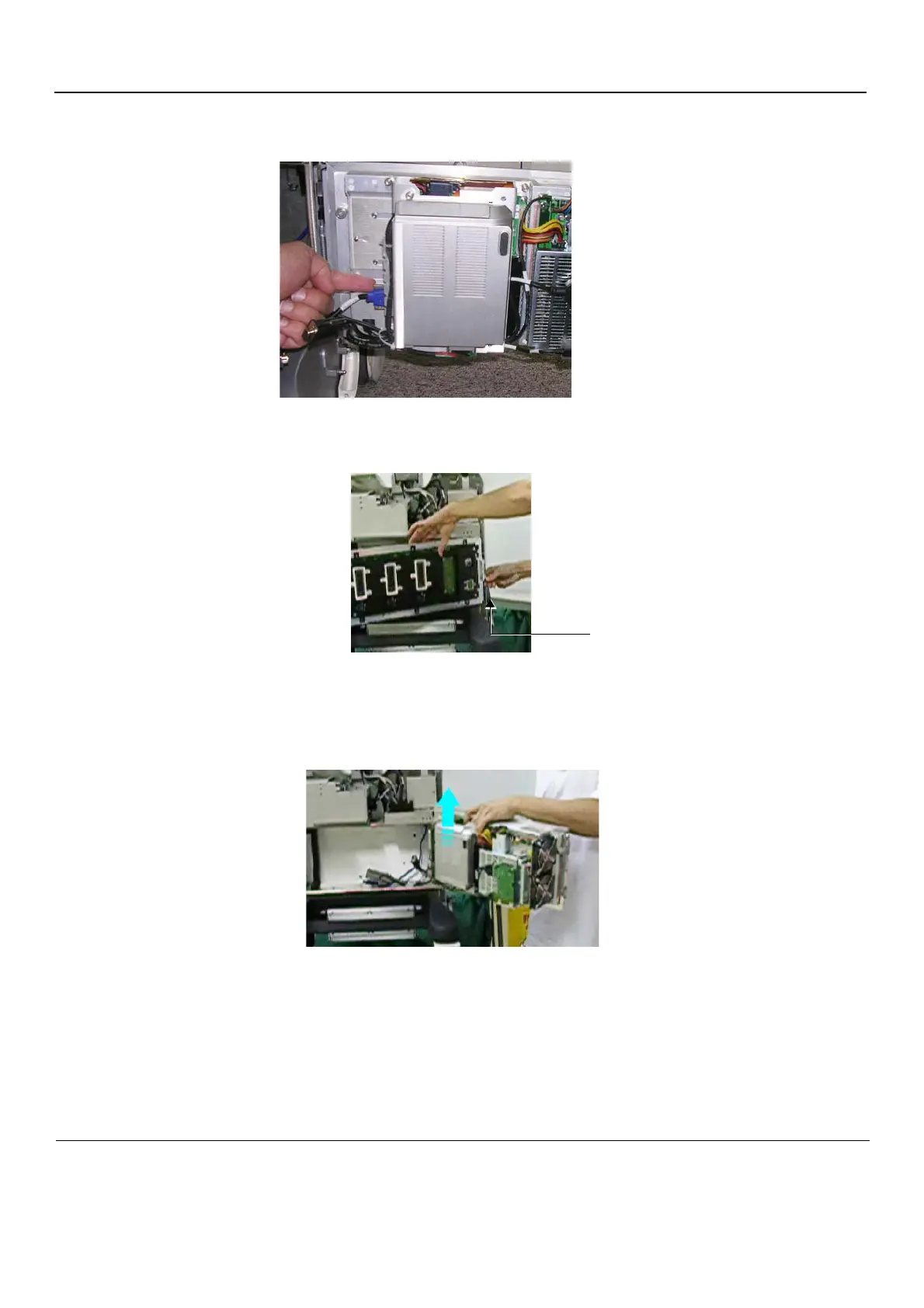

Figure 8-137 Releasing Connectors on the VGA Cable
Figure 8-138 Releasing the Cage Door Spring Latch
Figure 8-139 Removing the Cage from the Securing Hinge
