ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
8-178 Section 8-6 - Lower Section Components Replacement Procedures
PRELIMINARY
3.) Disconnect the two power cables (seen in Figure 8-223) from the AC Box by squeezing the plastic
retainer clips inwards (Figure 8-224).
4.) Disconnect both ground leads (refer to Figure 8-225).
5.) To remove the AC Distribution Box, unscrew the two supporting screws (shown in Figure 8-223)
and slide the AC Box all the way out until is completely removed from the system.
6.) Remove the ground lead from the AC Distribution Box - keep ready for reuse on the new
AC Distribution Box (as described in the following installation procedure).

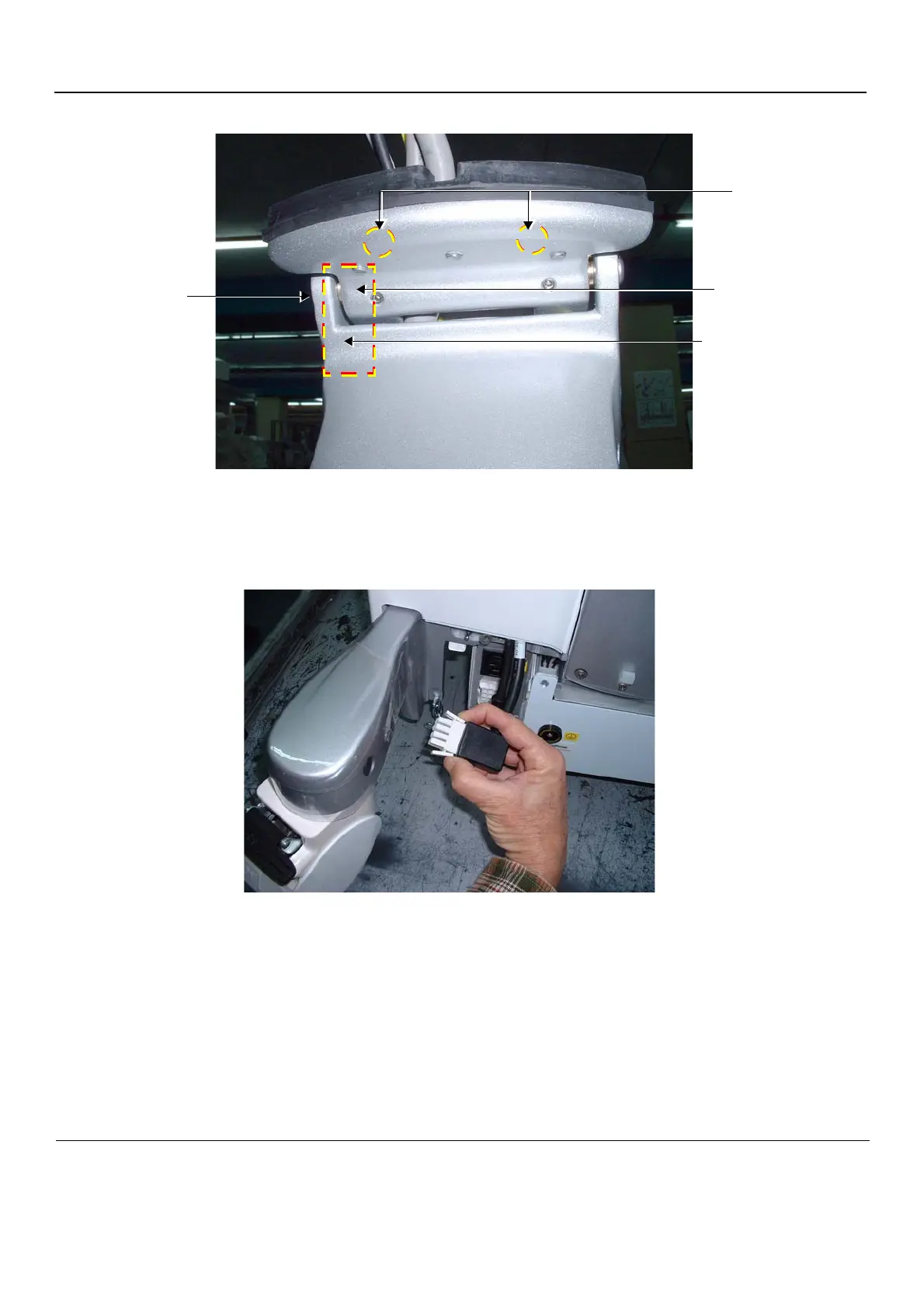

Figure 8-223 AC Distribution Box Secured with Two Supporting Screws
Figure 8-224 Plastic Securing Clips on Power Cables
Disconnect
Two
Power Cables
AC Box
Supporting Screws
Ground Leads
