Programming contours | Path contours – FK free contour programming (option 19)
Closed contours

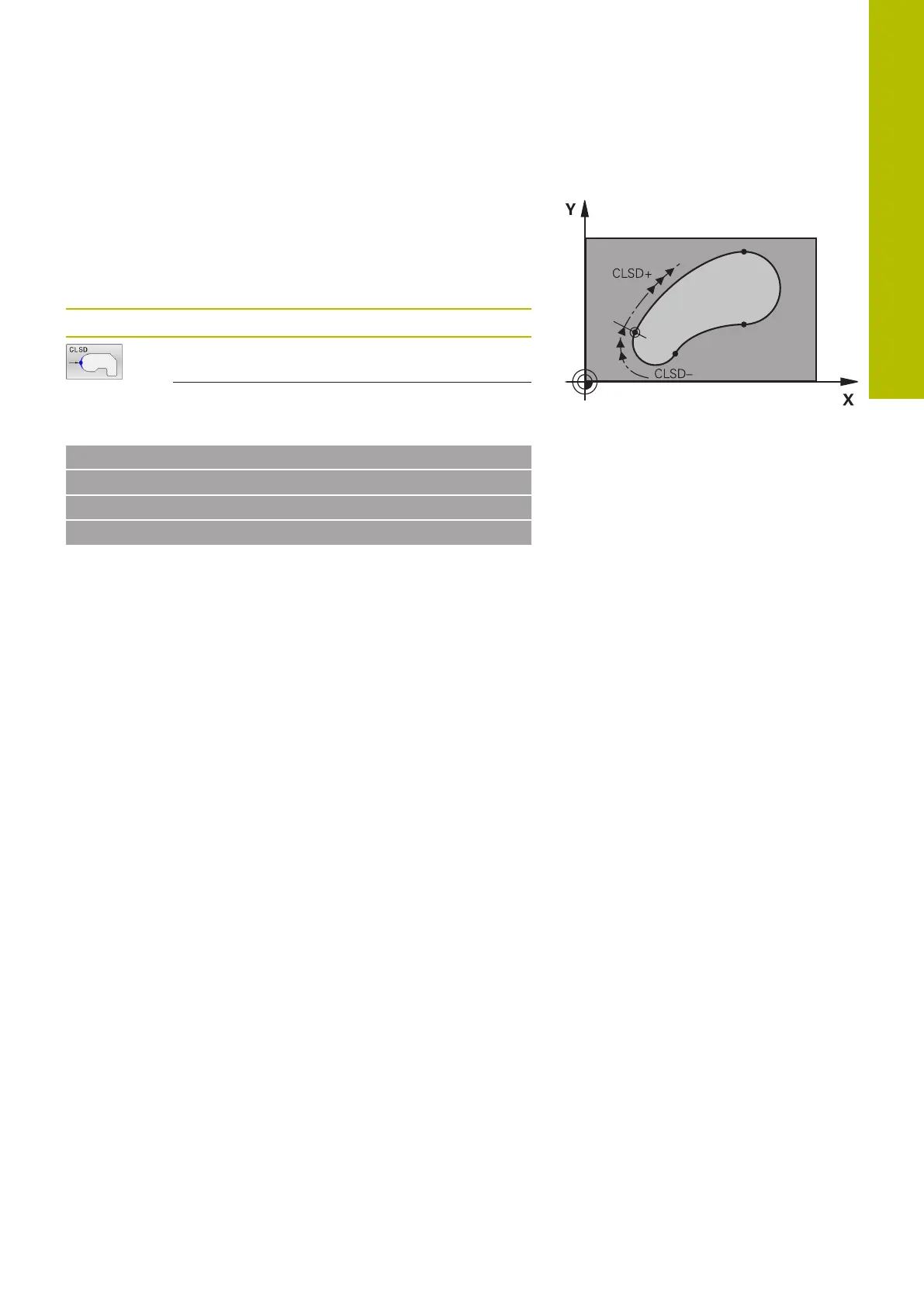

You can identify the beginning and end of a closed contour with the
CLSD soft key. This reduces the number of possible solutions for the
last contour element.
Enter CLSD as an addition to another contour data entry in the first
and last NC blocks of an FKsection.
Soft key Known data
Beginning of
contour:
CLSD+
End of contour: CLSD–
Example
12 L X+5 Y+35 RL F500 M3
13 FC DR- R15 CLSD+ CCX+20 CCY+35
...
17 FC DR- R+15 CLSD-
