Operating the touchscreen | Display unit and operation
14
Operating panel
Integrated operating panel

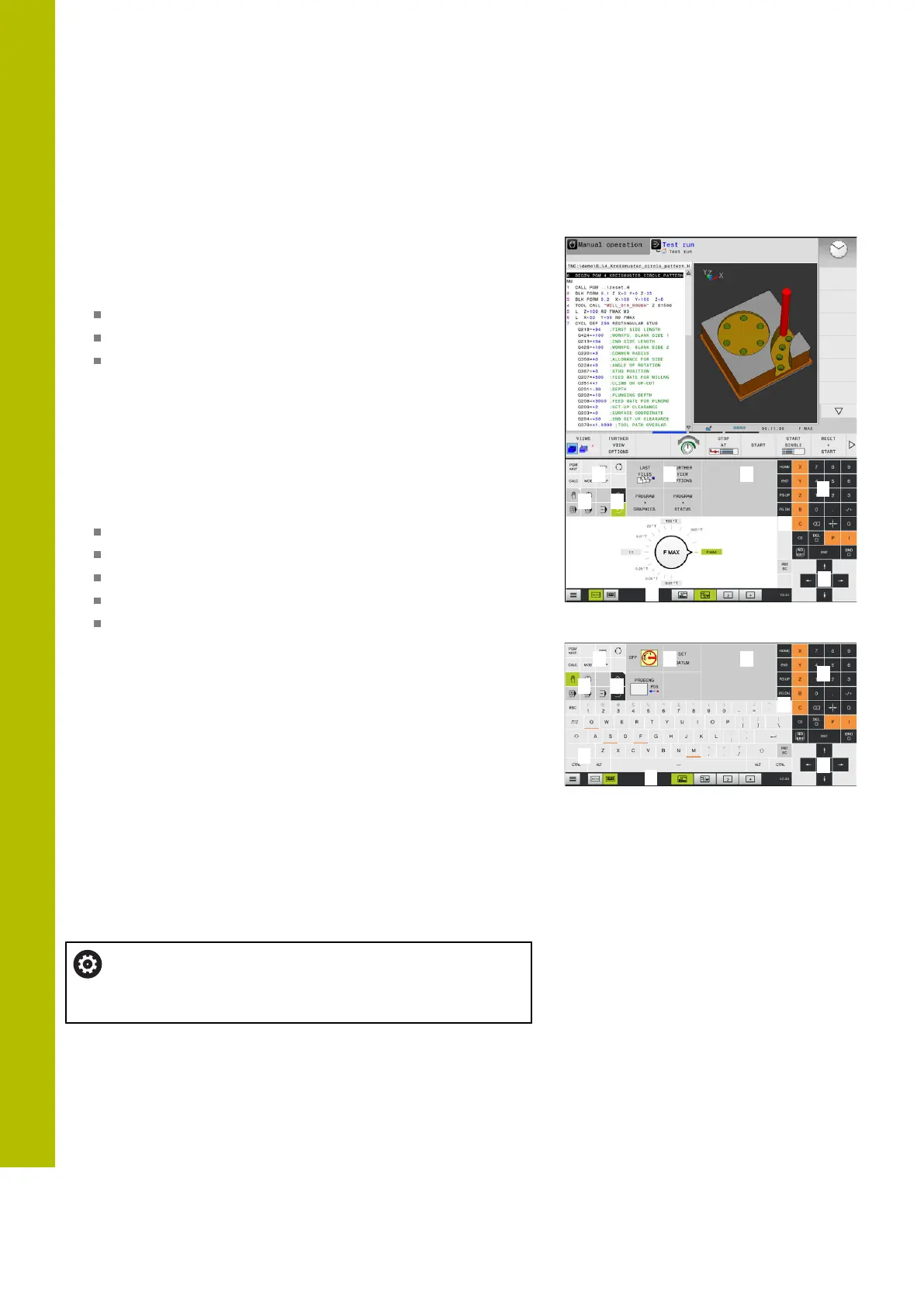

The operating panel is integrated in the screen. The content of the
operating panel changes depending on the current operating mode.
1 Area for showing the following:
Alphabetic keyboard
HEROS menu
Potentiometer for the speed of simulation (only in the Test
Run operating mode)
2 Machine operating modes
3 Programming modes
The control shows the active operating mode, to which the
screen is switched, with a green background.
The control shows the operating mode in the background
through a small white triangle.
4 File management
Calculator
MOD function
HELP function
Show error messages
5 Rapid access menu
Depending on the operating mode, you’ll find the most impor-
tant functions here at a glance.
6 Initiating the programming dialogs (only in the Programming
and Positioning w/ Manual Data Input operating modes)
7 Numerical input and axis selection
8 Navigation
9 Arrows and the jump statement GOTO
10 Task bar
Further information: User's Manual for Setup, Testing and
Running NC Programs
In addition, the machine tool builder supplies a machine operating
panel.
Refer to your machine manual.
External keys, e.g. NC START or NC STOP, are described in
your machine manual.
2
3
4 5
8
9
6
7
1
10
Operating panel of the Test Run mode
2
3
4
5
8
9
6
7
1
10
Operating panel in the Manual Operation mode
