Fundamentals | Modes of operation

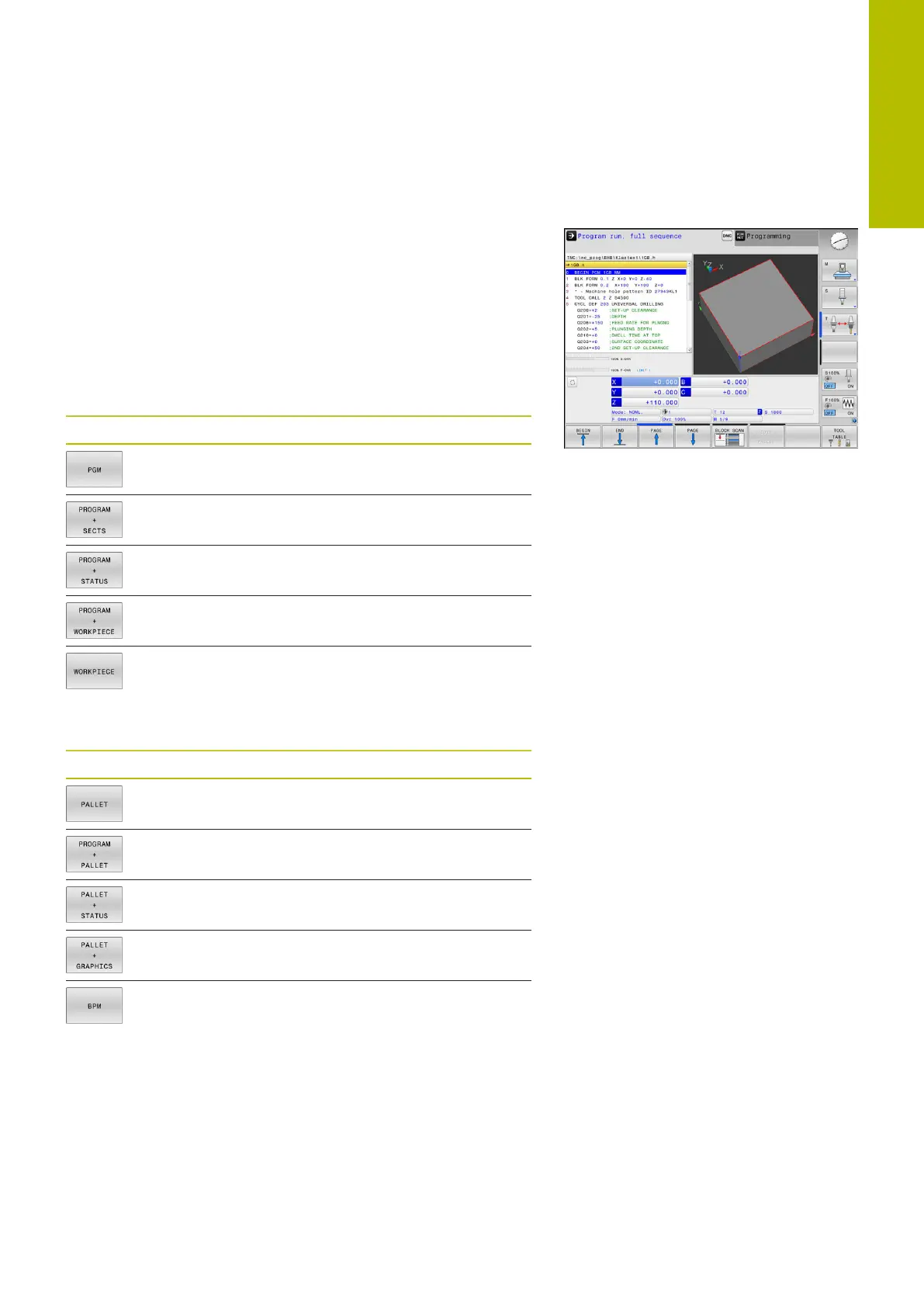

Program Run, Full Sequence and Program Run,
SingleBlock
In the Program Run Full Sequence operating mode, the control
runs an NC program continuously to its end or to a manual
or programmed stop. You can resume program run after an
interruption.
In the Program Run Single Block operating mode, you execute each
NC block separately by pressing the NC start key. With point pattern
cycles and CYCL CALL PAT, the control stops after each point. The
workpiece blank definition will be interpreted as a separate NC block.
Soft keys for selecting the screen layout
Soft key Window
NC program
Left: NC program, right: structure
Left: NC program, right: status display
Left: NC program, right: workpiece
(option 20)
Workpiece
(option 20)
Soft keys for screen layout with pallet tables (option 22 Pallet
management)
Soft key Window
Pallet table
Left: NC program, right: pallet table
Left: pallet table, right: status display
Left: pallet table, right: graphics
Batch Process Manager
