Rotations with TRANS ROTATION
Application
With the TRANS ROTATION function, you can rotate contours or
positions around a rotation angle.
The TRANS DATUM RESET function allows you to reset the rotation.
Related topics
Cycle 10 ROTATION
Further information: User's Manual for Programming of
Machining Cycles
Description of function
Rotation is a modal function that is effective as soon as it has been
defined in the NC program.

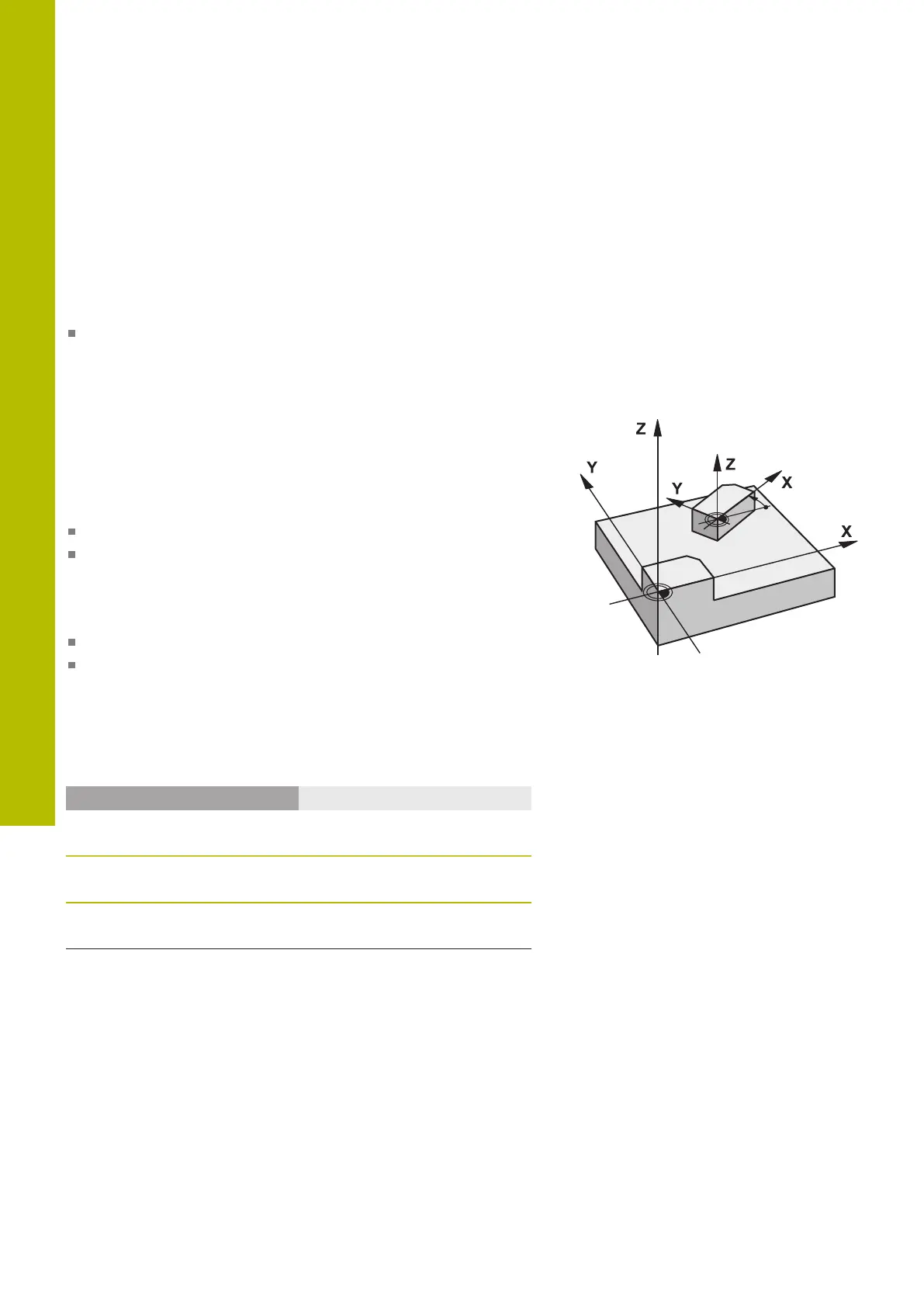

The control rotates machining in the working plane about the active
workpiece datum.
The control rotates the input coordinate system (I-CS) as follows:
Based on the angle reference axis, i.e. the main axis
About the tool axis
Further information: "Designation of the axes on milling machines",
Page 87
A rotation can be programmed as follows:
Absolute, relative to the positive main axis
Incremental, relative to the last active rotation
If rotation is active, the control displays it on the TRANS tab of the
additional status display.
Further information: User's Manual for Setup, Testing and Running
NC Programs
Input
11 TRANS ROTATION ROT+90
; Rotate machining by 90°
The NC function includes the following syntax elements:
Syntax
element
Meaning
TRANS
ROTATION
Start of syntax for a rotation
ROT or RESET Enter an absolute or incremental angle of rotation
or reset rotation
Fixed or variable number
Note
This function can only be used in the FUNCTION MODE MILL
machining mode.
Further information: "Program function mode", Page 363
