Introduction | Visual display unit and operating panel
2
90
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017
Setting screen layout
The screen layout is user-selectable. In the Programming mode,
for example, you can have the control show program blocks in the
left window while the right window displays programming graphics.
You could also display the program structure in the right window
instead, or display only program blocks in one large window. The
available screen windows depend on the selected operating mode.
Set up screen layout:
Press the screen layout key: The soft-key row
shows the available layout options
Further information: "Modes of operation",
page 91
Select the desired screen layout with a soft key

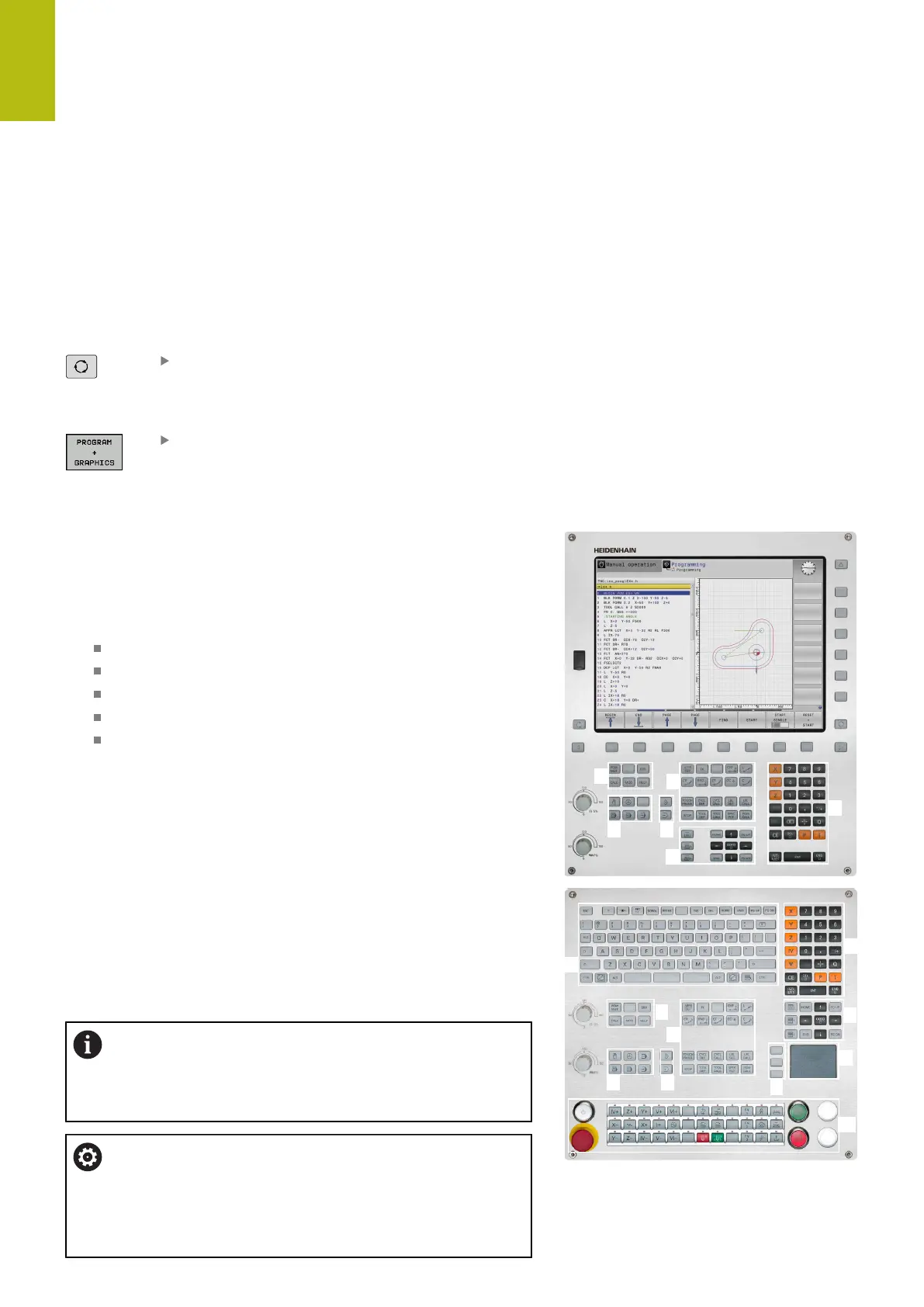

Control panel
The TNC 620 is delivered with an integrated operating panel. As
an alternative, the TNC 620 is also available with a separate display
unit and an operating panel with an alphabetic keyboard.
1 Alphabetic keyboard for entering texts and file names, as well
as for ISO programming
2 File management
Calculator
MOD function
HELP function
Show error messages
3 Programming modes
4 Machine operating modes
5 Initiating programming dialogs
6
Navigation keys and GOTO jump command
7 Numerical input and axis selection
8 Touchpad
9 Mouse buttons
10 Machine operating panel
More information Machine manual
The functions of the individual keys are described on the inside
front cover.
If you are using a TNC 620 with touch control, you can
replace some keystrokes with hand-to-screen contact.
Further information: "Operating the Touchscreen",
page 123
Refer to your machine manual.
Some machine tool builders do not use the standard
HEIDENHAIN operating panel.
External keys, e.g.NC START or NC STOP, are described
in your machine manual.
2
3
4
5
6
7
2
3
4
5
8
9
6
7
10
1
