Fundamentals, File Management | Working with the file manager
4
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017
185

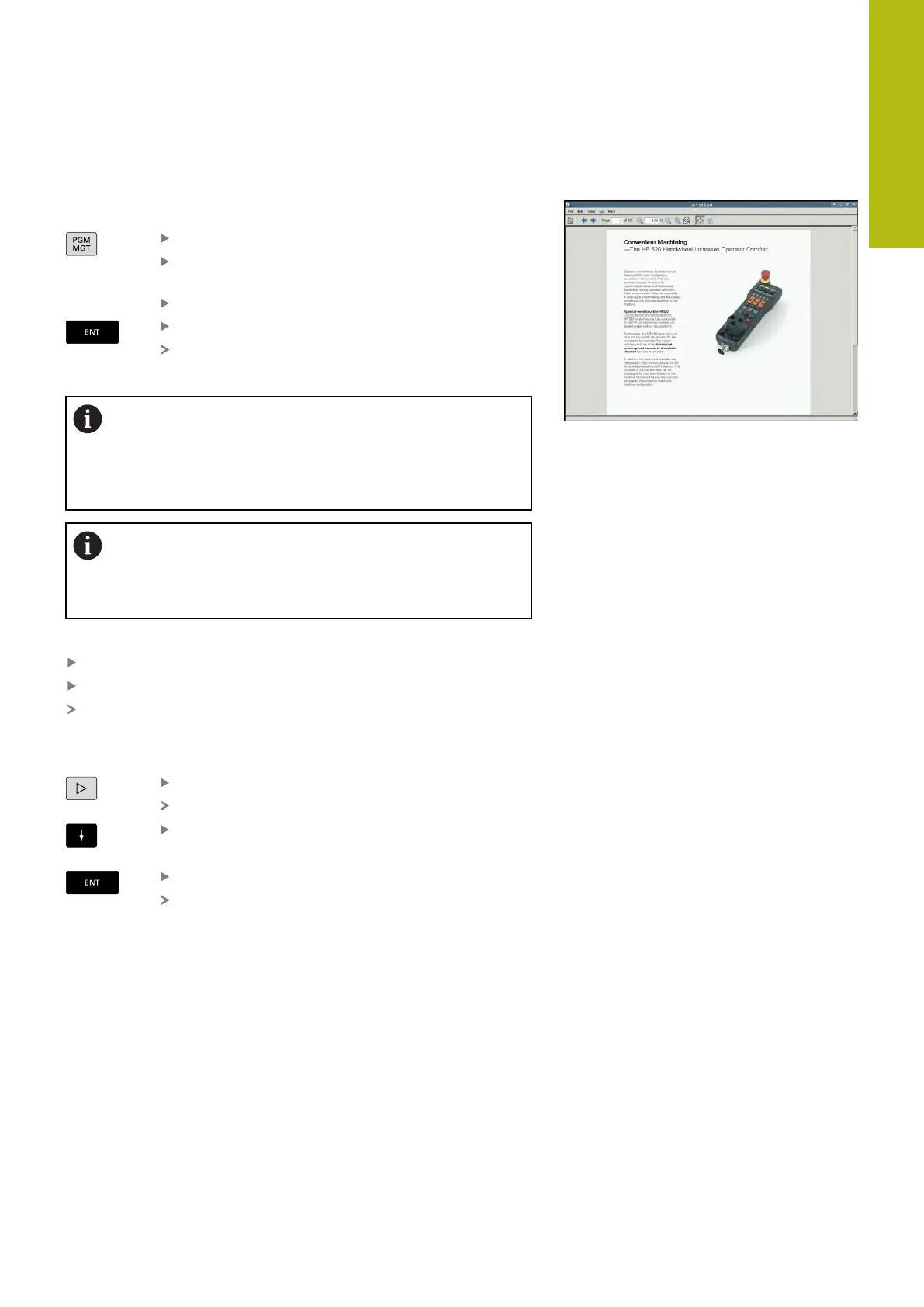

Displaying PDF files
To open PDF files directly on the control, proceed as follows:
To call the file manager, press the PGM MGT key.
Select the directory in which the PDF file is
saved
Move the cursor to the PDF file
Press the ENT key
The control opens the PDF file in its own
application using the PDF viewer additional tool.
With the key combination ALT+TAB you can always
return to the control's user interface while leaving
the PDF file open. Alternatively, you can also click the
corresponding symbol in the task bar to switch back to
the user interface of the control.
If you position the mouse pointer over a button, a brief
tool tip explaining the function of this button will be
displayed. More information on how to use the PDF
viewer is provided under Help.
Proceed as follows to exit the PDF viewer:
Use the mouse to select the File menu item
Select Close
The control returns to the file management.
If you are not using a mouse, proceed as follows to close the PDF
viewer:
Press the key for switching the soft keys
The PDF viewer opens the File pull-down menu.
Move the cursor to the Close menu item.
Press the ENT key
The control returns to the file management.
