Introduction | Status displays
2
98
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

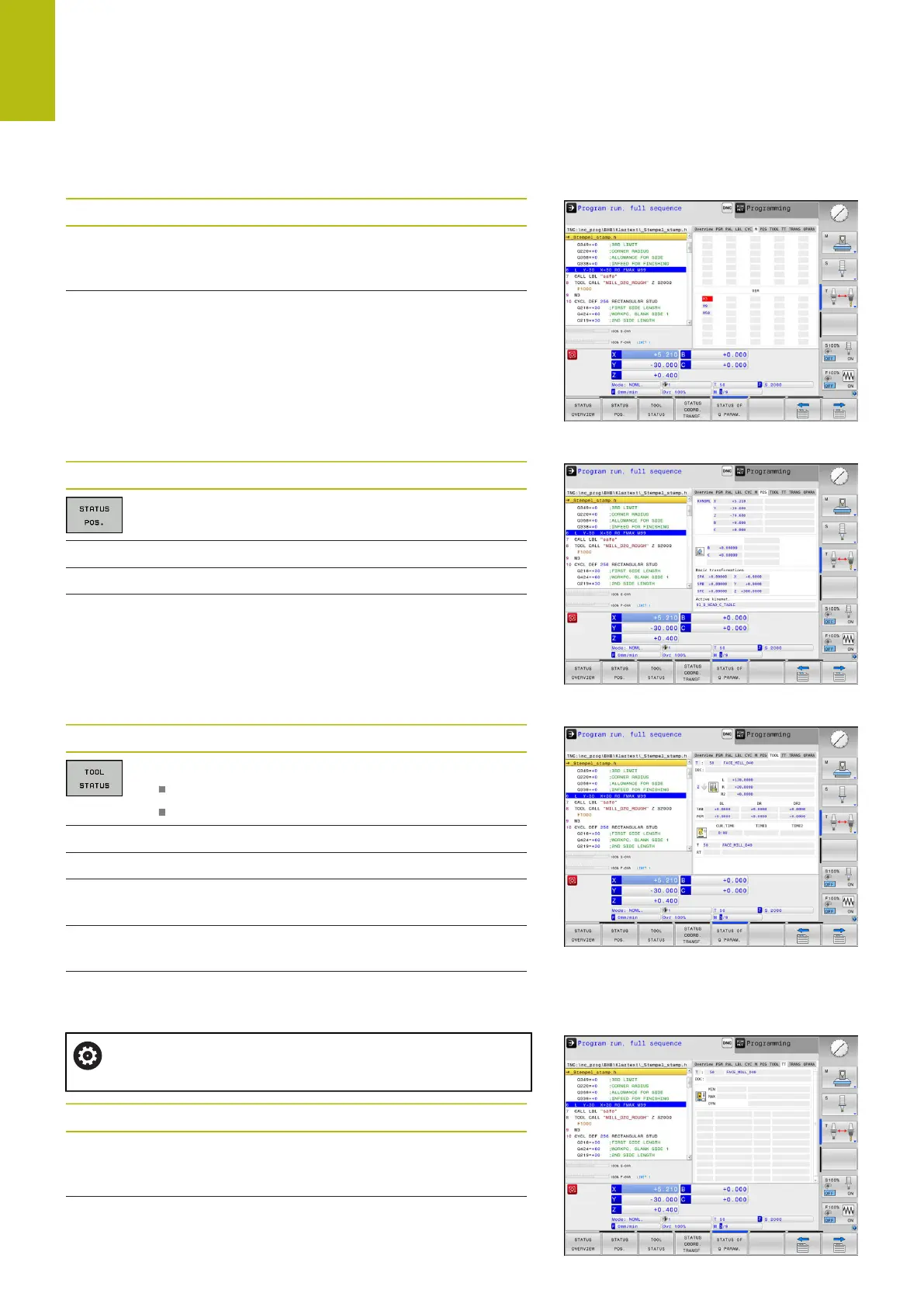

Active miscellaneous functions M (M tab)
Soft key Meaning
No direct
selection
possible
List of the active M functions with fixed
meaning
List of the active M functions that are adapted
by your machine manufacturer
Positions and coordinates (POS tab)
Soft key Meaning
Type of position display, e.g. actual position
Tilt angle of the working plane
Angle of basic transformations
Active kinematics
Information on tools (TOOL tab)
Soft key Meaning
Display of active tool:
T: Tool number and tool name
RT: Number and name of a replacement tool
Tool axis
Tool length and tool radii
Oversizes (delta values) from the tool table (TAB)
and the TOOL CALL (PGM)
Tool life, maximum tool life (TIME 1) and maximum
tool life for TOOL CALL (TIME 2)
Display of programmed tool and replacement tool
Tool measurement (TT tab)
The control displays this tab only if the function is active
on your machine.
Soft key Meaning
No direct
selection
possible
Active tool
Measured values from tool measurement
