Multiple-axis machining | The PLANE function: Tilting the working plane (option 8)
Abbreviations used
Abbreviation Meaning
EULER Swiss mathematician who defined these angles
EULPR Precession angle: angle describing the rotation
of the coordinate system around the Z axis

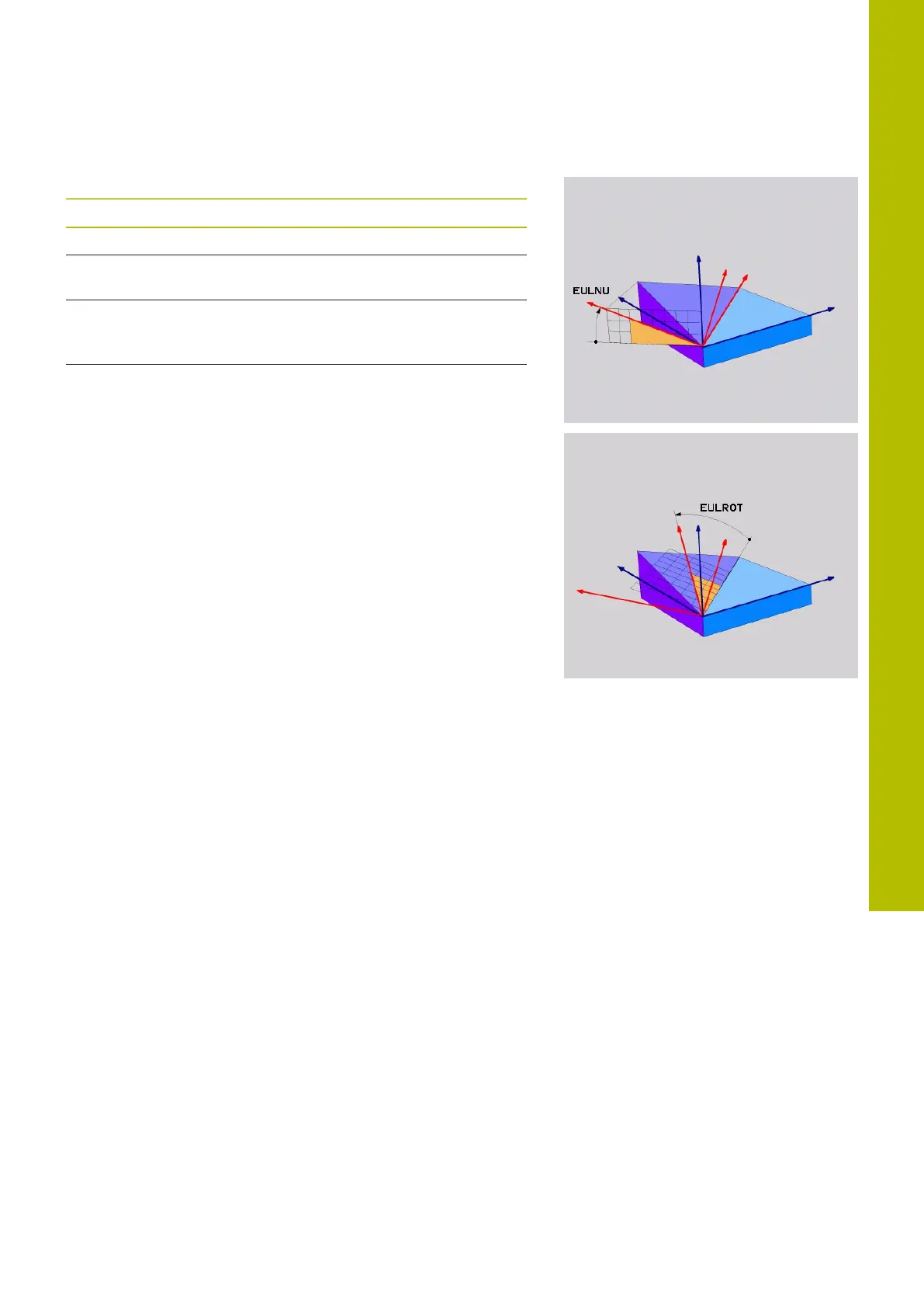

EULNU Nutation angle: angle describing the rotation of
the coordinate system around the X axis shifted
by the precession angle
EULROT Rotation angle: angle describing the rotation of
the tilted machining plane around the tilted Z
axis
