HEIDENHAIN TNC 620 Programming Station

Multiple-axis machining | The PLANE function: Tilting the working plane (option 8)
11

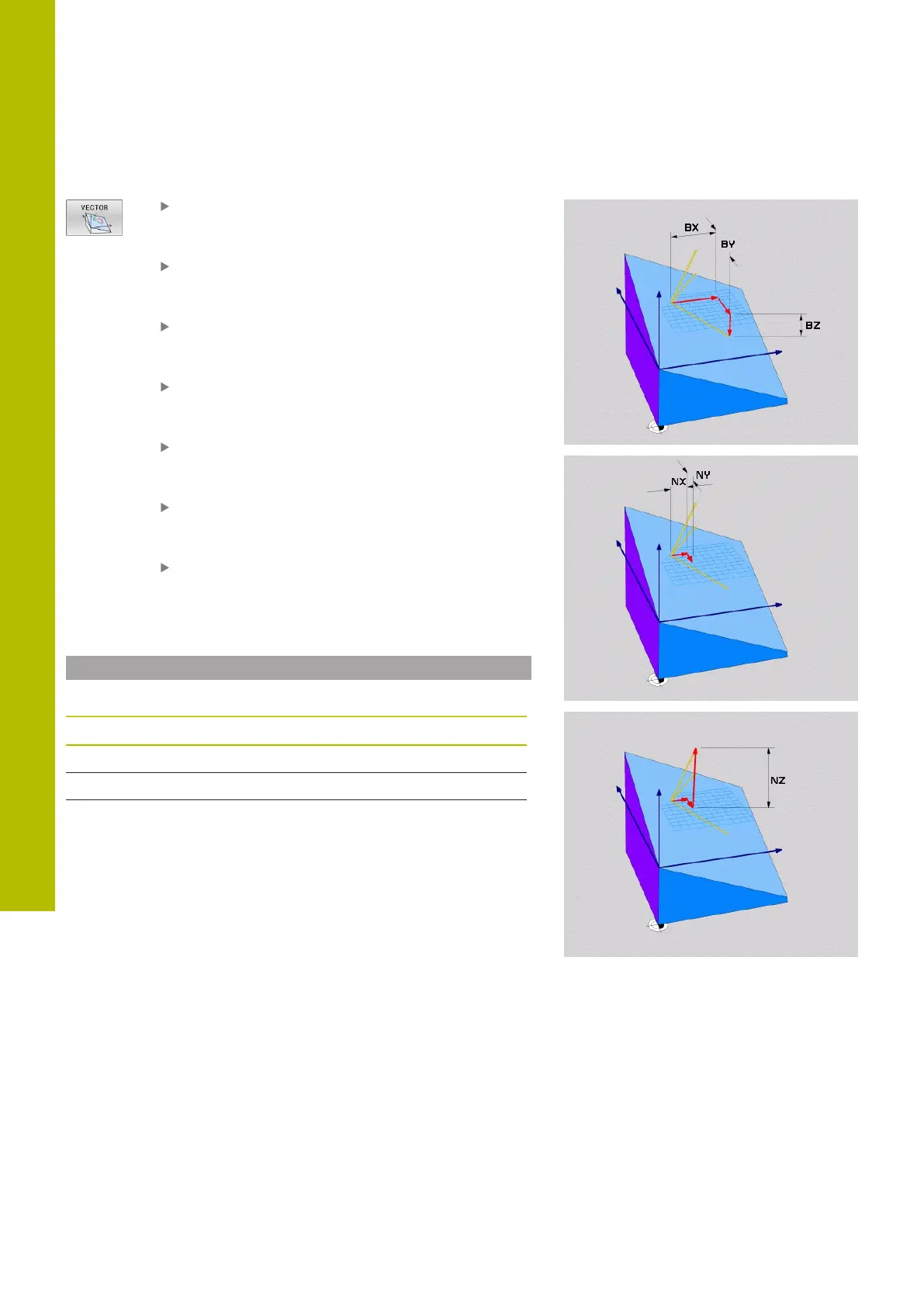

Input parameters
X component of base vector?: X component BX
of the base vector B; input range: from -9.9999999
to +9.9999999
Y component of base vector?: Y component BY
of the base vector B; input range: from -9.9999999
to +9.9999999
Z component of base vector?: Z component BZ
of the base vector B; input range: from -9.9999999
to +9.9999999
X component of normal vector?: X component
NX of the normal vector N; input range: from
-9.9999999 to +9.9999999
Y component of normal vector?: Y component
NY of the normal vector N; input range: from
-9.9999999 to +9.9999999
Z component of normal vector?: Z component
NZ of the normal vector N; input range: from
-9.9999999 to +9.9999999
Continue with the positioning properties
Further information: "Defining the positioning
behavior of the PLANE function", Page 450
Example
5 PLANE VECTOR BX0.8 BY-0.4 BZ-0.42 NX0.2 NY0.2 NZ0.92 ..
Abbreviations used
Abbreviation Meaning
VECTOR Vector
BX, BY, BZ Base vector : X, Y, and Z components
NX, NY, NZ Normal vector : X, Y, and Z components
444
