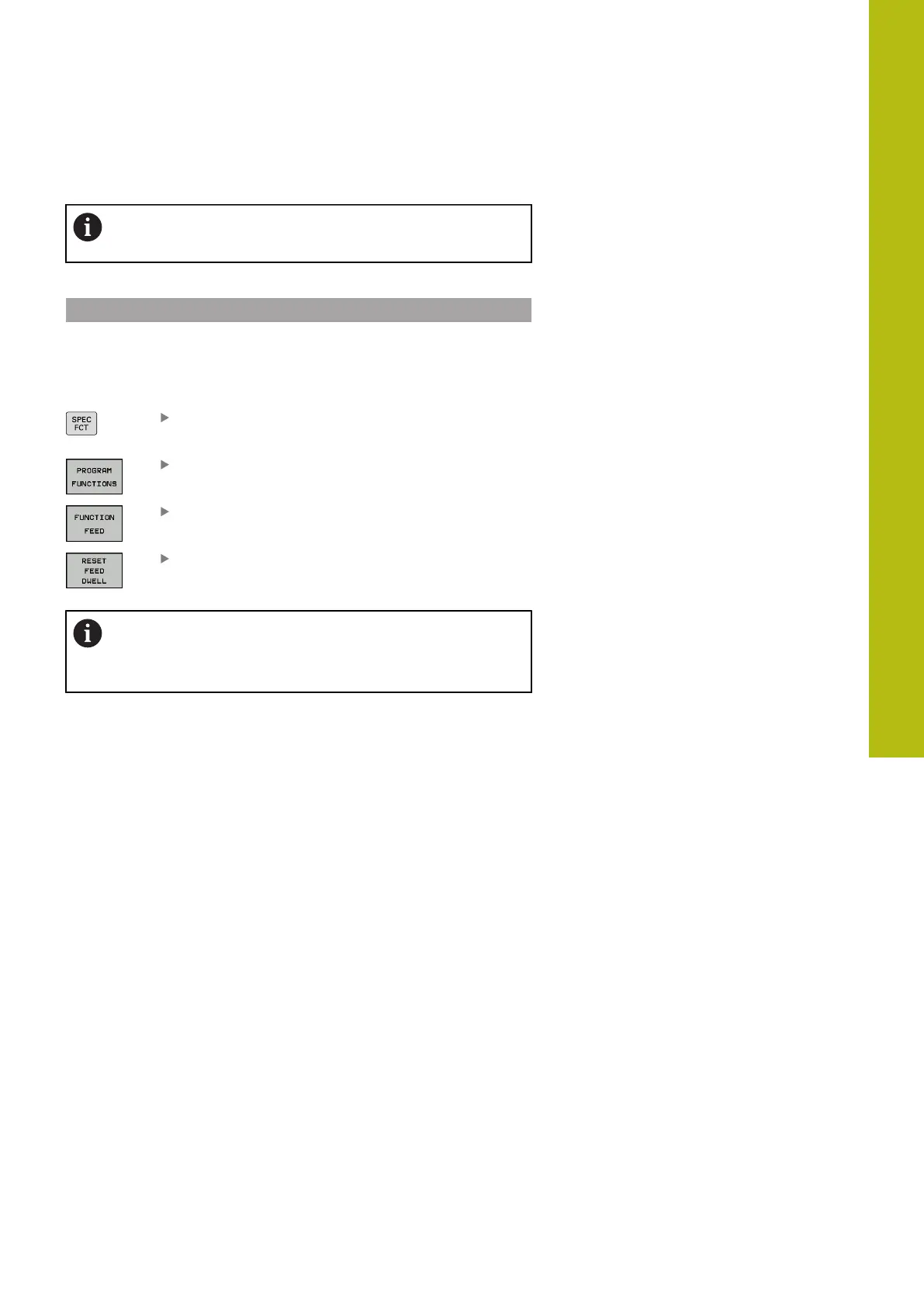

Special Functions | Dwell time FUNCTION FEED

HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

527

Resetting dwell time

Reset to the dwell time immediately following the

machining with chip breaking.

Example

18 FUNCTION FEED DWELL RESET

Use FUNCTION FEED DWELL RESET to reset the recurring dwell

time.

Proceed as follows for the definition:

Show the soft-key row with special functions

Press the PROGRAM FUNCTIONS soft key

Press the FUNCTION FEED soft key

Press the RESET FEED DWELL soft key

You can also reset the dwell time by entering D-TIME 0.

The control automatically resets the FUNCTION FEED

DWELL function at the end of a program.
