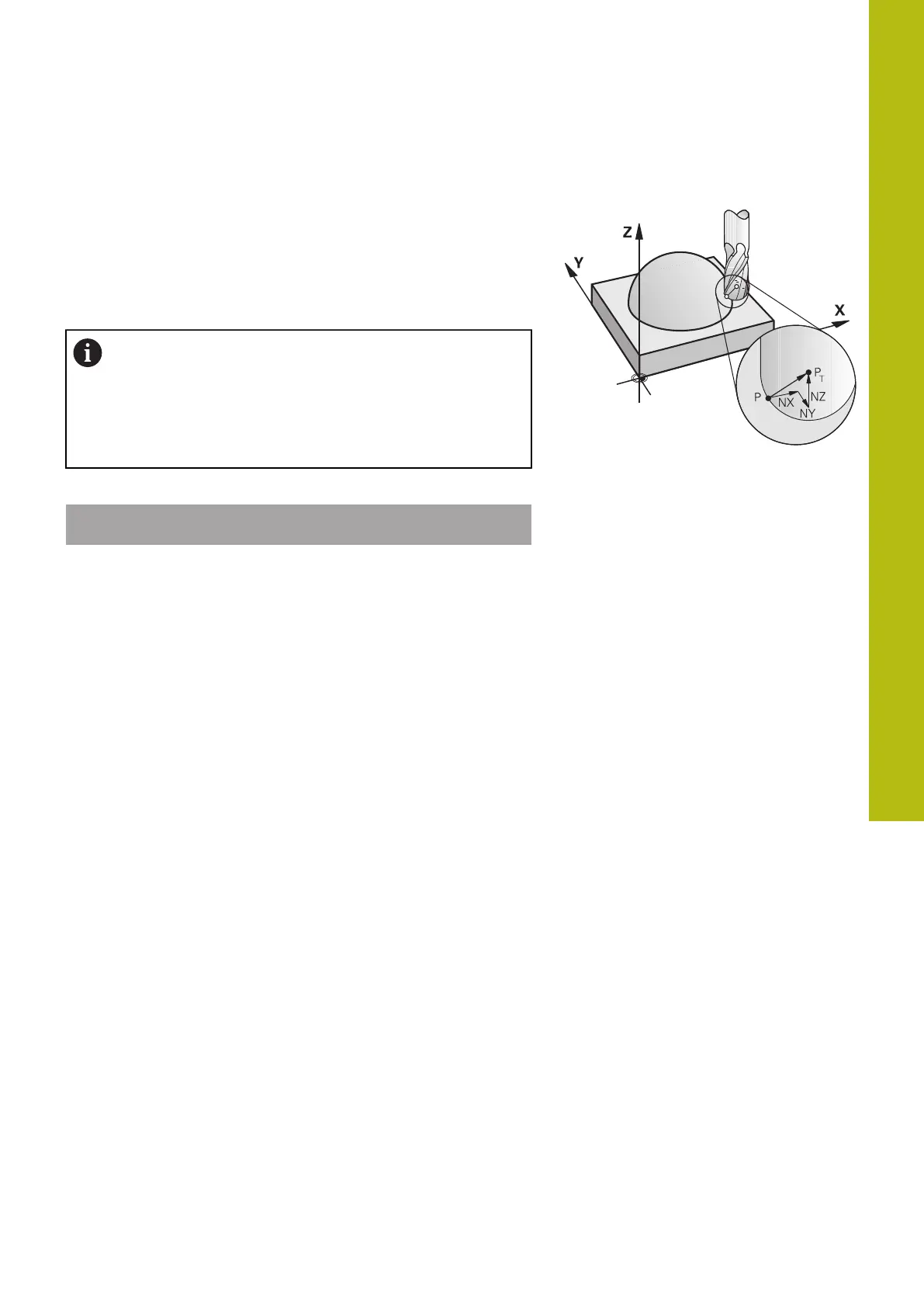

HEIDENHAIN TNC 620 Programming Station

Tables and overviews | System data
Group
name
Group number
ID...
System data
number NO....
Index IDX... Description
Activate machine parameter subfile
1020 13 QS parameter
no.
Has a machine parameter subfile with path
from QS number (IDX) been loaded?
1 = Yes
0 = No
Configuration settings for cycles
- Display the Spindle does not rotate error
message?
(CfgGeoCycle/displaySpindleErr)
0 = no, 1 = yes
1030 1
- Display the Check the algebraic sign for
depth! error message?
(CfgGeoCycle/displayDepthErr)
0 = no, 1 = yes
Data transfer between HEIDENHAIN cycles and OEM macros
0 Component monitoring: counter of the
measurement. Cycle 238 Measure machine
data automatically increments this counter.
1 Component monitoring: Type of measurement
–1 = No measurement. Writing of the value
with FN17 concludes Cycle 238.
0 = Circular test
1 = Waterfall diagram
2 = Frequency response
3 = Envelope curve spectrum
2 Component Monitoring: Index of the axis from
CfgAxes\MP_axisList
1
3 – 9 Component monitoring: further arguments
depend on the measurement
1031
100 - Component monitoring: optional names of
the monitoring tasks, as specified in System
\Monitoring\CfgMonComponent. After
completion of the measurement, the monitor-
ing tasks stated here are executed consecu-
tively. When assigning the input parameters,
remember to separate the listed monitoring
tasks by commas.
User settings for the user interface
1070 1 - Feed rate limit of soft key FMAX; 0 = FMAX is
inactive
Bit test
2300 Number Bit number This function checks whether a bit has been
set in a number. The number to be checked
is transferred as NR, the bit to be searched
for as IDX, with IDX0 designating the least
significant bit. To call this function for large
numbers, make sure to transfer NR as a Q
15
