Intel Cyclone 10 GX User Manual

2.6.2.2. How to Implement 10GBASE-R and 10GBASE-R with IEEE 1588v2 in
Intel Cyclone 10 GX Transceivers
You should be familiar with the 10GBASE-R and PMA architecture, PLL architecture,
and the reset controller before implementing the 10GBASE-R or 10GBASE-R with IEEE
1588v2 Transceiver Configuration Rules.
You must design your own MAC and other layers in the FPGA to implement the
10GBASE-R or 10GBASE-R with 1588 Transceiver Configuration Rule using the Native
PHY IP.
1. Instantiate the Intel Cyclone 10 GX Transceiver Native PHY IP from the IP
Catalog.
Refer to Select and Instantiate the PHY IP Core on page 17 for more details.
2. Select 10GBASE-R or 10GBASE-R 1588 from the Transceiver configuration
rule list located under Datapath Options, depending on which protocol you are
implementing.
3. Use the parameter values in the tables in Transceiver Native PHY Parameters for
the 10GBASE-R Protocol as a starting point. Or, you can use the protocol presets
described in Transceiver Native PHY Presets. Select 10GBASE-R Register Mode
for 10GBASE-R with IEEE 1588v2. You can then modify the settings to meet
your specific requirements.
4. Click Generate to generate the Native PHY IP core RTL file.

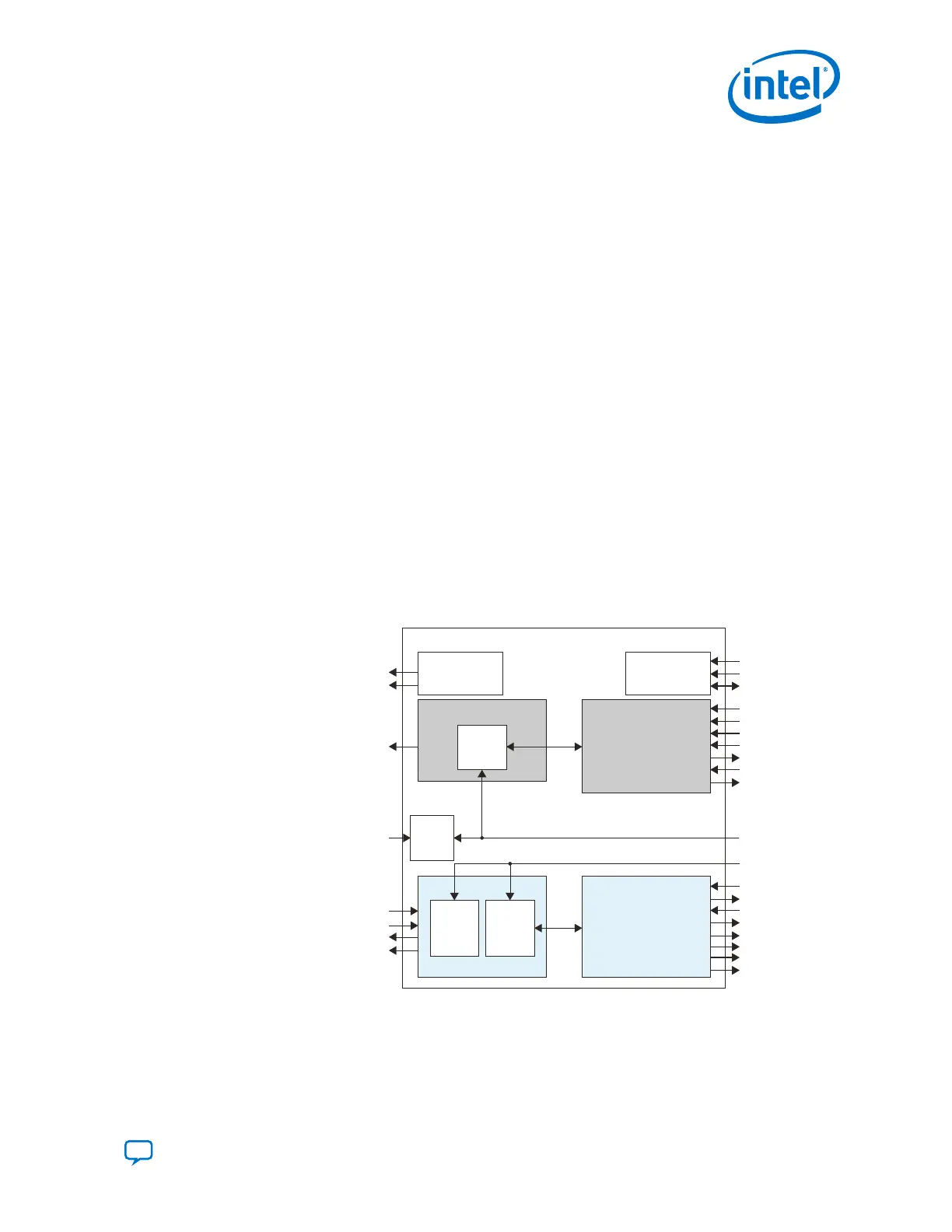

Figure 47. Signals and Ports of Native PHY IP Core for the 10GBASE-R and 10GBASE-R
with IEEE 1588v2
Generating the IP core creates signals and ports based on your parameter settings.
reconfig_reset
reconfig_clk
reconfig_avmm
tx_digitalreset
xgmii_tx_c[7:0] (2)
xgmii_tx_d[63:0] (2)
xgmii_tx_clk
1’b1 (1)
tx_control[17:0]
tx_parallel_data[127:0]
tx_coreclkin
tx_clkout
tx_enh_data_valid
tx_fifo_flags
Reconfiguration
Registers
TX Enhanced PCS
rx_clkout
rx_coreclkin
rx_enh_blk_lock
rx_enh_highber
rx_fifo_flags
RX Enhanced PCS
Nios Hard
Calibration IP
TX PMA
Serializer
RX PMA
DeserializerCDR
tx_cal_busy
rx_cal_busy
tx_serial_data
rx_serial_data
rx_parallel_data[127:0]
rx_control[19:0]
rx_cdr_refclk0
rx_is_lockedtodata
rx_is_lockedtoref
Clock
Generation
Block
tx_serial_clk0 (from TX PLL)
tx_analogreset
rx_analogreset
rx_digitalreset
xgmii_rx_clk
Cyclone 10 Transceiver Native PHY
Notes:
1. For 10GBASE-R with 1588 configurations, this signal is user-controlled.
2. For 10GBASE-R with 1588 configurations, this signal is connected from the output of TX FIFO in the FPGA fabric.
5. Instantiate and configure your PLL.
2. Implementing Protocols in Intel Cyclone 10 GX Transceivers
UG-20070 | 2018.09.24
Send Feedback
Intel
®
Cyclone
®
10 GX Transceiver PHY User Guide
103
