Intel Cyclone 10 GX User Manual

2.6.2.4. Native PHY IP Ports for 10GBASE-R and 10GBASE-R with IEEE 1588v2
Transceiver Configurations

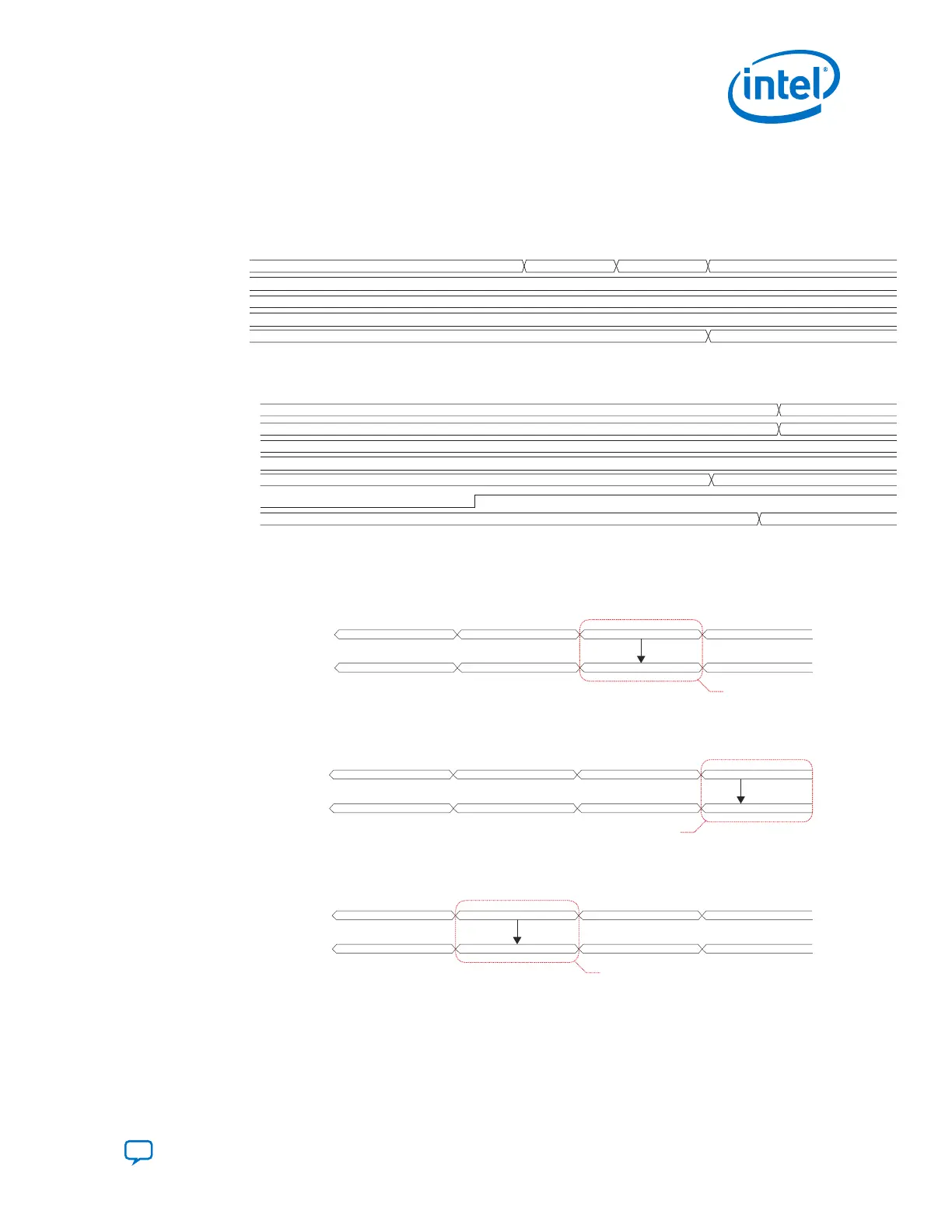

Figure 49. High BER
This figure shows the rx_enh_highber status signal going high when there are errors on the
rx_parallel_data output.
1122334455667788h 1122324455667788h 112233405566F788h 1122334455667788h
00h
1122334455667788h
00h
0h 1h
tx_parallel_data
tx_control
rx_parallel_data
rx_control
rx_enh_highber
Figure 50. Block Lock Assertion
This figure shows the assertion on rx_enh_blk_lock signal when the Receiver detects the block delineation.
0707070707070707h
FFh
0h 1h
0100009C0100009Ch 0707070707070707h
11h FFh
rx_ready
0h 1h
tx_parallel_data
tx_control
rx_parallel_data
rx_control
rx_enh_highber
rx_enh_block_lock
The following figures show Idle insertion and deletion.
Figure 51. IDLE Word Insertion
This figure shows the insertion of IDLE words in the receiver data stream.
Idle Inserted
Before Insertion
After Insertion
FD000000000004AEh BBBBBB9CDDDDDD9Ch 0707070707070707h 00000000000000FBh
FD000000000004AEh BBBBBB9CDDDDDD9Ch 00000000000000FBh AAAAAAAAAAAAAAAAh
rx_parallel_data[79:0]
rx_parallel_data[79:0]
Figure 52. IDLE Word Deletion
This figure shows the deletion of IDLE words from the receiver data stream.
00000000000004ADh 00000000000004AEh
0707070707FD0000h 000000FB07070707h
00000000000004ADh 00000000000004AEh
0707070707FD0000h
AAAAAAAA000000FBh
Idle Deleted
Before Deletion
After Deletion
rx_parallel_data[79:0]
rx_parallel_data[79:0]
Figure 53. OS Word Deletion
This figure shows the deletion of Ordered set word in the receiver data stream.
OS Deleted
Before Deletion
After Deletion
FD000000000004AEh 000000FBDDDDDD9Ch AAAAAAAA00000000h 00000000AAAAAAAAh
FD000000000004AEh DDDDDD9CDDDDDD9Ch 00000000000000FBh AAAAAAAAAAAAAAAAh
rx_parallel_data[79:0]
rx_parallel_data[79:0]
2. Implementing Protocols in Intel Cyclone 10 GX Transceivers
UG-20070 | 2018.09.24
Send Feedback
Intel
®
Cyclone
®
10 GX Transceiver PHY User Guide
107
