5 Motor control (MCTRL)
5.4 V/f characteristic control (VFCplus)
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 173
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

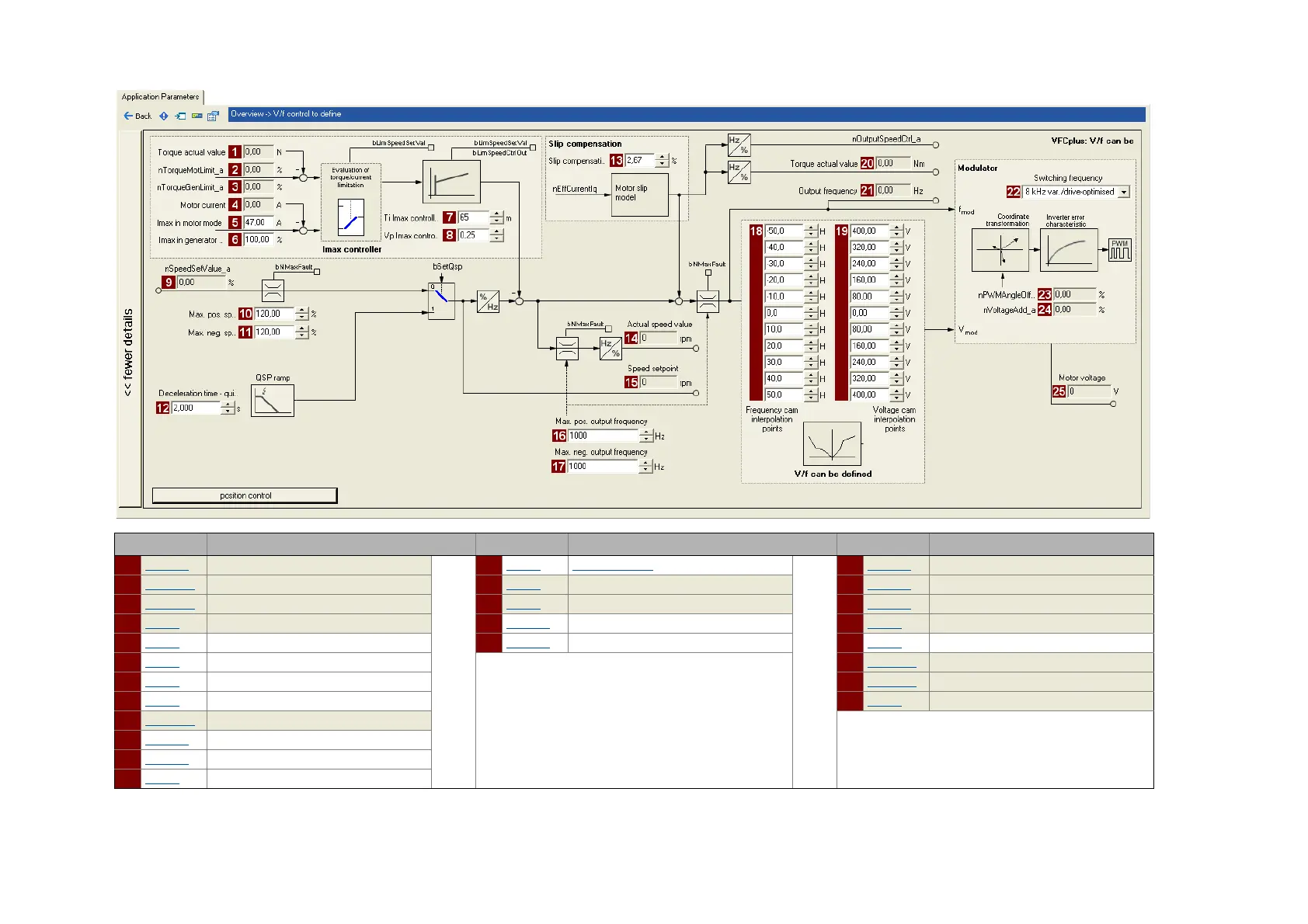

Parameters Info Parameters Info Parameters Info
1 C00056/2 Actual torque value 13 C00021 Slip compensation 18 C00967/x Frequency interpol. points
2 C00830/29 Limitation of torque in motor mode 14 C00051 Actual speed value 19 C00968/x Voltage interpol. points
3 C00830/28 Limitation of torque in generator mode 15 C00050 Speed setpoint 20 C00056/2 Actual torque value
4 C00054 Motor current 16 C00910/1 Max. pos. output frequency 21 C00058 Output frequency
5 C00022 Imax in motor mode 17 C00910/2 Max. neg. output frequency 22 C00018 Switching frequency
6 C00023 Imax in generator mode 23 C00830/32 MCTRL: nPWMAngleOffset_a
7 C00074 Ti Imax controller 24 C00830/31 MCTRL: nVoltageAdd_a
8 C00073 Vp Imax controller 25 C00052 Motor voltage
9 C00830/22 Speed setpoint
10 C00909/1 Max. pos. speed
11 C00909/2 Max. neg. speed
12 C00105 Decel. time - quick stop
