Lexmark CX310 Service Manual

For CX310 models:
• Controller board
• Operator panel with UICC card
For CX410 and CX510 models:
• Controller board
• UICC card
Warning—Potential Damage: Never install and remove components listed above as a method of troubleshooting
components. Once a component has been installed in a printer, and the printer is powered on, it cannot be used in
another printer. It must be returned to the manufacturer.
For CX310 and CX410 models:
Actions Yes No
Step 1
Enter the Diagnostics Menu (turn the printer off, press and hold 3 and 6,
turn the printer on, and then release the buttons when the installed
memory and processor speed displays).
Perform the Panel Test. See
“Panel Test” on page 199.
Did all the pixels come on?
Go to step 2. Replace the operator
panel. See
“Operator
panel removal (for
CX310 and CX410
models only)” on
page 276.
Step 2
Turn the printer off.
Remove the rear cover. See
“Rear cover removal” on page 307.
Remove the operator panel. See
“Operator panel removal (for CX310 and
CX410 models only)” on page 276.

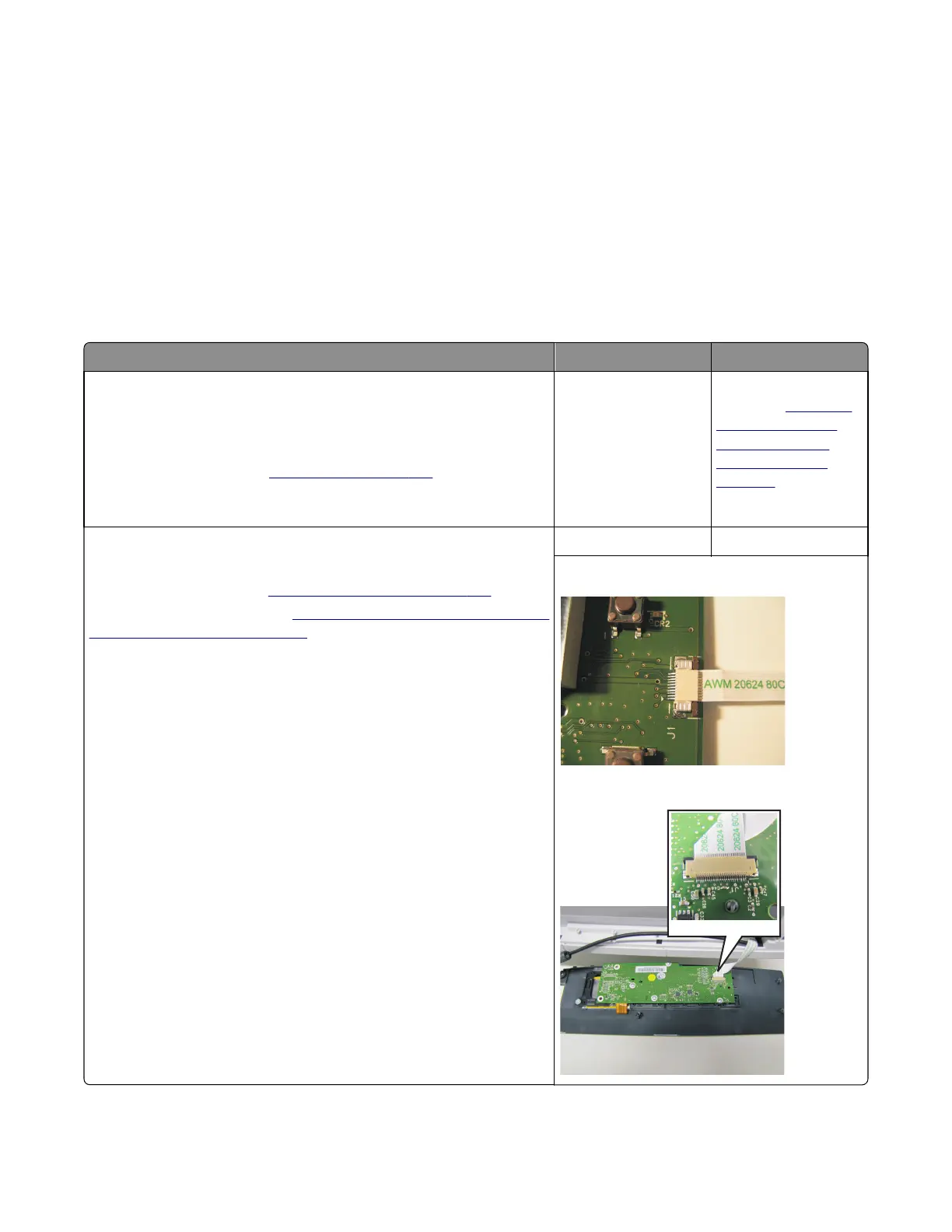

Is the operator panel cable properly installed at JLCD1 on the controller
board and the operator panel assembly?
Note: JLCD1 is the ribbon cable connector on the right side facing the
controller board.
Go to step 3. Reinstall the cable.
CX310
CX410
7527
Diagnostic information
129

Lexmark CX310 Specifications

General

Print Technology	Laser
Scan Technology	CIS
Scan Resolution	Up to 600 x 600 dpi
Duplex Printing	Manual
Display	2.4-inch color LCD
Processor Speed	800 MHz
Standard Memory	256 MB
Fax Speed	33.6 Kbps
Operating System Compatibility	Windows, Mac OS, Linux
Print Resolution	Up to 600 x 600 dpi
Connectivity	USB, Ethernet
Standard Paper Input	250 sheets
Scanner Type	Flatbed, ADF
Fax Resolution	300 x 300 dpi
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Copy Speed	Up to 22 cpm (black), Up to 18 cpm (color)
