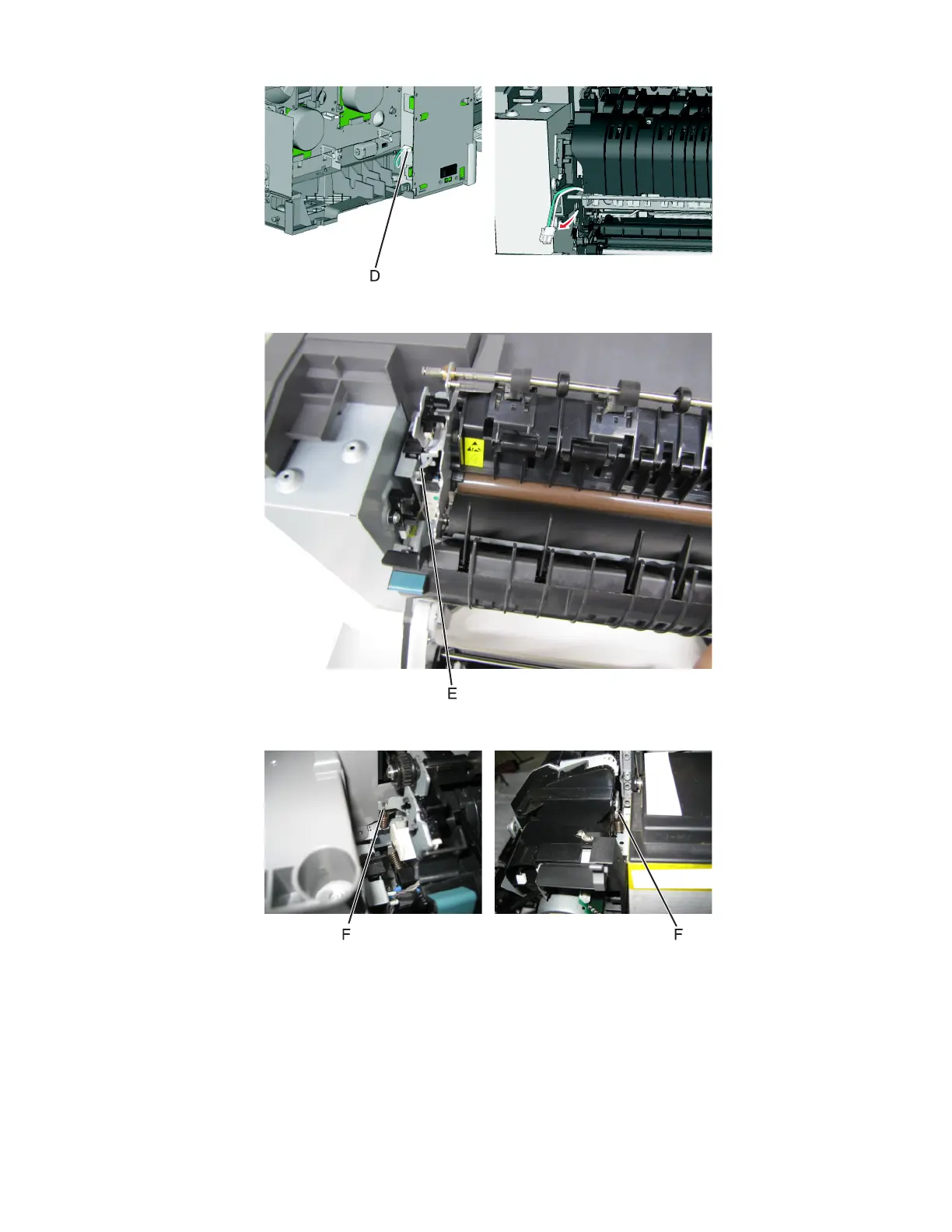

8 Disconnect the cable (E) from the bin‑full/narrow media sensor, and unroute the cable from its retainer.

9 Unhook the springs (F) from both sides of the fuser.

10 Disconnect the thermistor cables (G), and pull them over the retainer.

7527

Repair information

294
