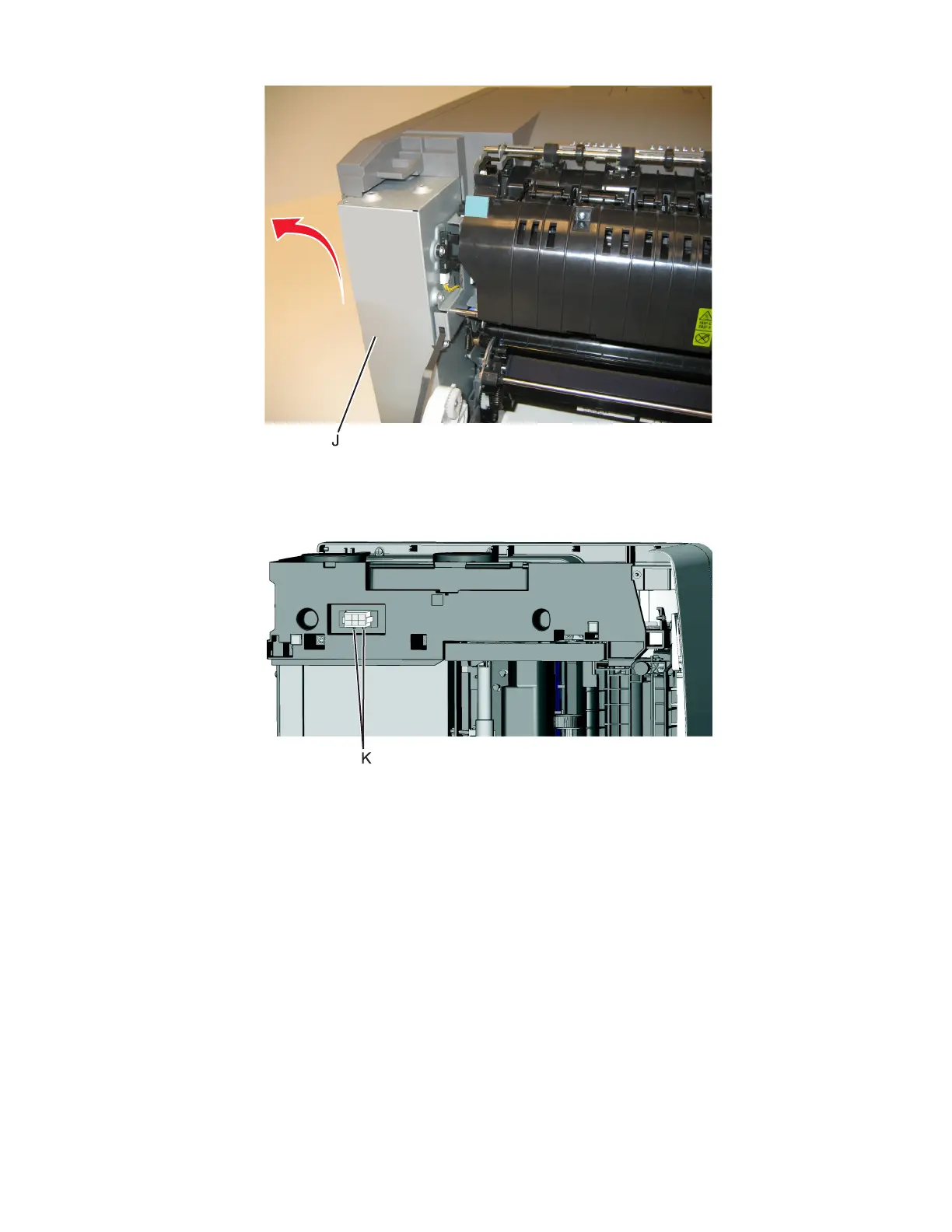

15 Place the printer on its right side.

16 Remove the tray 2 connector (K) by pinching the tabs together and pushing the connector into the printer.

7527

Repair information

296
