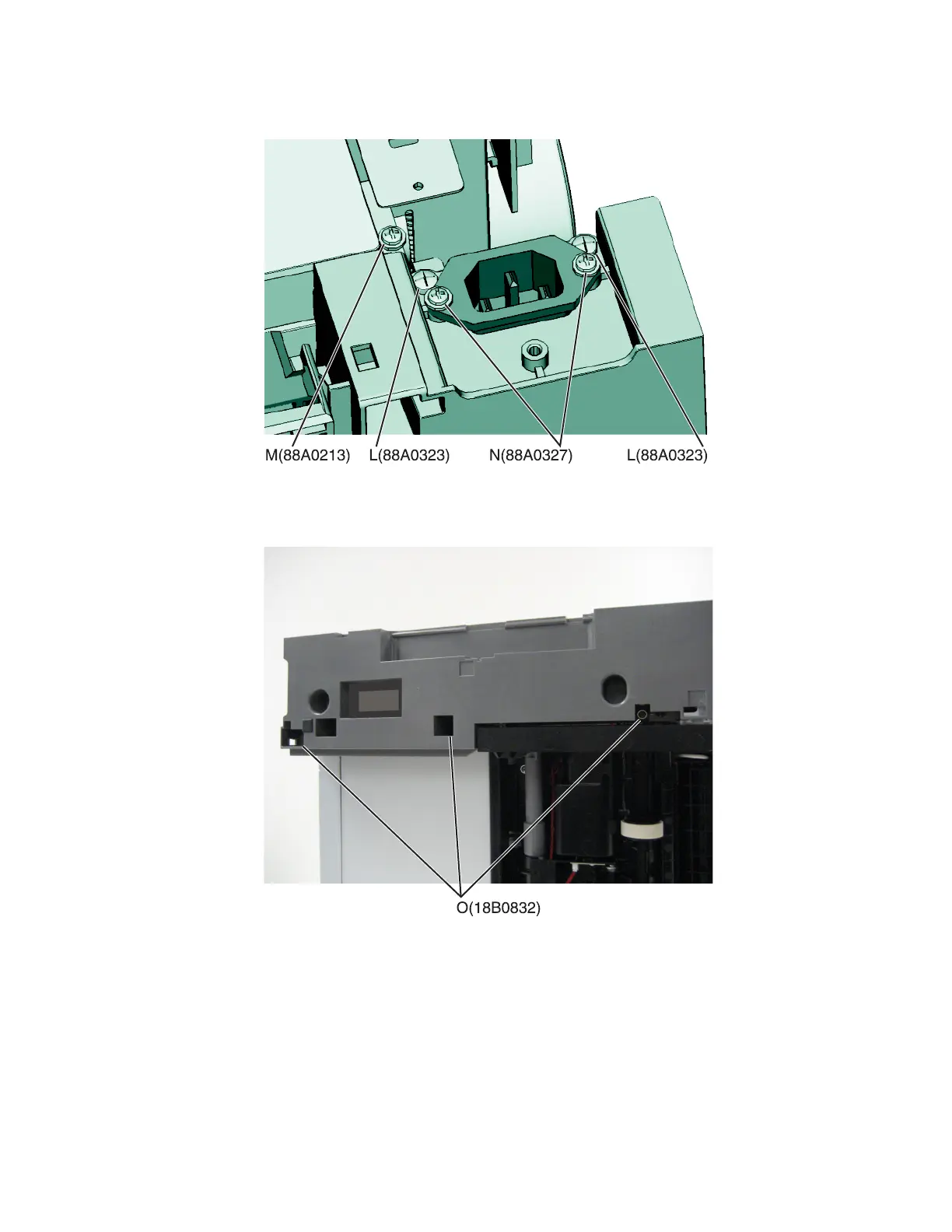

17 At the rear of the printer, remove the two screws (L) from the AC receptacle, and the ground screw (M), and the
two screws (N) holding the plastic shield.
18 Remove the AC receptacle from the left lower frame.
19 Remove the three screws (O) securing the left lower frame.
7527
Repair information
297
