Lexmark CX310 Service Manual

200.xx Input (S2) sensor service check
The input (S2) sensor is part of the paper pick motor drive assembly FRU, and is not available otherwise.
Actions Yes No
Step 1
Open the front door to access the jam area, and then remove the jammed
page or pages.
Does this solve the problem?
The problem is solved. Go to step 2.
Step 2
Remove tray 1.

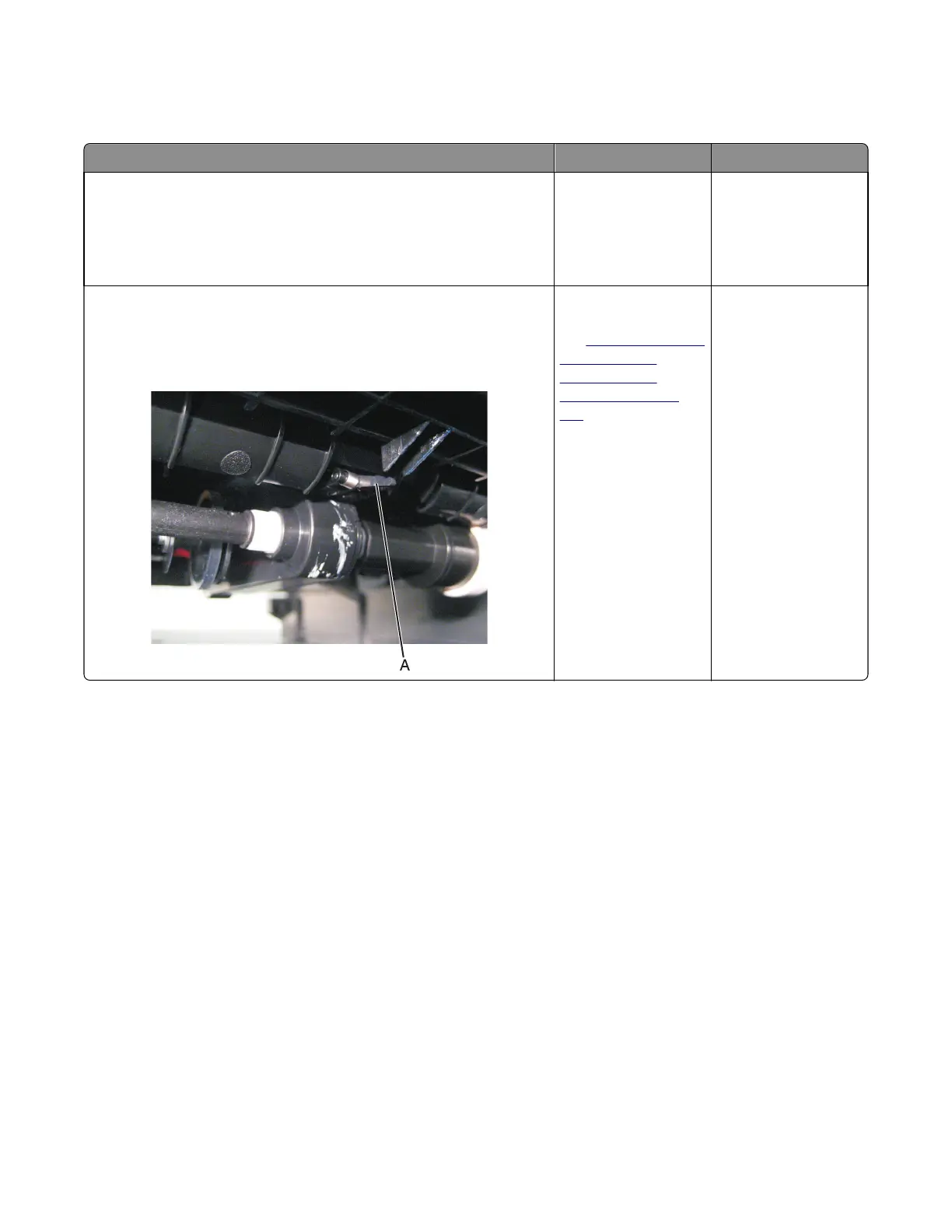

Is the input S2 sensor flag (A) damaged?
Replace the paper pick
motor drive assembly.
See
“Paper pick motor
drive assembly
(standard tray)
removal” on page
305.
Go to step 3.
7527
Diagnostic information
51
